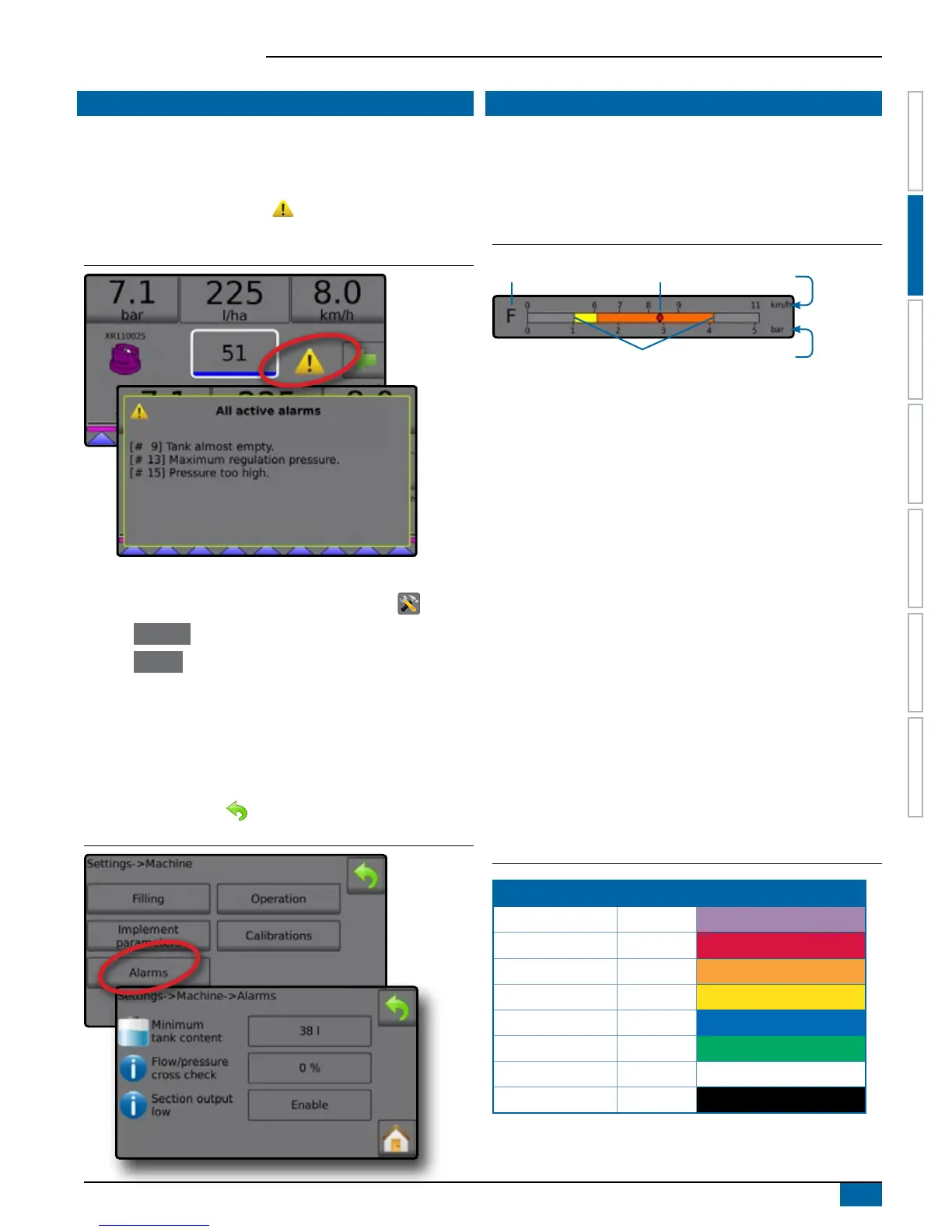

ALARM WARNING
If there is an active alarm, an Alarm warning icon will appear next to
the Tank. For a list of Alarm message codes see Appendix C – Alarm
Congurations.
1. Press ALARM WARNING icon to display a list all active
alarms.
Figure 2-20: Active Alarm Warning List
Set Up Alarms
1. From the Home screen, press the SETTINGS button .
2. Press Machine .
3. Press Alarms .
4. Press setting value to adjust settings as needed:
◄Minimum Tank Content
◄Flow/Pressure Cross Check (alarm active only when both a
Flow Sensor and Liquid Pressure Sensor are active)
◄Section Output Low
5. Press RETURN arrow to return to the Machine screen.
Figure 2-21: Alarms
PRESSURE GAUGE
The Pressure Gauge displays current pressure compared with the
recommended pressure range. Pressure sensor options are used to
enter the sensor manufacturer maximum pressure rating and to set
high and low user-determined pressure alarms.
Figure 2-22: Pressure Gauge Example
Speed
Pressure
Current Working
Pressure
Recommended Pressure Range
Current Droplet Size
Recommended Pressure Range
Displays the recommended pressure range for the selected tip. The
pressure range will change depending upon the selected tip, Target
Application Rate (including boost/step percent increase/decrease)
and Working Speed.
IMPORTANT! Always refer to the recommended pressure range as
failure to do so may result in uneven spray patterns.
Current Working Pressure
Displays the current working pressure.
NOTE: This pressure range should not exceed the recommended
pressure range.
IMPORTANT! Always refer to the recommended tip pressure values
when setting tip pressure.
Current Droplet Size
A single tip can produce different droplet size classications at
different pressures. The colors displayed in the recommended
pressure range are directly associated with the current droplet
sizes. The droplet size displays as one (1) of eight (8) classication
categories.
Table 2-1: Droplet Size Chart
Category Symbol Color Code
Extremely Fine XF Violet
Very ne VF Red
Fine F Orange
Medium M Yellow
Coarse C Blue
Very Coarse VC Green
Extremely Coarse XC White
Ultra Coarse UC Black
