Radion 8140 Automatic Sprayer Control
SETTINGS
Regulation Details
Regulation Details adjusts regulation valve controls including establishing the following: minimum and maximum pressure, valve time,
minimum voltage, deadband, valve capacity, start delay, manual speed restrictor plate ow and Default Valve Position.
SETTINGS MENU STRUCTURE
| | | |
Job Parameters Machine OEM Diagnostics
1. From the Home screen, press the SETTINGS button .
2. Press OEM .
3. Press Regulation Details .
4. Press setting value to adjust settings as needed:
◄Minimum Regulation Pressure
◄Maximum Regulation Pressure
◄Regulation Valve Time
◄Minimum Regulation Voltage
◄Regulation Deadband
◄Regulation Valve Capacity
◄Regulation Start Delay
◄Manual Regulation Speed
◄Restrictor Plate Flow
◄Default Valve Position
Sensor Presence
Implement Parameters
Valve Setup
Tank Setup
Regulation Details
Minimum Regulation Pressure
Maximum Regulation Pressure
Regulation Valve Time
Minimum Regulation Voltage
Regulation Deadband
Regulation Valve Capacity
Regulation Start Delay
Manual Regulation Speed
Restrictor Plate Flow
Default Valve Position
Clear Totals
Import/Export Calibrations
5. Press RETURN arrow to return to the OEM screen.

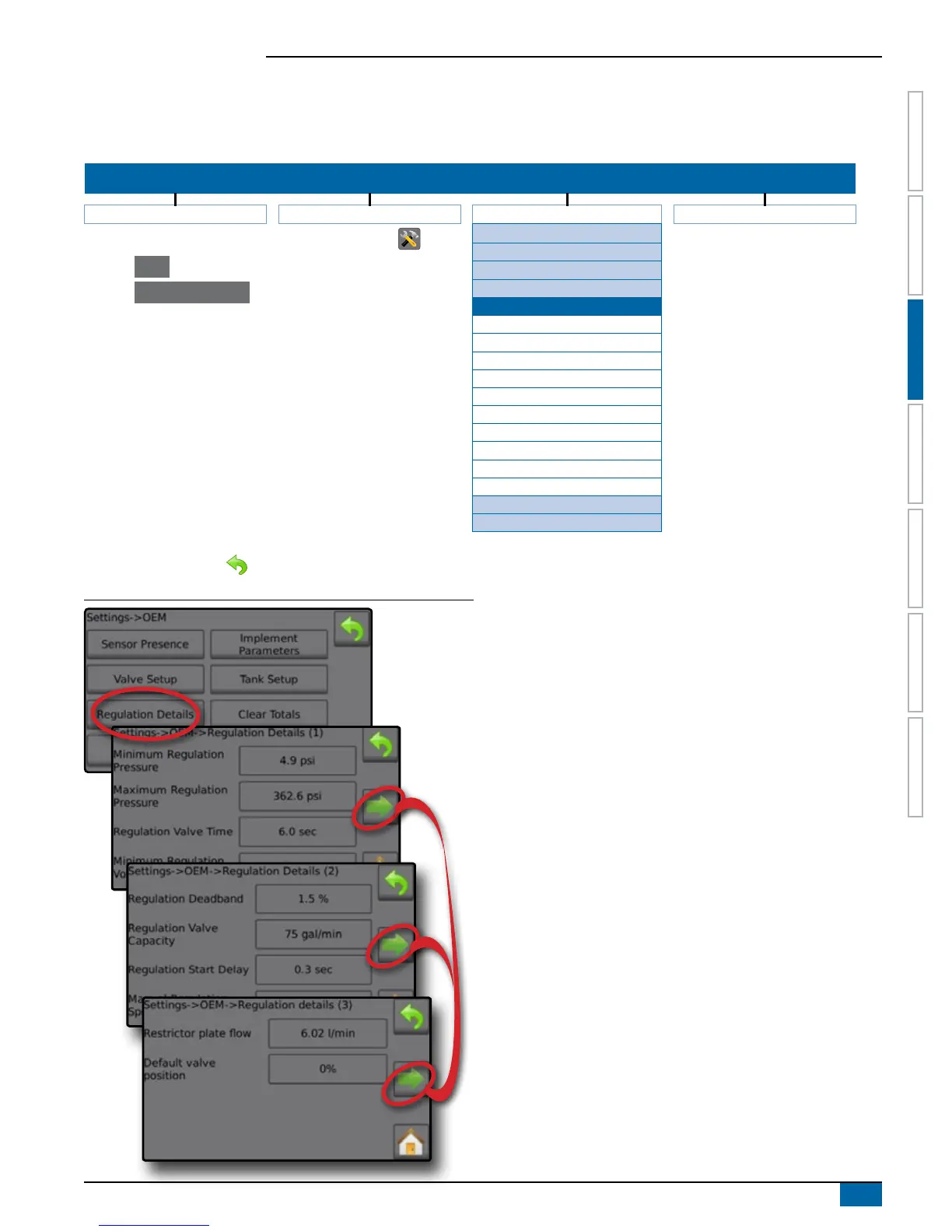

Figure 3-44: Regulation Details Screen
Screen (1)
Minimum Regulation Pressure
Minimum Regulation Pressure establishes the level that the working
pressure will not drop below, even if a lower pressure is required by
the regulation system (the controller). If the actual pressure on the
sprayer becomes lower than this value, the regulating system will
continue to increase the pressure until the minimum pressure level
has been reached. Range is 0.0 to 29.0 psi / 2.0 bar.
Maximum Regulation Pressure
Maximum Regulation Pressure establishes the level that the working
pressure will not rise higher than, even if a higher pressure can
be obtained by the regulation system (the controller). If the actual
pressure on the sprayer becomes higher than this value, the regulating
system will continue to decrease the pressure until the maximum
pressure has been reached. Range is 0.0 to 725.2 psi / 50.0 bar.
Regulation Valve Time
Regulation Valve Time is the time in seconds for the regulation
valve to go from fully closed to fully open (or vice versa). Range is
1.0 to 60.0 seconds.
NOTE: The time is determined by the type of regulation valve used
and should be set to the recommendations included with the
regulation valve.
Minimum Regulation Voltage
Minimum Regulation Voltage is the lowest voltage at which the
regulation valve will start to move. The controller uses variable voltage
to control the valve; the closer the actual rate is to the target rate, the
lower the voltage sent to the valve will be. The minimum voltage must
be found when the valve is under pressure, as this affects the force
required to move the valve. Range is 0.0 to 12.0 volts.
