Radion 8140 Automatic Sprayer Control
SETTINGS
Valve Setup
The Valve Setup establishes the Regulation Valve Type, Section Valve Type and Section Valve Behavior.
SETTINGS MENU STRUCTURE
| | | |
Job Parameters Machine OEM Diagnostics
Sensor Presence
1. From the Home screen, press the SETTINGS button .
2. Press OEM .
3. Press Valve Setup .
4. Press setting value to adjust settings as needed:
◄Regulation Valve Type
◄Section Valve Type
◄Section Valve Behavior
5. Press RETURN arrow
to return to the OEM screen.
Implement Parameters
Valve Setup
Regulation Valve Type
Section Valve Type
Section Valve Behavior
Tank Setup
Regulation Details
Clear Totals
Import/Export Calibrations

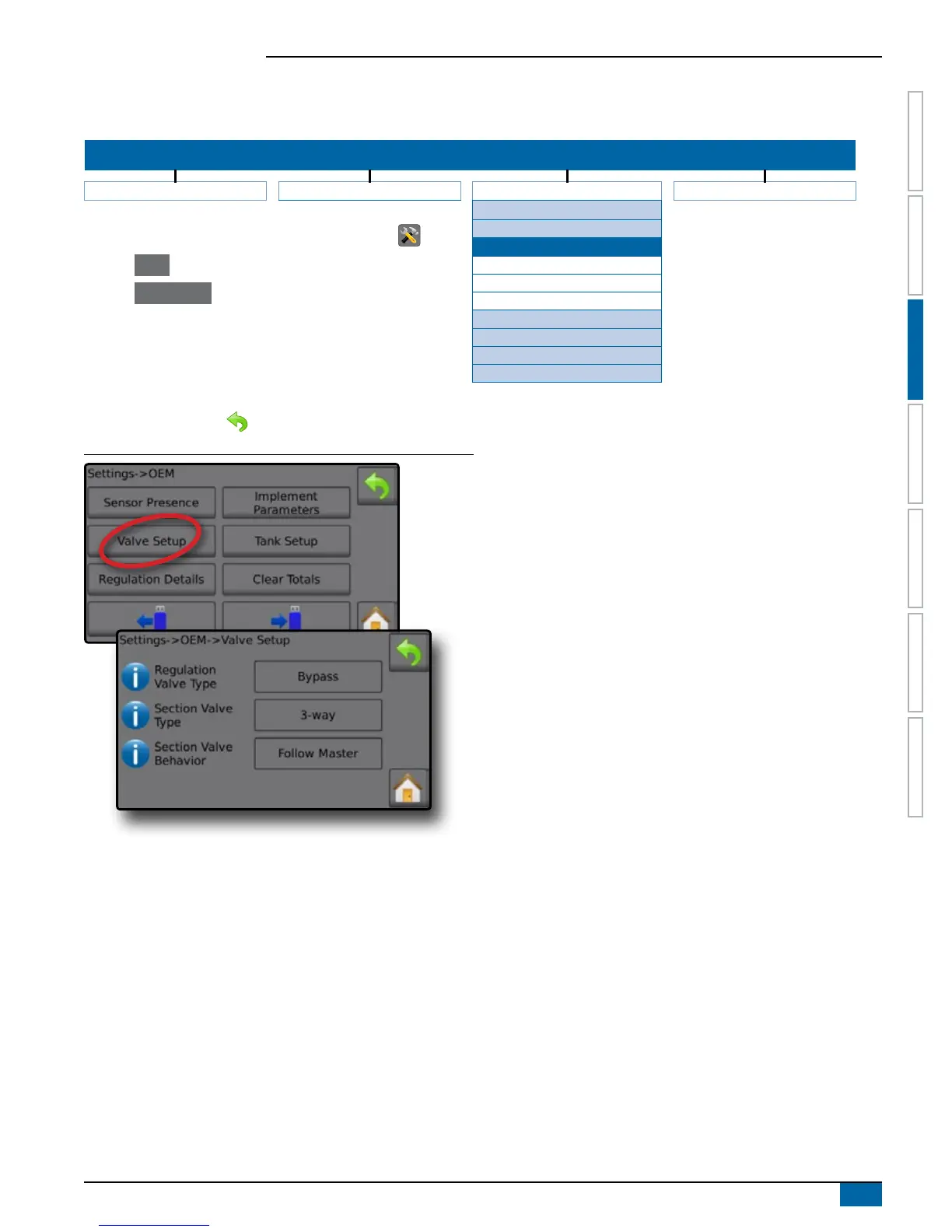

Figure 3-42: Valve Setup Screen
Regulation Valve Type
Regulation Valve Type sets the valve type to either “Throttle” or
“Bypass”. Throttle is also known as "In-line".
Section Valve Type
Section Valve Type sets the valve to either “2-way” or “3-way”.
Section Valve Behavior
Section Valve Behavior establishes if the sections are powered
independently of the master switch or if the sections are powered to
follow the master switch.
