Radion 8140 Automatic Sprayer Control
SETTINGS
MACHINE
Machine congures machine settings. Options include Filling, Operation, Implement Parameters, Calibrations and Alarms.

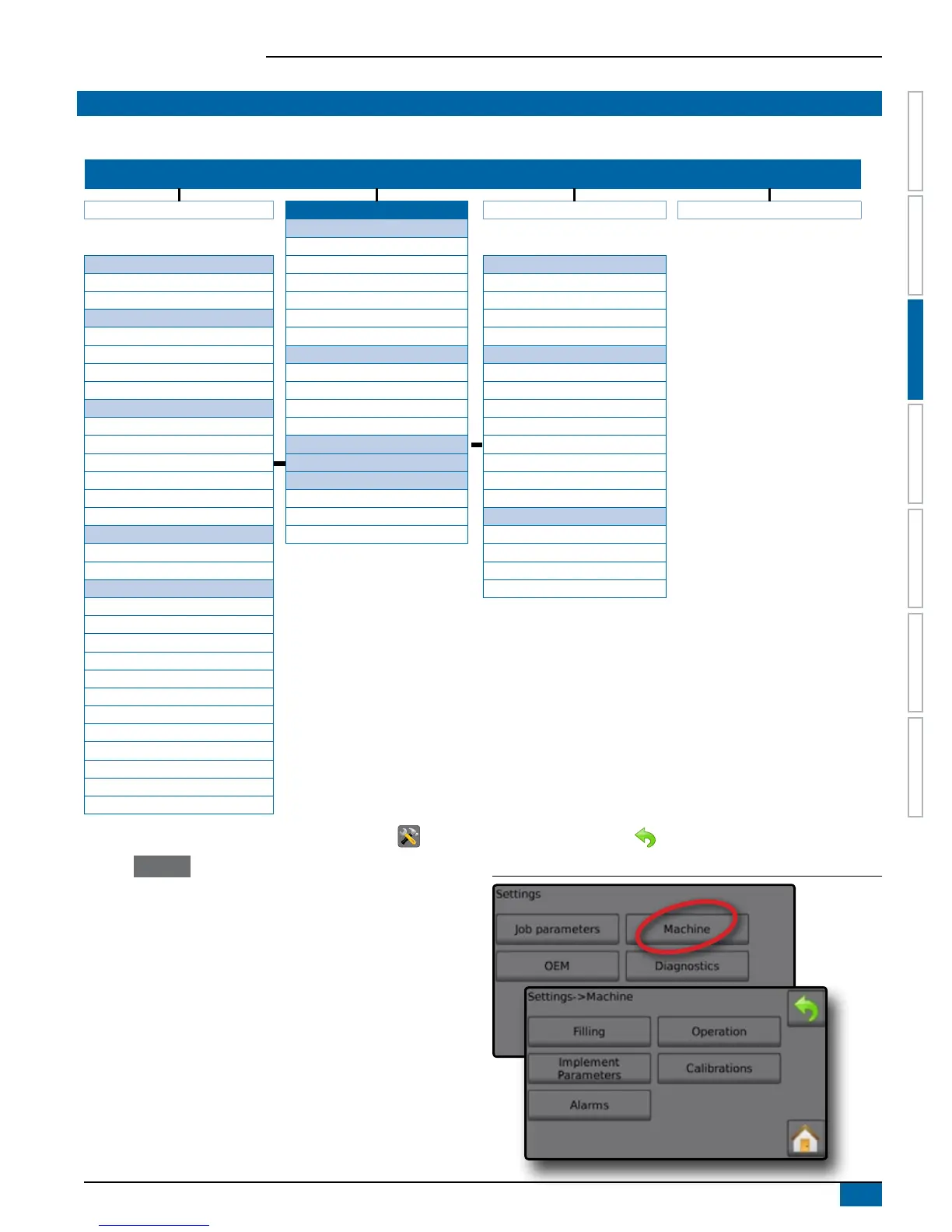

SETTINGS MENU STRUCTURE
| | | |
Job Parameters Machine OEM Diagnostics
Filling
Actual Content
Implement Speed Sensor *Full Tank Section Conguration
Calibration Number Density Type Section Number
Automatic Calibration Density Factor Number of Tips
*Flow Sensor Desired Content Copy Section
Calibration Number Automatic Filling Section Width
Low Flow Limit Operation Tip Preset Setup
High Flow Limit Application Rate Step Tip Preset
Automatic Calibration Speed Source Tip Series
*Liquid Pressure Sensor Simulate Speed Tip Capacity
No Pressure Minimum Speed Factory Settings
No Pressure Calibration Implement Parameters
Low Pressure Limit
Maximum Pressure
Calibrations High Pressure Limit
Maximum Pressure Alarms Reference Flow
Reference Pressure Minimum Tank Content Reference Pressure
Automatic Calibration Flow/Pressure Cross Check Regulation Parameters
*Fill Flow Sensor Section Output Low Course Value Calibration
*Menu settings directly relate to
fitted OEM equipment
Calibration Number Fine Value Calibration
Automatic Calibration Tip Spacing
*Tank Level Sensor Regulation Mode
Empty Tank
Automatic Calibration
►Calibrations – establishes either manual/automatic settings
of the following sensors:
◄ Implement Speed Sensor
◄ Flow Sensor
◄ Liquid Pressure Sensor
◄ Fill Flow Sensor
◄ Tank Level Sensor
►Alarms – establishes alarms on/off and sets their trigger levels
Minimum Tank Level
Minimal Tank Level
Automatic Calibration
Maximum Tank Level
Maximum Tank Level
Automatic Calibration
Tank Shape
Maximum Tank Level
Start Calibration
Import/Export Calibrations
1. From the Home screen, press the SETTINGS button .
2. Press Machine .
3. Select from:
►Filling – establishes the amount of actual and desired material
in the tank and the density of that material
►Operation – establishes application rate step, speed source,
simulated speed and minimum speed
►Implement Parameters
◄ Section Conguration – sets the number of tips on the boom
which determines the spraying width during application
◄ Tip Preset Setup – establishes options for up to ve (5)
tips including series, capacity, low/high pressure limits,
reference ow and reference pressure
◄ Regulation Parameters – adjusts valve calibration and tip
spacing and selects a regulation mode
4. Press RETURN arrow to return to the main Settings screen.
Figure 3-4: Machine
