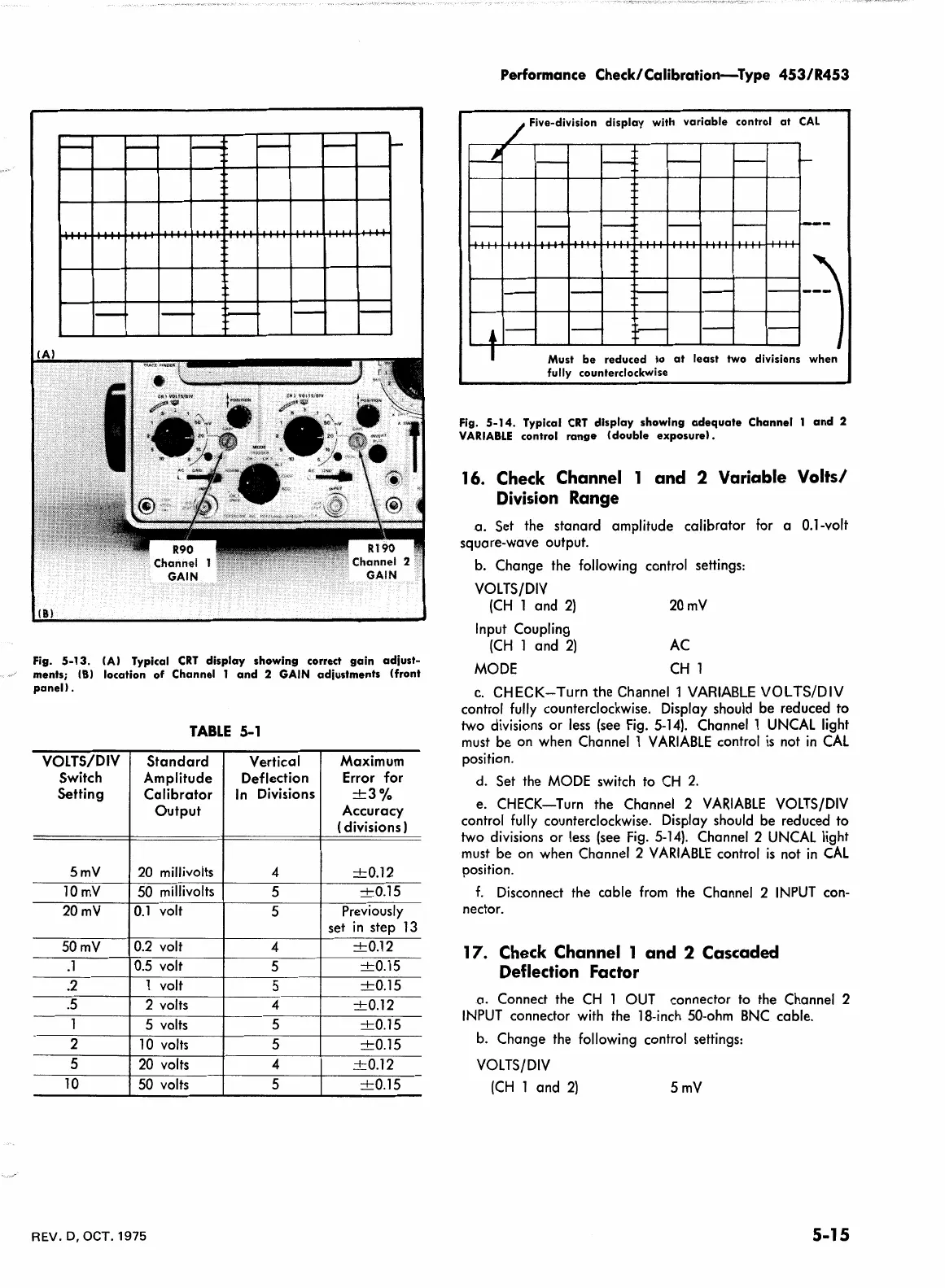

Fig.
5-13. (A) Typical CRT display showing correct gain adjust-
ments; (B) location of Channel 1 and 2 GAIN adjustments (front
panel>.
TABLE 5-1
VOLTS/DIV Standard Vertical
Maximum
Switch Amplitude
Deflection
Error for
Setting
Calibrator
In Divisions +3%
Output
Accuracy
(divisions)
SmV 20 millivolts
4
+0.12
lOmV 50 millivolts
5
-t-0.15
20mV
0.1 volt
5
Previously
set in step 13
50mV 0.2 volt
4
+0.12
.1
0.5 volt
5
-t-0.15
.2 1 volt
5
-t-0.15
.5 2 volts
4 ±0.12
1
5
volts
5
-t-0.15
2
10 volts
5
+0.15
5 20 volts
4
+0.12
10 50 volts
5
+0.15
REV. D, OCT. 1975
Performance Check/Calibration-Type 453/R453
Five-division display with variable control at CAL
Must be reduced to at least two divisions when
fully counterclockwise
Fig.
5-14. Typical CRT display showing adequate Channel 1 and 2
VARIABLE control range (double exposure).
16. Check Channel 1 and 2 Variable Volts/
Division Range
.a. Set the stanard amplitude calibrator for a 0.1-volt
square-wave output.
b. Change the following control settings:
VOLTS/DIV
(CH 1 and 2) 20 mV
Input Coupling
(CH 1 and 2)
MODE
AC
CH 1
c. CHECK-Turn the Channel 1 VARIABLE VOL TS/DIV
control fully counterclockwise. Display should be reduced to
two divisions or less (see Fig. 5-14). Channel 1 UNCAL light
must be on when Channel 1 VARI ABLE control is not in CAL
position.
d. Set the MODE switch to CH 2.
e. CHECK-Turn the Channel 2 VARIABLE VOLTS/DIV
control fully counterclockwise. Display should be reduced to
two divisions or less (see Fig. 5-14). Channel 2 UNCAL light
must be on when Channel 2 VARIABLE control is not in CAL
position.
f. Disconnect the cable from the Channel 2 INPUT con-
nector.
17. Check Channel 1 and 2 Cascaded
Deflection Factor
a. Connect the CH 1 OUT connector to the Channel 2
INPUT connector with the 18-inch 50-ohm BNC cable.
b. Change the following control settings:
VOLTS/DIV
(CH 1 and 2)
5mV
5-15
