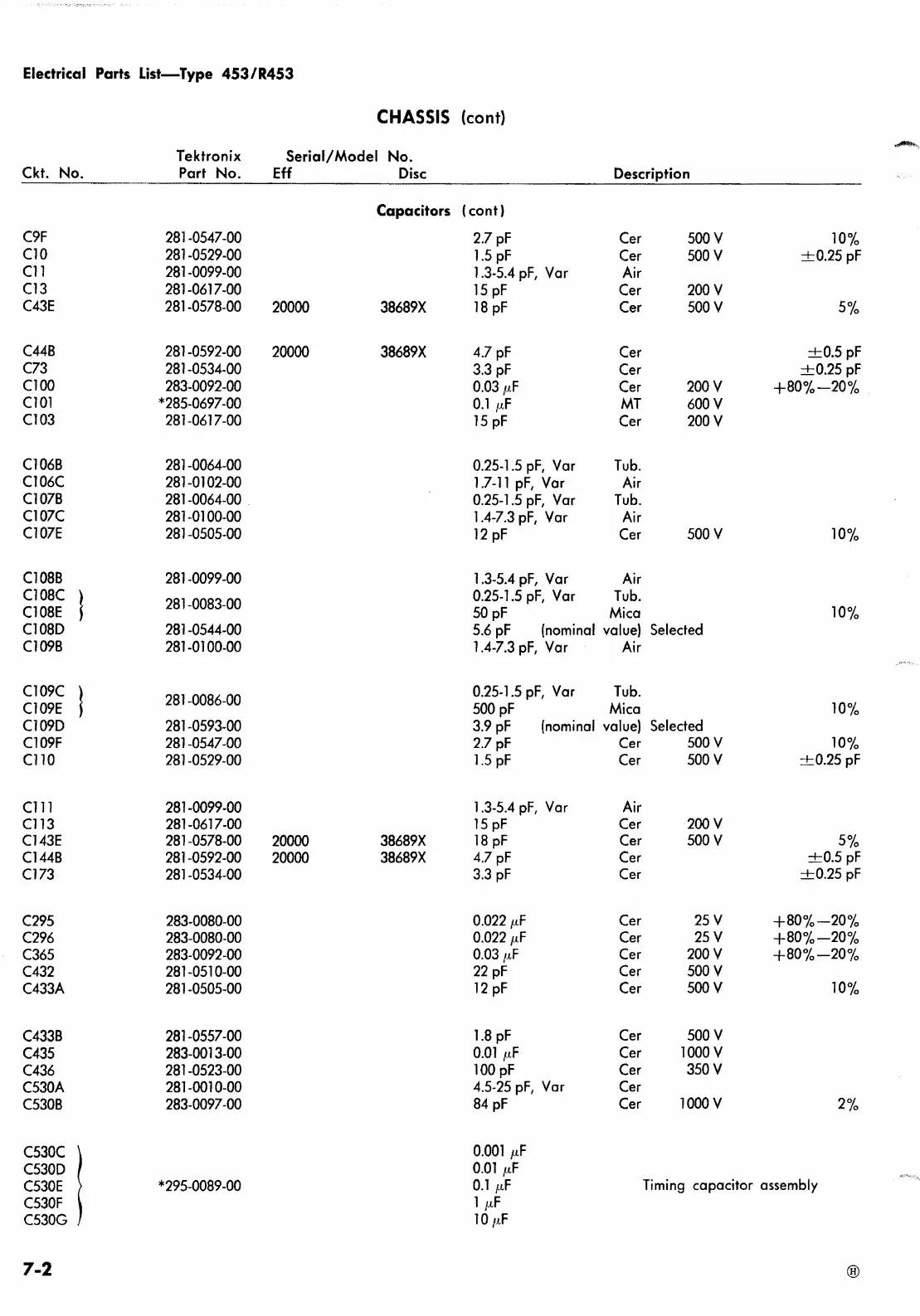

Electrical Parts List-Type 453/R453
CHASSIS
(cont)
Tektronix
Serial/Model No.
Ckt. No. Part No.
Eff
Capacitors
(cont)
C9F
281 -0547-00
2.7 pf
Cer
SOOY
10%
C10
281-0529-00
1.5 pF Cer
SOOY
+0.25 pf
Cll
281-0099-00
l.3-5.4 pF, Var Air
Cl3
281-0617-00
15 pf Cer 200V
C43E
281-0578-00
20000 38689X 18 pf
Cer
SOOY
5%
C44B
281-0592-00
20000
38689X
4.7 pF
Cer
+O.S pf
C73
281-0534-00
3.3 pf Cer
+0.25 pf
ClOO
283-0092-00
0.03 µF
Cer 200V
+80%-20%
ClOl
*285-0697-00
0.1 µF MT
600V
Cl03
281-0617-00
15 pf Cer 200V
C106B
281-0064-00
0.25-1.S pF, Var Tub.
C106C
281-0102-00
1.7-11 pF, Var Air
Cl07B
281-0064-00
0.25-1.5 pf, Var Tub.
C107C
281-0100-00
1.4-7.3 pf, Var
Air
C107E
281-0SOS-OO
12 pf Cer SOOY
10%
C108B
281-0099-00
1.3-S.4 pf, Var Air
C108C
281-0083-00
0.25-1.5 pf, Var
Tub.
C108E
50 pF
Mica 10%
C108D
28l -OS44-00
5.6 pf
(nominal value} Selected
C109B
281-0100-00
1.4-7.3 pf, Var Air
C109C
281-0086-00
0.25-1.5 pF, Var Tub.
C109E
500 pf Mica 10%
C109D
281-0593-00 3.9 pf (nominal value) Selected
C109F
281-0547-00
2.7pF Cer
SOOY
10%
CllO 281-0529-00 1.5 pF Cer
SOOY
+0.25 pF
Cl 11 281-0099-00
1.3-5.4 pF, Var Air
C113 281-0617-00
lS pF Cer 200V
Cl43E 281 -0578-00
20000 38689X
18 pF Cer SOOY
S%
C144B 281-0592-00
20000 38689X
4.7 pF Cer
+0.5 pF
C173
281 -0534-00
3.3 pF Cer
+0.25 pf
C295
283-0080-00
0.022 µF Cer 25V
+80%-20%
C296
283-0080-00
0.022 µF Cer
25V
+80%-20%
C365 283-0092-00
0.03 p,F
Cer
200V
+80%-20%
(432
281-0510-00
22 pF Cer SOOY
C433A 281 -OSOS-00
12 pf Cer SOOY
10%
C433B 28l-05S7-00
1.8 pf
Cer
SOOY
C43S 283-0013-00
0.01 µf Cer lOOOV
C436
281-0S23-00
100 pf Cer
3SOV
CS30A
281-0010-00
4.5-25 pF, Var Cer
CS30B
283-0097-00
84 pf Cer
lOOOV
2%
C530C
0.001 µF
CS30D
0.01 µf
C530E
*295-0089-00
0.1 µf
Timing capacitor assembly
C530f
1
µF
C530G
10 /.tf
7-2
®
