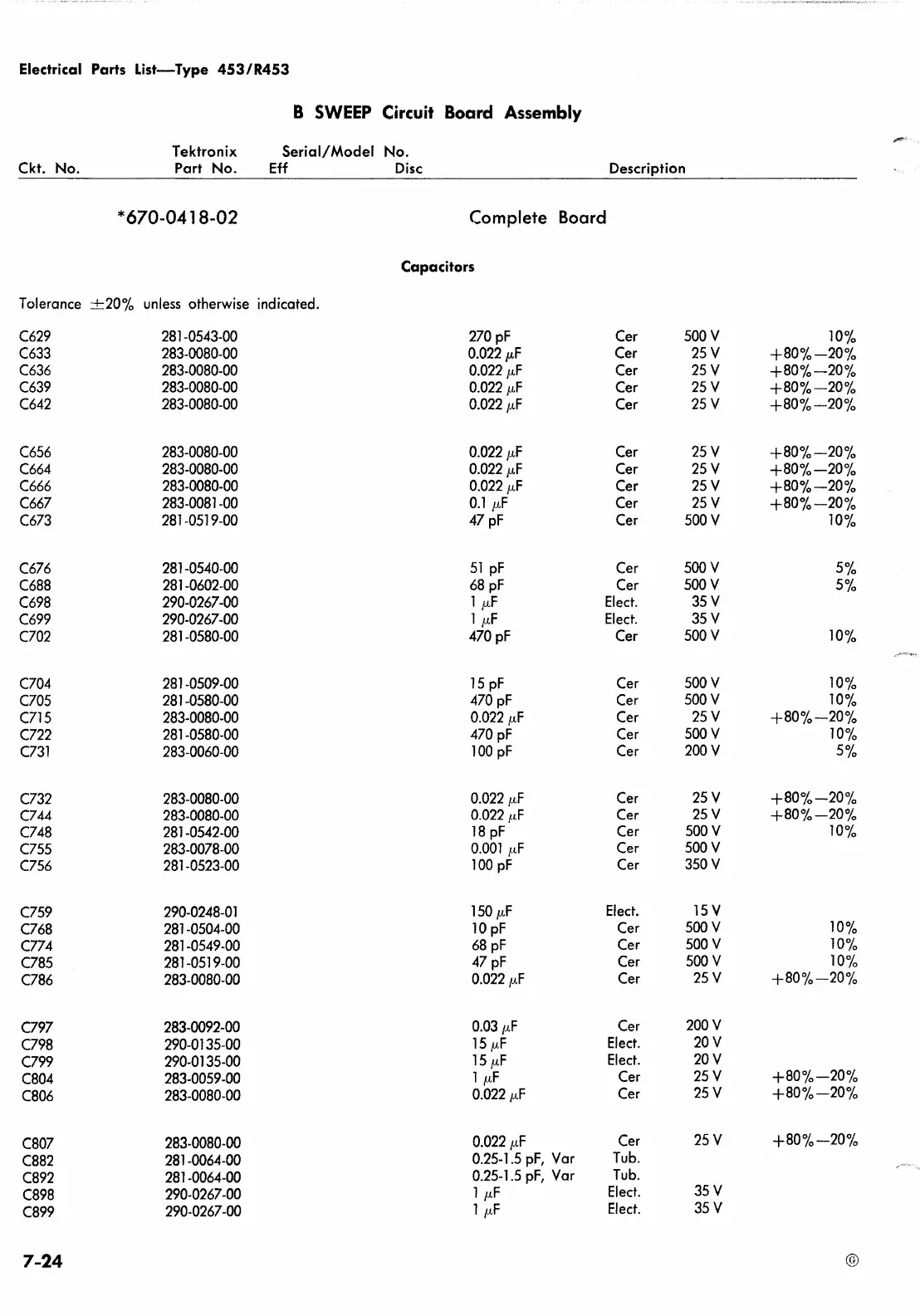

Electrical Parts List-Type 453/R453
B SWEEP
Circuit Board Assembly
""""''
Tektronix Serial/ Model
No.
Ckt. No. Part No.
Eff
Disc
* 670-041 8-02
Complete
Board
Capacitors
Tolerance +20% unless otherwise indicated.
C629 281-0543-00
270 pF Cer
soov
10%
C633 283-0080-00 0.022 µF
Cer 25V
+80%-20%
C636
283-0080-00 0.022 µF
Cer 25V
+80%-20%
C639
283-0080-00 0.022 µF Cer
25V
+80%-20%
C642
283-0080-00 0.022 µF
Cer 25V
+80%-20%
C656
283-0080-00
0.022 µF Cer 25V
+80%-20%
C664 283-0080-00
0.022 µF Cer
25V
+80%-20%
(666
283-0080-00 0.022 µF Cer
25V
+80%-20%
C667
283-0081-00 0.1 µF Cer
25V
+80%-20%
C673 281-0519-00
47pF
Cer
500V
10%
C676
281-0540-00
51 pF Cer 500V
5%
C688
281-0602-00
68 pF Cer
500V
5%
C698
290-0267-00
1 µF Elect.
35V
C699 290-0267-00
l µF Elect.
35V
C702 281-0580-00
470 pF
Cer
500V
10%
C704 281-0509-00
15 pF
Cer 500V
10%
C705
281-0580-00
470 pF Cer
soov
10%
C715 283-0080-00
0.022 µF Cer
25V
+80%-20%
C722
281-0580-00
470 pF
Cer
soov
10%
C731 283-0060-00
100 pF
Cer
200V
5%
C732 283-0080-00
0.022 µF
Cer
25V
+80%-20%
C744
283-0080-00
0.022 µ,F
Cer
25V
+80%-20%
C748 281-0542-00
18 pF Cer
soov
10%
C755
283-0078-00
0.001 p.F
Cer
soov
C756 281-0523-00
100 pF
Cer
350V
C759
290-0248-01
150 µF
Elect.
15 v
C768
281-0504-00
10 pF
Cer
soov
10%
C774 281-0549-00
68 pF
Cer
soov
10%
C785
281-0519-00
47 pF
Cer
soov
10%
C786
283-0080-00
0.022 µF
Cer
25V
+80%-20%
C797
283-0092-00
0.031.tF
Cer
200V
C798
290-0135-00
15 µF
Elect.
20V
C799
290-0135-00
15 µF
Elect.
20V
C804
283-0059-00
1 µF
Cer
25V
+80%-20%
C806
283-0080-00
0.022 µF
Cer
25V
+80%-20%
C807
283-0080-00
0.022 µF
Cer
25V
+80%-20%
C882
281 -0064-00
0.25-1.5 pF, Var
Tub.
C892
281-0064-00
0.25-1.5 pF, Var
Tub.
C898
290-0267-00
1 µF
Elect.
35V
C899
290-0267-00
1 µF
Elect.
35V
7-24
@
