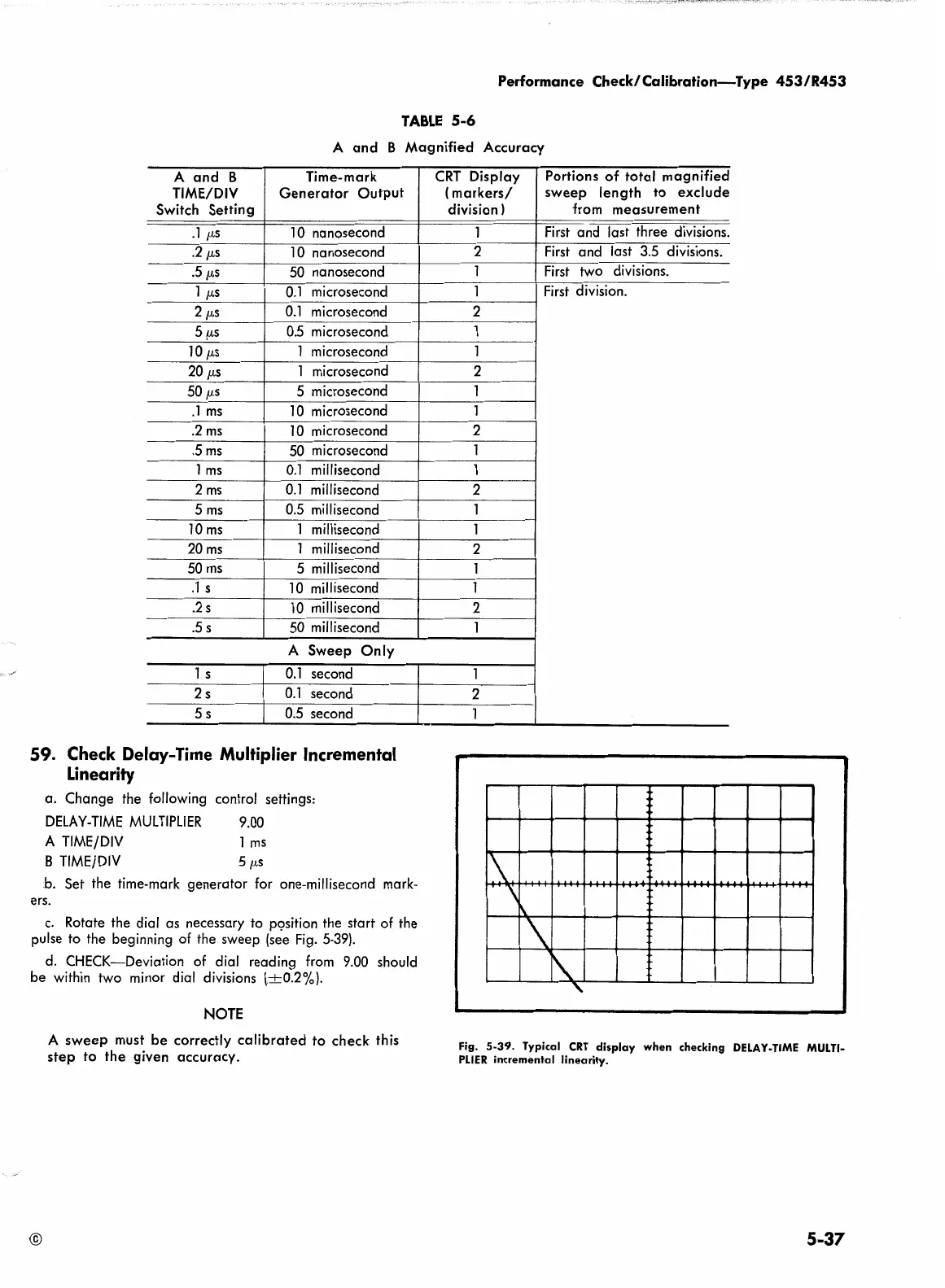

Performance Check/Calibration-Type 453/R453
TABLE 5-6
A and B Magnified Accuracy
A and B
Time-mark
TIME/DIV
Generator Output
Switch Setting
.1 µs l 0 nanosecond
.2 µs l 0 nanosecond
.5
µs
50 nanosecond
l µs 0.1 microsecond
2
µs
0.1 microsecond
5
µs
0.5 microsecond
10
µs
l microsecond
20
µs 1 microsecond
50
µs
5 microsecond
.1 ms
10 microsecond
.2
ms l 0 microsecond
.5 ms 50 microsecond
l ms
0.1 millisecond
2
ms 0.1 millisecond
5
ms 0.5 millisecond
10 ms 1 millisecond
20
ms 1 millisecond
50
ms 5 millisecond
.1 s
10 millisecond
.2 s
10 millisecond
.5 s 50 millisecond
A
Sweep Only
1 s 0.1 second
2s 0.1 second
5s 0.5 second
59. Check Delay-Time Multiplier Incremental
Linearity
a. Change the following control settings:
DELAY-TIME MULTIPLIER 9.00
A TIME/DIV 1 ms
B TIME/DIV 5 µs
b. Set the time-mark generator for one-millisecond mark-
ers.
c. Rotate the dial as necessary to p9sition the start of the
pulse to the beginning of the sweep (see Fig. 5-39).
d.
CHECK-Deviation of dial reading from 9.00 should
be within two minor dial divisions (+0.2%).
©
NOTE
A
sweep must be correctly calibrated to check this
step to the given accuracy.
CRT Display
Portions of total magnified
(markers/
sweep length to exclude
division) from measurement
l
First and last three divisions.
2
First
and last 3.5 divisions.
1
First two divisions.
l
First division.
2
l
l
2
1
1
2
1
l
2
1
1
2
1
1
2
1
1
2
1
I\
\
I\
\
"
"
Fig. 5-39. Typical CRT display when checking DELAY-TIME MULTI-
PLIER incremental linearity.
5-37
