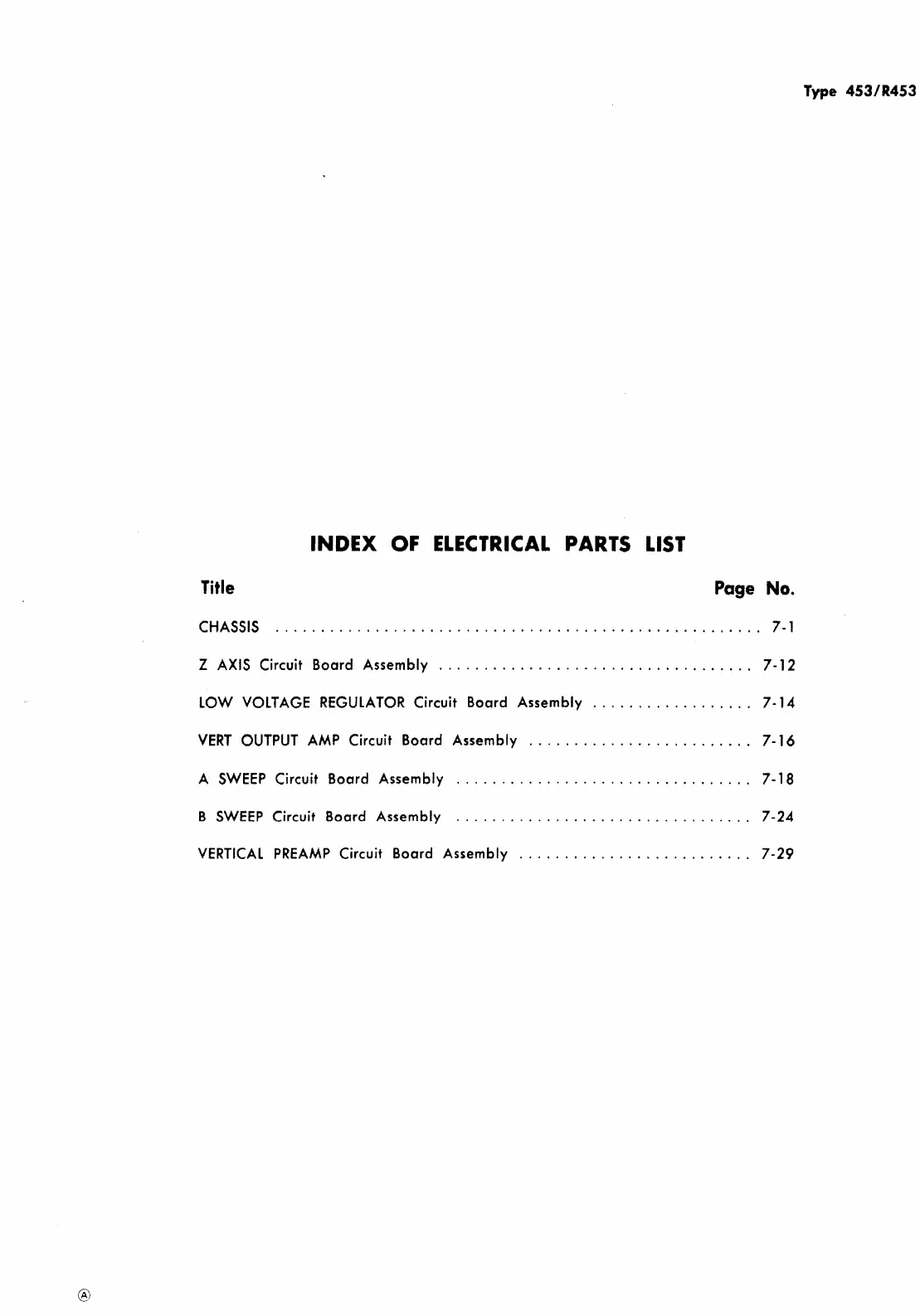

Type
453/1453
INDEX
OF
ELECTRICAL
PARTS
LIST
Title
Page No.
CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 -1
Z AXIS Circuit Board Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7-12
LOW VOLTAGE REGULATOR Circuit Board Assembly
..................
7-14
VERT
OUTPUT AMP Circuit Board Assembly . . . . . . . . . . . . . . . . . . . . . . . . .
7-16
A
SWEEP
Circuit Board Assembly
7-18
B
SWEEP
Circuit Board Assembly
7-24
VERTICAL
PREAMP
Circuit Board Assembly . . . . . . . . . . . . . . . . . . . . . . . . . .
7-29
®
