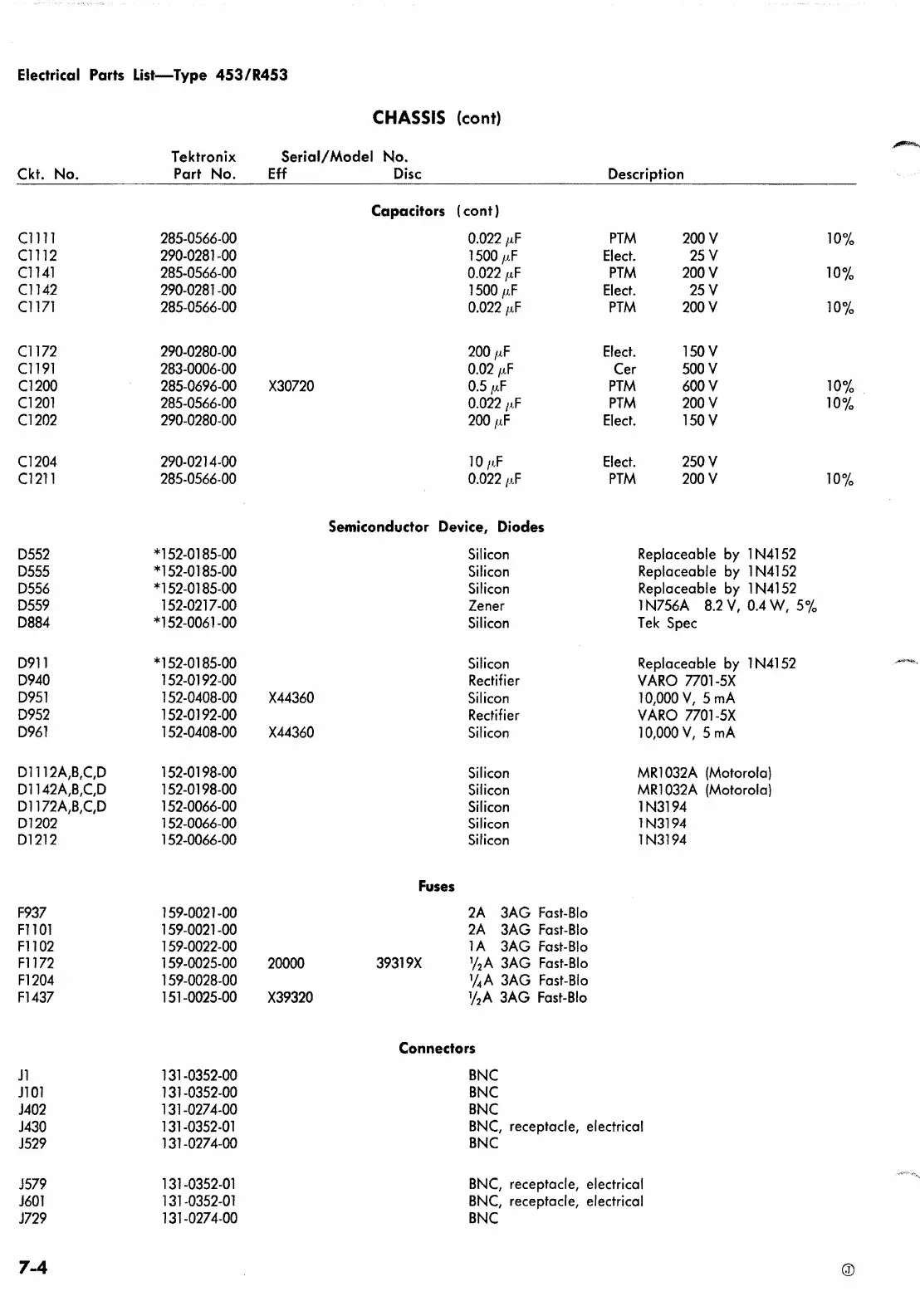

Electrical Parts List-Type 453/R453
CHASSIS
(cont)
Tektronix Serial/ Model No.
Ckt. No.
Part No.
Eff
Disc
Capacitors
(cont)
Cl 111
285-0566-00 0.022 µF
PTM
200V
10%
Cl 112
290-0281-00 1500 µF Elect. 25V
Cl 141
285-0566-00 0.022 µF PTM 200V
10%
Cll42
290-0281-00 1500 µF Elect.
25V
C1171 285-0566-00
0.022 µF
PTM 200V
10%
C1172 290-0280-00 200 µF
Elect.
150V
Cl 191
283-0006-00 0.02 µF Cer SOOY
C1200 285-0696-00
X30720
O.SµF
PTM 600V
10%
C120l
285-0566-00
0.022 ttF
PTM 200V
10%
Cl202 290-0280-00 200 µF
Elect. 150 v
C1204 290-0214-00
10 vF
Elect. 250V
C1211
285-0566-00 0.0221.tF
PTM
200V
10%
Semiconductor Device, Diodes
0552
*152-0185-00
Silicon
Replaceable by 1 N4152
0555
*152-0185-00 Silicon Replaceable by l N4152
0556 *152-0185-00 Silicon
Replaceable by l N4152
0559
152-0217-00
Zener 1N756A 8.2 V, 0.4 W, 5%
0884 *152-0061-00
Silicon
Tek Spec
0911
*152-0185-00
Silicon
~eplaceable by l N4152
0940
152-0192-00 Rectifier
V ARO 7701-5X
0951 152-0408-00
X44360
Silicon 10,000 V, 5 mA
0952
152-0192-00
Rectifier
V ARO 7701-5X
0961
152-0408-00 X44360
Silicon 10,000 V, 5 mA
01l12A,B,C,O
152-0198-00
Silicon MRl 032A (Motorola}
01 l42A,B,C,O
152-0198-00
Silicon MRl 032A (Motorola}
01172A,B,C,O 152-0066-00
Silicon l N3194
01202 152-0066-00 Silicon l N3194
01212 152-0066-00 Silicon 1 N3194
Fuses
F937 159-0021-00
2A
3AG Fast-Bio
Fl 101 159-0021-00
2A
3AG Fast-Bio
Fll02
159-0022-00
lA
3AG Fast-Bio
Fl 172
159-0025-00 20000
39319X
%A 3AG Fast-Bio
Fl204 159-0028-00
1
/
4
A 3AG Fast-Bio
Fl437 151-0025-00 X39320 1/iA 3AG Fast-Bio
Connectors
Jl 131-0352-00 BNC
J101 131-0352-00 BNC
J402 131-027 4-00
BNC
J430 131-0352-01
BNC, receptacle, electrical
J529 131-027 4-00
BNC
J579
131-0352-01
BNC, receptacle, electrical
J601
131-0352-01
BNC, receptacle, electrical
J729
131-027 4-00 BNC
7-4
@
