Electrical
Parts

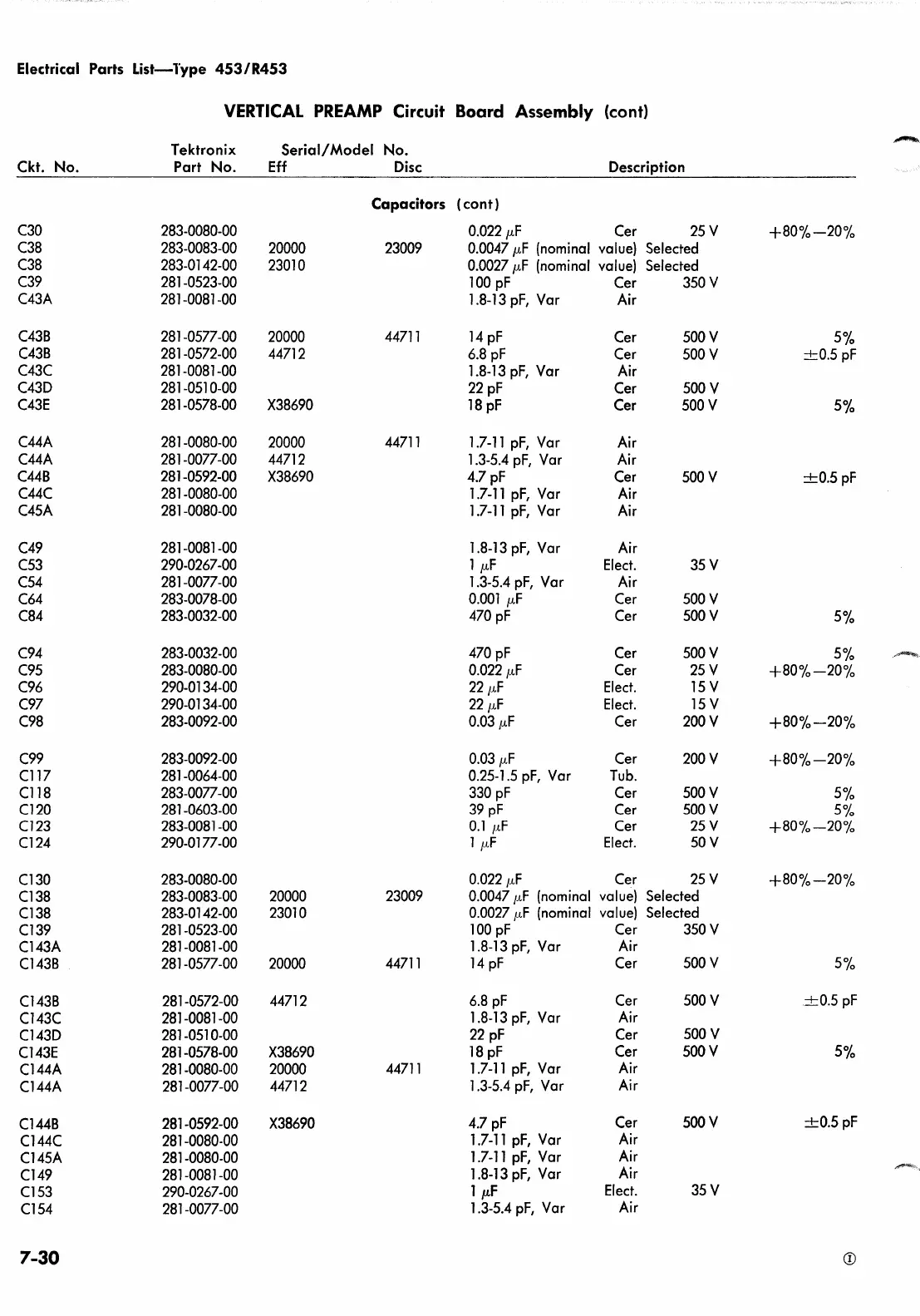

List-l'ype 453/R453
VERTICAL PREAMP
Circuit Board Assembly
(cont)
"""""""'
Tektronix Serial/Model No.
Ckt. No. Part No.
Eff Disc Description
Capacitors
(cont)
C30 283-0080-00
0.022 ,uF Cer 25V
+80%-20%
C38
283-0083-00
20000 23009 0.0047 ,uF (nominal value) Selected
C38
283-0142-00 23010
0.0027 ,uF (nominal value) Selected
C39
281-0523-00
100 pF
Cer
350V
C43A
281-0081-00
l.8-13 pF, Var Air
C43B 281-0577-00
20000 4471 l 14 pF
Cer 500V
5%
C43B 281-0572-00
44712 6.8 pF
Cer
500V
+0.5 pF
C43C 281-0081-00
l.8-13 pF, Var
Air
C43D 281-0510-00
22 pF
Cer 500V
C43E 281-0578-00
X38690 18 pF
Cer 500V
5%
C44A 28 l -0080-00
20000
4471 l
l.7-ll
pF, Var Air
C44A 28 l -0077-00
44712 l.3-5.4 pF, Var Air
C44B 281-0592-00 X38690
4.7 pF
Cer
500V
+0.5pF
C44C
281-0080-00 l .7-l l pF, Var
Air
C45A
281-0080-00 l.7-ll pF, Var Air
C49 281-0081-00 l.8-13 pF, Var Air
C53
290-0267-00 l ,uF Elect.
35V
C54 281-0077-00
l.3-5.4 pF, Var
Air
(64
283-0078-00 0.001 ,uF Cer
500V
C84 283-0032-00
470 pF
Cer 500V
5%
C94 283-0032-00
470 pF
Cer 500V
5%
C95
283-0080-00 0.022 ,uF Cer 25V
+80%-20%
C96
290-0134-00 22 ,uF Elect.
15 v
C97
290-0134-00 22 ,uF Elect.
15 v
C98
283-0092-00
0.03 ,uF
Cer 200V
+80%-20%
C99 283-0092-00 0.03 ,uF
Cer
200V
+80%-20%
Cll7 281-0064-00
0.25-l.5 pF, Var Tub.
Cll8 283-0077-00
330 pF Cer
500V
5%
Cl20
281-0603-00
39 pF
Cer 500V
5%
Cl23 283-0081 -00 0.1 ,uF
Cer 25V
+80%-20%
Cl24 290-0177-00 l ,uF
Elect. 50V
Cl30
283-0080-00
0.022 ,uF Cer 25V
+80%-20%
Cl38
283-0083-00 20000
23009
0.0047 ,uF (nominal value) Selected
Cl38
283-0142-00 23010
0.0027 ,uF (nominal value) Selected
Cl39
281-0523-00
100 pF
Cer
350V
Cl43A
281-0081-00
l .8-13 pF, Var
Air
Cl43B
28 l -0577-00 20000
4471 l
14 pF Cer
500V
5%
Cl43B
281-0572-00
44712 6.8 pF
Cer 500V
+0.5 pF
Cl43C
281-008 l -00
l.8-13 pF, Var Air
Cl43D
281-0510-00
22 pF
Cer
500V
Cl43E
281-0578-00
X38690
18 pF
Cer 500V
5%
Cl44A 281-0080-00 20000
44711
l .7-l l pF, Var
Air
Cl44A
281-0077-00
44712
l .3-5.4 pF, Var
Air
Cl44B
281-0592-00
X38690
4.7 pF
Cer
500V
+0.5 pF
Cl44C
281-0080-00
l.7-11 pF, Var
Air
C145A 28 l -0080-00
l.7-11 pF, Var
Air
Cl49 281-008 l -00
l.8-13 pF, Var
Air
Cl53
290-0267-00
1 ,uF
Elect.
35V
Cl54
28 l -0077-00
l.3-5.4 pF, Var
Air
7-30
