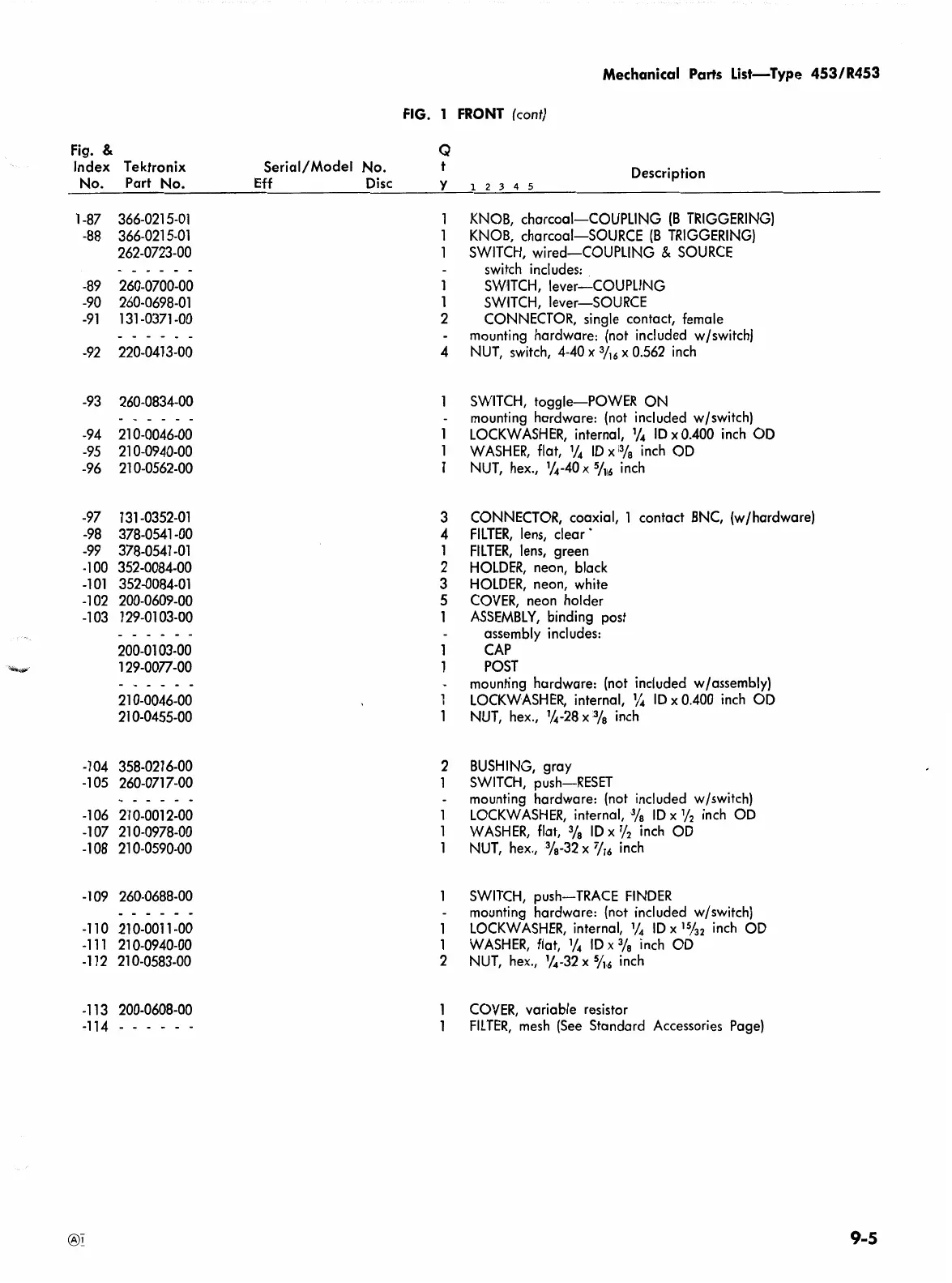

Mechanical Parts List-Type 453/R453
FIG. 1 FRONT {cont)
Q
t
Description
y 1 2 3 4 5
1
1
2
4
KNOB, charcoal-COUPLING (B TRIGGERING)
KNOB, charcoal-SOURCE (B TRIGGERING)
SWITCH, wired-COUPLING & SOURCE
switch includes: .
SWITCH, lever-COUPLING
SWITCH, lever-SOURCE
CONNECTOR, single contact, female
mounting hardware: (not included w/switch)
NUT, switch, 4-40 x
3
/
16
x 0.562 inch
SWITCH, toggle-POWER ON
mounting hardware: (not included w/switch)
LOCKWASHER, internal, 1/
4
ID x 0.400 inch OD
WASHER, flat, 114 ID x 13/a inch OD
NUT, hex., 114-40 x
5
/
116
inch
3 CONNECTOR, coaxial, 1 contact BNC, (w /hardware)
4
FILTER, lens, clear·
1
FILTER, lens, green
2
HOLDER, neon, black
3
HOLDER, neon, white
5
COVER, neon holder
1
ASSEMBLY, binding post
assembly includes:
CAP
POST
mounting hardware: (not included w/assembly)
LOCKWASHER, internal,
1
/
4
ID x 0.400 inch OD
NUT, hex.,
1
/
4
-28 x :3fa inch
2 BUSHING, gray
1
SWITCH, push-RESET
mounting hardware: (not included w/switch)
LOCKWASHER, internal, 3/s ID x
1
/
2
inch OD
WASHER, flat, 3/s ID x
1
/
2
inch OD
NUT, hex., %-32 x i/
16
inch
SWITCH, push-TRACE FINDER
mounting hardware: (not included w/switch)
1
LOCKWASHER, internal,
1
/
4
ID x
15
/
32
inch OD
1 WASHER, flat, 114 ID x 3/s inch OD
2 NUT, hex.,
1
/
4
-32 x 5/J.
6
inch
COVER, variable resistor
FILTER, mesh (See Standard Accessories Page)
