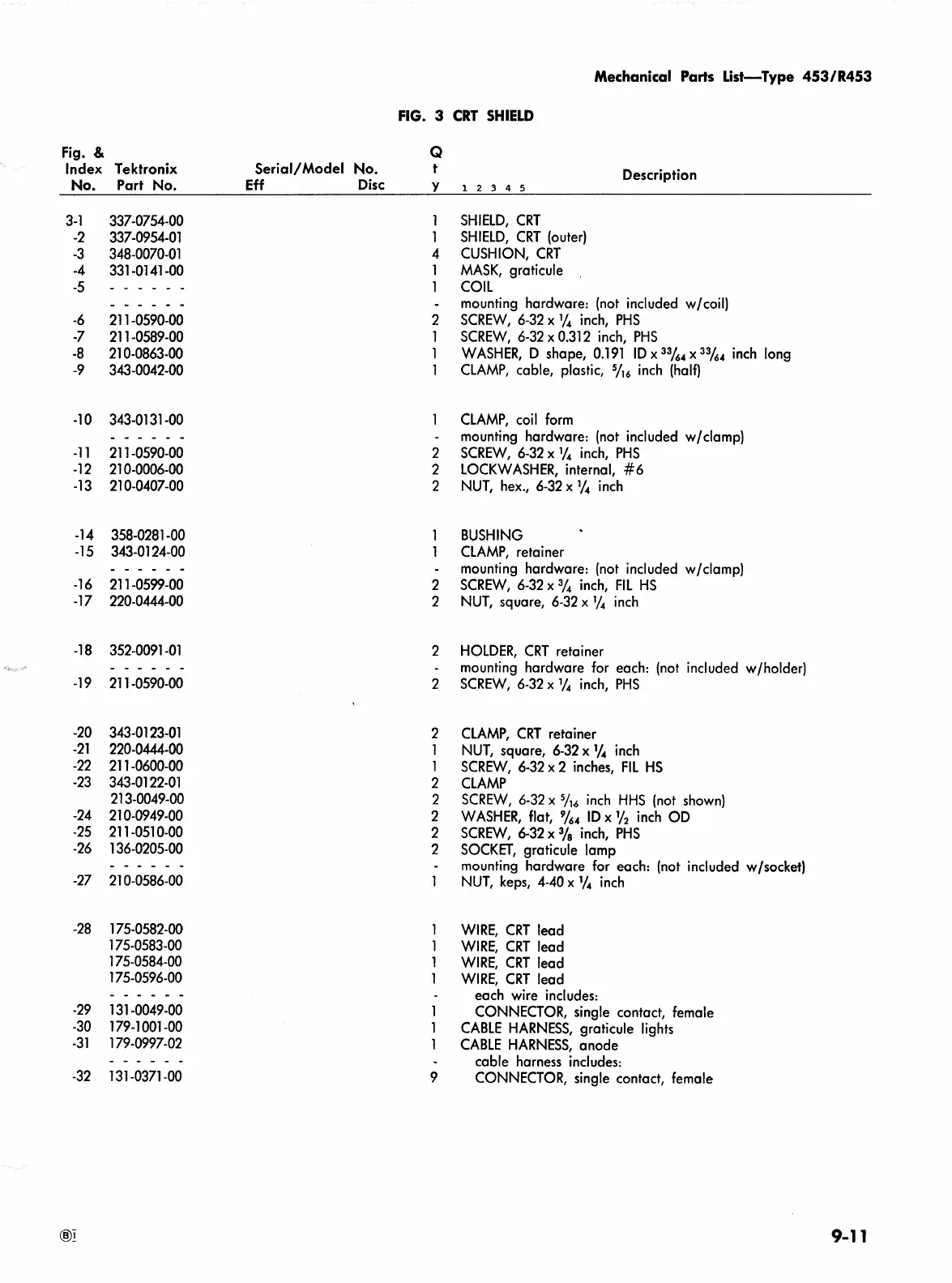

Mechanical Parts List-Type 453/R453
FIG. 3 CRT SHIELD
fig. &
Q
Index Tektronix
Serial/ Model
No.
Description
No.
Part No.
Eff
Disc
y
1 2 3 4 5
3-1 337-0754-00
1 SHIELD, CRT
-2
337-0954-01
1
SHIELD, CRT (outer)
-3 348-0070-01
4
CUSHION, CRT
-4 331-0141-00
1
MASK, graticule
-5
------
1
COIL
------
mounting hardware: (not included w/coil)
-6 211-0590-00
2 SCREW, 6-32 x % inch, PHS
-7 211-0589-00
1 SCREW, 6-32 x 0.312 inch, PHS
-8 210-0863-00 1 WASHER, D shape, 0.191 ID x
33
/
64
x
3
%
4
inch long
-9
343-0042-00
1 CLAMP, cable, plastic,
5
/
16
inch (half)
-10 343-0131-00
CLAMP, coil form
------
mounting hardware: (not included w/clamp)
-11
211-0590-00 2 SCREW, 6-32 x
1
/
4
inch, PHS
-12
210-0006-00 2 LOCKWASHER, internal, #6
-13 21 0-0407-00
2 NUT, hex., 6-32 x % inch
-14 358-0281 -00 BUSHING
-15
343-0124-00 CLAMP, retainer
------
mounting hardware: (not included w/clamp)
-16
211-0599-00
2 SCREW, 6-32 x % inch, FIL HS
-17 220-0444-00
2
NUT, square, 6-32 x
1
/
4
inch
-18 352-0091-01
2
HOLDER, CRT retainer
------
mounting hardware for each: (not included w /holder)
-19
211-0590-00
2
SCREW, 6-32 x % inch, PHS
-20
343-0123-01
2
CLAMP, CRT retainer
-21
220-0444-00
1
NUT, square, 6-32 x 1/
4
inch
-22
211-0600-00
1
SCREW, 6-32 x 2 inches, FIL HS
-23
343-0122-01
2
CLAMP
213-0049-00
2
SCREW, 6-32 x
5
/u, inch HHS (not shown)
-24
210-0949-00
2
WASHER, flat, %
4
ID x % inch OD
-25
211-0510-00
2
SCREW, 6-32 x 3/s inch, PHS
-26
136-0205-00
2
SOCKET, graticule lamp
------ mounting hardware for each: (not included w/socket)
-27 210-0586-00
NUT, keps, 4-40 x 1/
4
inch
-28
175-0582-00
WIRE, CRT lead
175-0583-00
WIRE, CRT lead
175-0584-00
WIRE, CRT lead
175-0596-00
WIRE, CRT lead
------
each wire includes:
-29
131-0049-00
CONNECTOR, single contact, female
-30 179-1001-00
CABLE HARNESS, graticule lights
-31
179-0997-02
CABLE HARNESS, anode
------
cable harness includes:
-32
131 -0371 -00
9
CONNECTOR, single contact, female
®I
9-11
