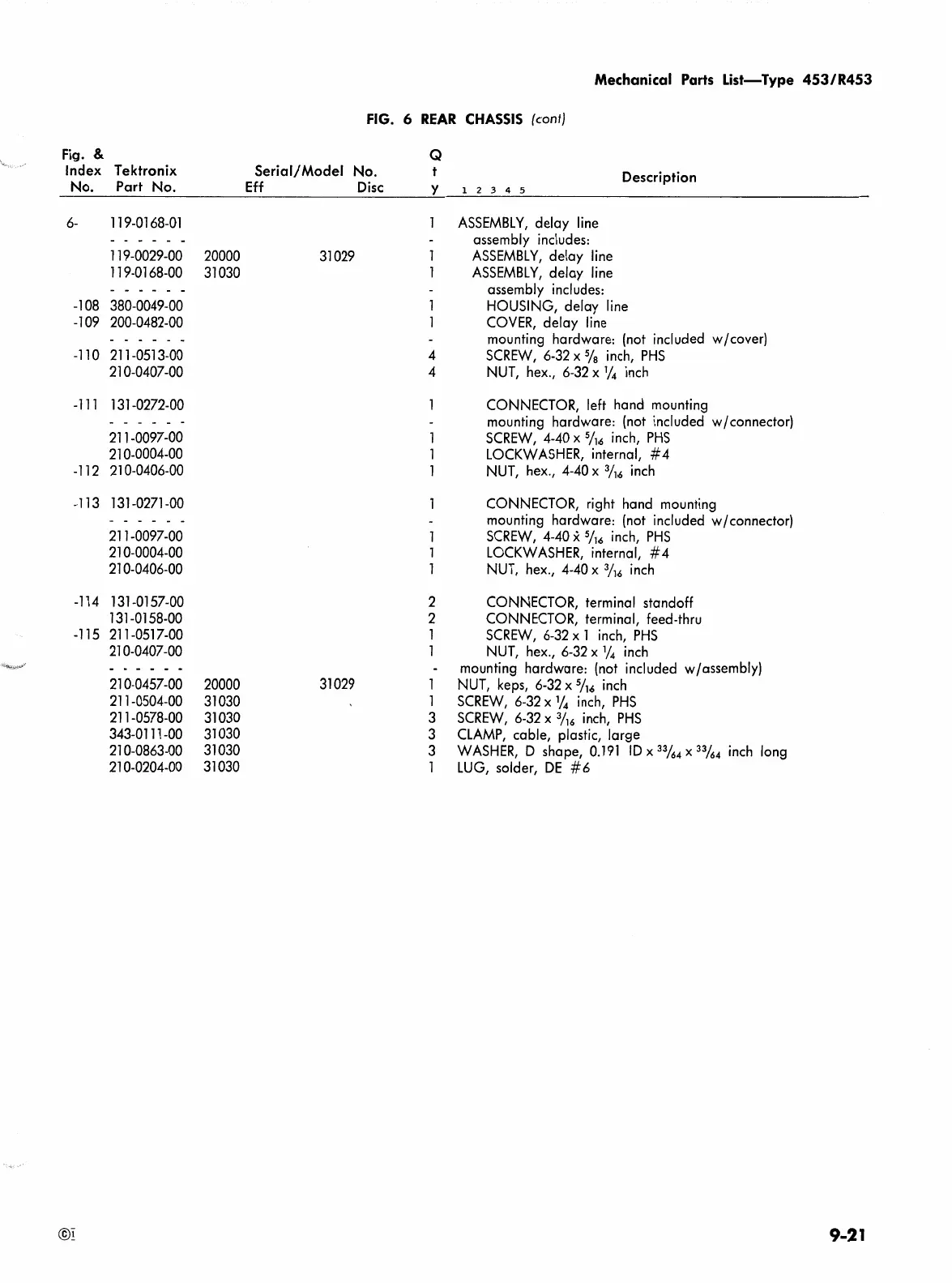

Mechanical Parts List-Type 453/R453
FIG. 6 REAR CHASSIS (cont)
Fig. &
Q
Index Tektronix
Serial/ Model
No.
t
Description
No.
Part No.
Eff
Disc y
l 2 3 4 5
6- 119-0168-01 ASSEMBLY, delay line
------
assembly includes:
119-0029-00 20000 31029 ASSEMBLY, delay line
119-0168-00 31030 ASS EMBLY, delay line
------
assembly includes:
-108 380-0049-00 HOUSING, delay line
-109 200-0482-00
COVER, delay line
------
mounting hardware: (not included w/cover)
-110
211-0513-00
4 SCREW, 6-32 x % inch, PHS
210-0407-00
4 NUT, hex., 6-32 x
1
/
4
inch
-111
131-0272-00 CONNECTOR, left hand mounting
------
mounting hardware: (not included w/connector)
211-0097-00
SCREW, 4-40 x %
6
inch, PHS
21 0-0004-00
LOCKWASHER, internal, #4
-112 210-0406-00
NUT, hex., 4-40 x
3
/
16
inch
-113 131-0271-00
CONNECTOR, right hand mounting
------
mounting hardware: (not included w/connector)
211-0097-00
SCREW, 4-40 x
5
/u, inch, PHS
210-0004-00
LOCKWASHER, internal, #4
210-0406-00
NUT, hex., 4-40 x
3
/u, inch
-114
131-0157-00
2 CONNECTOR, terminal standoff
131-0158-00
2
CONNECTOR, terminal, feed-thru
-115 211-0517-00
l
SCREW, 6-32 x l inch, PHS
210-0407-00
1
NUT, hex., 6-32 x
1
/
4
inch
------
mounting hardware: (not included w/assembly)
210-0457-00
20000
31029
1 NUT, keps, 6-32 x
5
/u, inch
211-0504-00 31030
l SCREW, 6-32 x % inch, PHS
211-0578-00
31030
3
SCREW, 6-32 x
3
/
16
inch, PHS
343-0111-00 31030
3 CLAMP, cable, plastic, large
210-0863-00
31030
3 WASHER, D shape, 0.191 ID x
33
/
64
x
33
/
64
inch long
210-0204-00
31030
1 LUG, solder, DE #6
©!
9-21
