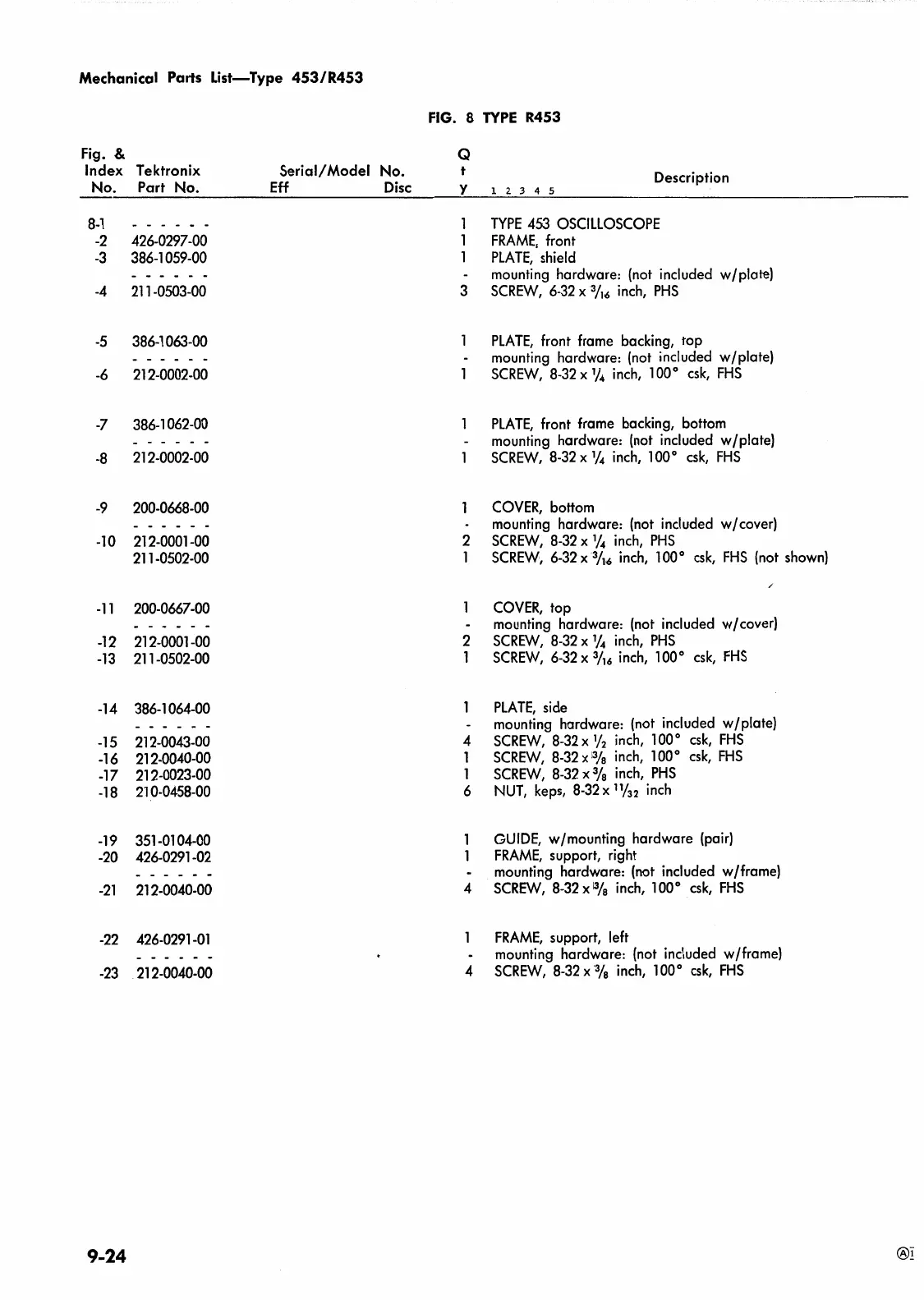

Mechanical Parts List-Type 453/R453
FIG. 8 TYPE R453
Fig. &
Q
Index
Tektronix
Serial/ Model
No.
t
Description
No.
Part No.
Eff
Disc
y
1 2 3 4 5
8-1
------
TYPE 453 OSCILLOSCOPE
-2
426-0297-00
FRAME, front
-3
386-1059-00
PLATE, shield
------
mounting hardware: (not included w/plate)
-4
211-0503-00 3
SCREW, 6-32 x
3
/
16
inch, PHS
-5
386-1 063-00
PLATE, front frame backing, top
------
mounting hardware: (not included w/plate)
-6
212-0002-00
SCREW, 8-32 x 114 inch, 100° csk, FHS
-7
386-1062-00
PLATE, front frame backing, bottom
------
mounting hardware: (not included w/plate)
-8
212-0002-00
SCREW, 8-32 x 1/
4
inch, 100° csk, FHS
-9
200-0668-00
COVER, bottom
------
mounting hardware: (not included w/cover)
-10
212-0001-00
2 SCREW, 8-32 x 114 inch, PHS
211-0502-00
1
SCREW, 6-32 x 3/
16
inch, 100°
csk, FHS (not shown)
-11
200-0667-00
COVER, top
------
mounting hardware: (not included w/cover)
-12
212-0001-00
2
SCREW, 8-32 x 114 inch, PHS
-13
211-0502-00
1
SCREW, 6-32 x
3
/
16
inch, 100°
csk, FHS
-14
386-1 064-00
PLATE, side
------
mounting hardware: (not included w/plate)
-15
212-0043-00
4
SCREW, 8-32 x % inch, 100° csk, FHS
-16
212-0040-00
1
SCREW, 8-32 x% inch, 100° csk, FHS
-17
212-0023-00
1
SCREW, 8-32 x 3/s inch, PHS
-18
210-0458-00
6
NUT, keps, 8-32 x
11
/
32
inch
-19
351-0104-00
GUIDE, w/mounting hardware (pair)
-20
426-0291-02
FRAME, support, right
------
mounting hardware: (not included w/frame)
-21
212-0040-00
4
SCREW, 8-32 x % inch, 100° csk, FHS
-22
426-0291-01
FRAME, support, left
------
mounting hardware: (not included w/frame)
-23
212-0040-00
4
SCREW, 8-32x% inch, 100° csk, FHS
9-24
