Appendix B: Performance Verification
B–6
TDS 340A, TDS 360 & TDS 380 User Manual
2. Connect the output of a DC calibration generator through a dual-banana
connector followed by a 50 W precision coaxial cable to CH 1, as shown in
Figure B–2.
HI
LO
Output Sense
DC Calibrator
Coaxial cable
Dual banana to
BNC adapter

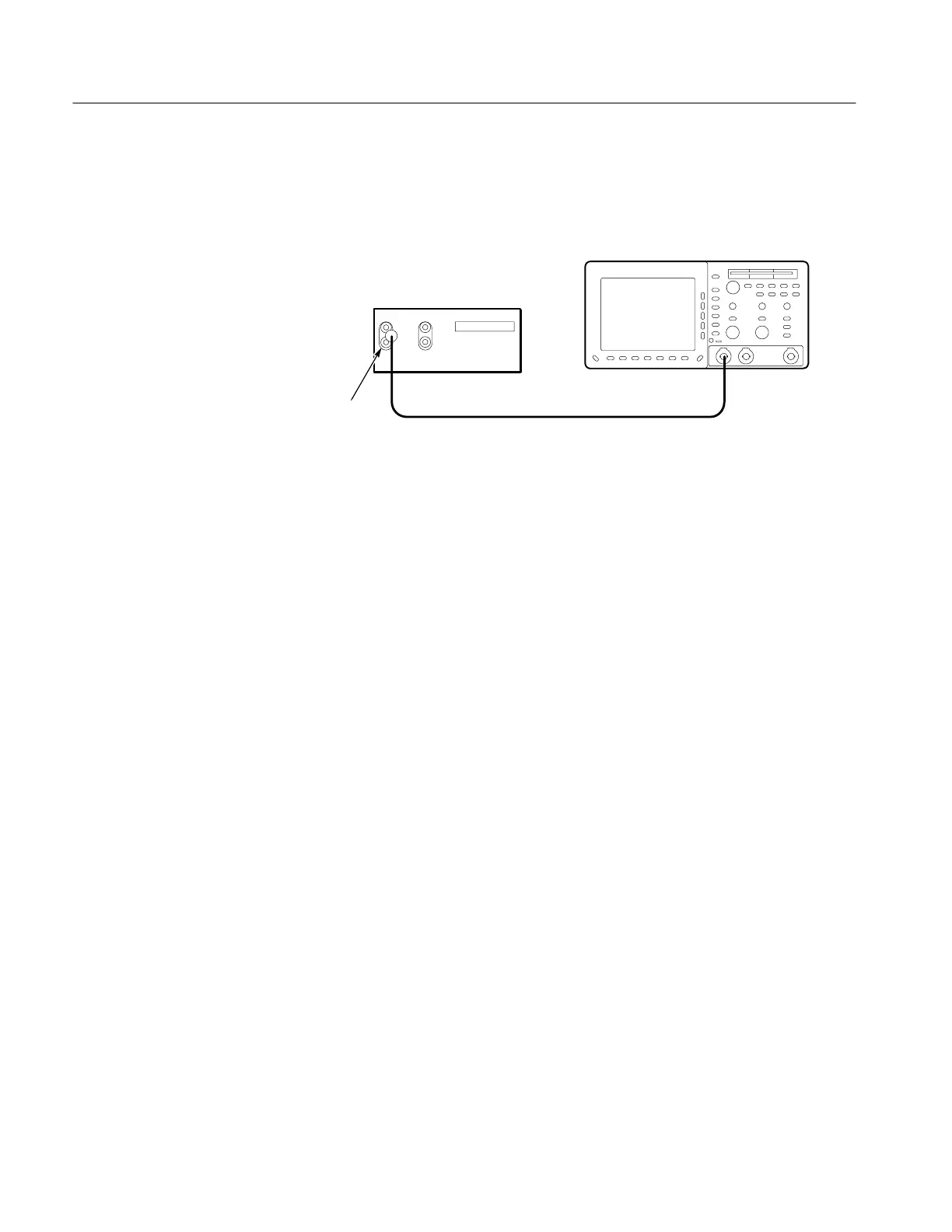

Figure B–2: Hookup for DC voltage measurement accuracy check
3. Press SAVE/RECALL SETUP ! Recall Factory Setup ! OK Confirm
Factory Init.
4. Press ACQUIRE ! Mode ! Average 16.
5. Press MEASURE ! Select Measurement.
6. Press the side menu button more until the menu label Mean appears in the
side menu. Press the side menu button Mean.
7. Set the vertical SCALE to one of the settings listed in Table B–2 that you
have not yet checked. (Start with the first setting listed.)
8. Press VERTICAL MENU ! Position.
9. Turn the General Purpose Knob to set the vertical position to the setting
listed in Table B–2. The baseline level moves off screen.
10. Press the main menu button Offset.
11. Use the General Purpose Knob to set vertical offset to the setting listed in
Table B–2 for the present vertical scale setting. The baseline level remains
off screen.
To Next Page
