Operating Basics

2–2

TDS 340A, TDS 360 & TDS 380 User Manual

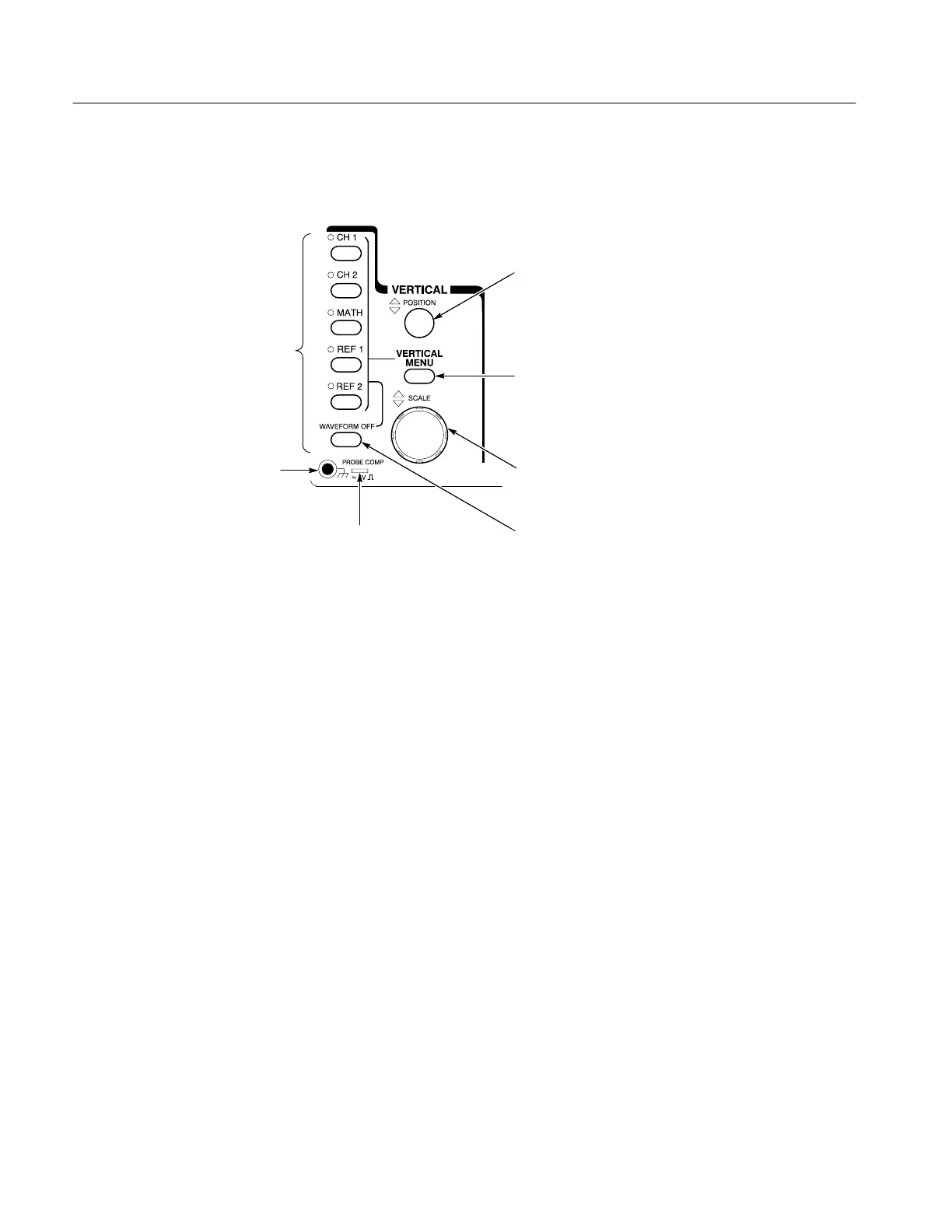

Vertical Controls

The WAVEFORM OFF button turns

off the selected waveform.

The Waveform Select buttons display

and select waveforms (CH1, CH2, MATH,

REF1, and REF2). A light next to a button

illuminates when that waveform is

selected.

Probe compensation output. See

page 2–12 for instructions on how to

compensate the probes.

Connector to chassis ground.

The Vertical POSITION knob controls

the vertical position of the selected

waveform.

The VERTICAL MENU button calls up

the vertical operations menu. For more

information about vertical operations,

see page 3–3.

The SCALE knob controls the vertical

scale of the selected waveform.
