Appendix B: Performance Verification
TDS 340A, TDS 360 & TDS 380 User Manual
B–9
8. Set the generator output so the CHx Pk-Pk readout equals 60 mV.
9. Press SET LEVEL TO 50% as necessary to trigger the display.
10. Increase the frequency of the generator output to 100 MHz (TDS 340A),
200 MHz (TDS 360), or 400 MHz (TDS 380).
11. Set the horizontal SCALE to 5 ns/div (TDS 340A), 2.5 ns/div (TDS 360), or
2.5 ns/div (TDS 380).
12. Press SET LEVEL TO 50% as necessary to trigger the display.
13. Check that the Pk-Pk readout on screen (as shown in
Figure B–4) is w42.5 mV.
Second, read the results
from the readout of
measurement Pk-Pk.
First, increase the reference
frequency to the test frequency;
then decrease the horizontal
scale.

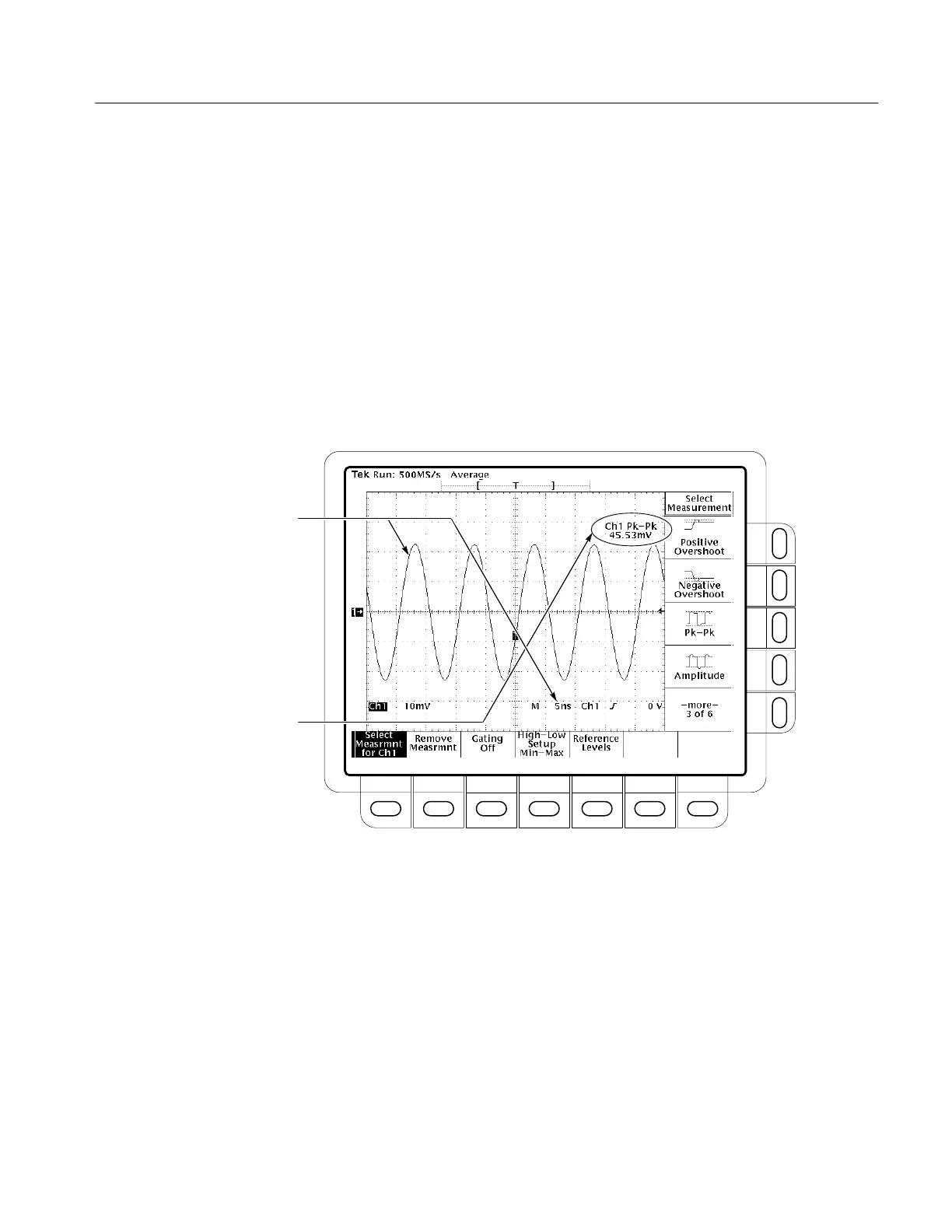

Figure B–4: Measuring analog bandwidth
14. When finished checking, set the horizontal SCALE back to the 10 s/div
setting, and set the generator output frequency back to 50 kHz.
15. Press WAVEFORM OFF to remove Channel 1 from the display.
16. Press CH 2 and move the hookup to the CH 2 input.
17. Press TRIGGER MENU ! Source ! CH 2.
18. Repeat steps 6 through 13 for CH 2.
To Next Page
