Saving and Recalling Waveforms
3–48
TDS 340A, TDS 360 & TDS 380 User Manual

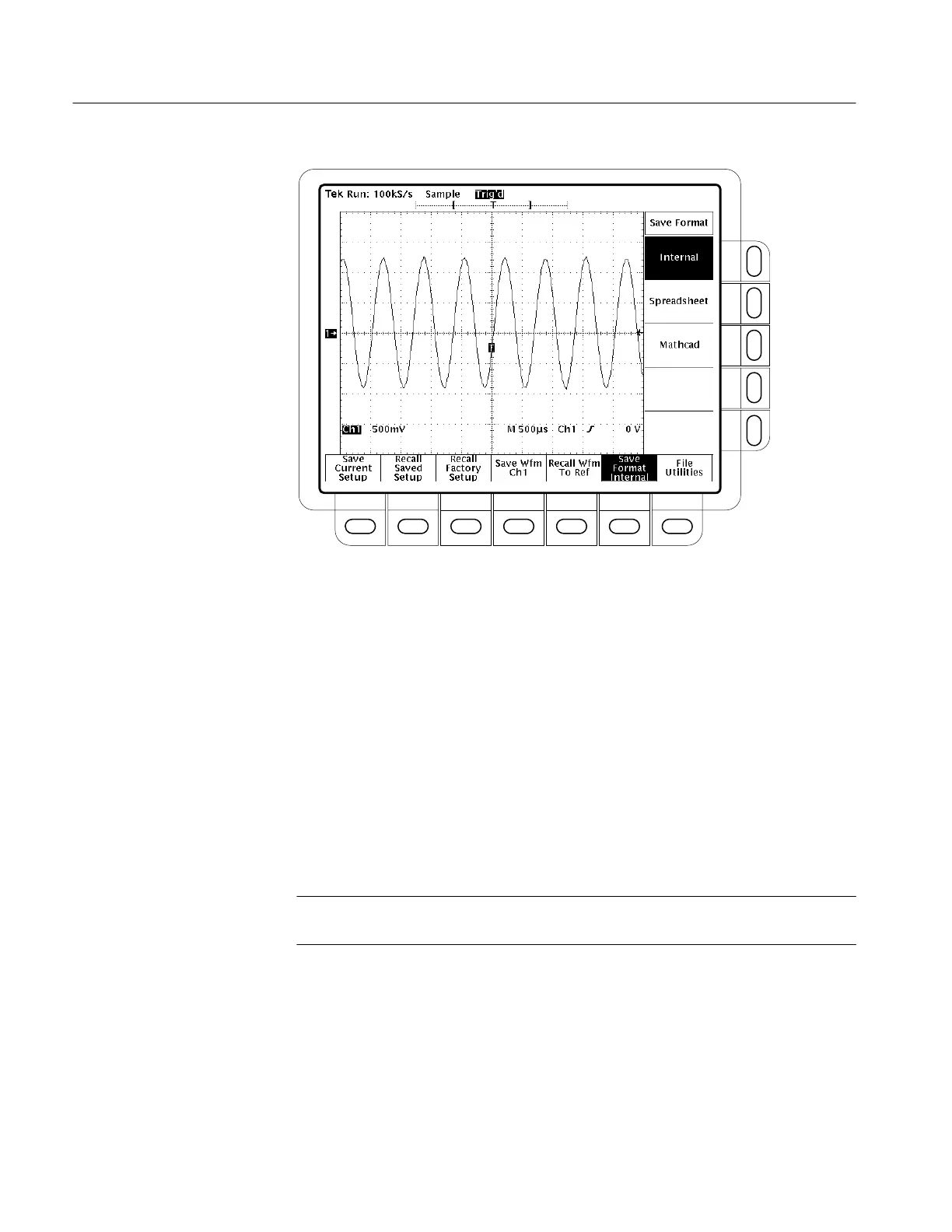

Figure 3–32: Save Format menu
To store a waveform to disk, insert a formatted 720 Kbyte or 1.44 Mbyte floppy
disk into the slot at the top of the oscilloscope. Press the main-menu button Save
Wfm and then the side-menu button To File. Use the general purpose knob to
select the exact file from the resulting scrollbar list. Finally, press the side-menu
button Save To Selected File to complete the operation.
To recall a waveform from disk to an internal reference memory, press the
front-panel button SAVE/RECALL and then the main-menu button Recall Wfm
To Ref. Use the general purpose knob to select the exact file from the resulting
scrollbar list. Only files with .ISF extensions are displayed. Finally, press either
the side-menu button To Ref1 or To Ref2 to complete the operation.
NOTE. You can only recall waveforms saved with the .ISF extension. You cannot
read files saved with .DAT or .CSV extensions back into the oscilloscope.
Saving a Waveform to the
Disk
Recalling a Waveform
from the Disk
