Manipulating Waveforms
There are two basic ways to manipulate waveforms acquired by TDS 300 Series
oscilloscopes.
H You can change their display parameters with the vertical and horizontal
systems
H You can add, subtract, and multiply them with the waveform math feature
Vertical Operations
To access the vertical-system features, press the VERTICAL MENU button,
shown in Figure 3–1.
NOTE. The VERTICAL MENU button calls up the vertical menu only if a channel
waveform (CH 1 or CH 2) is selected. If a math or reference waveform is
selected, the VERTICAL MENU button calls up the math or reference waveform
menu.
Vertical menu

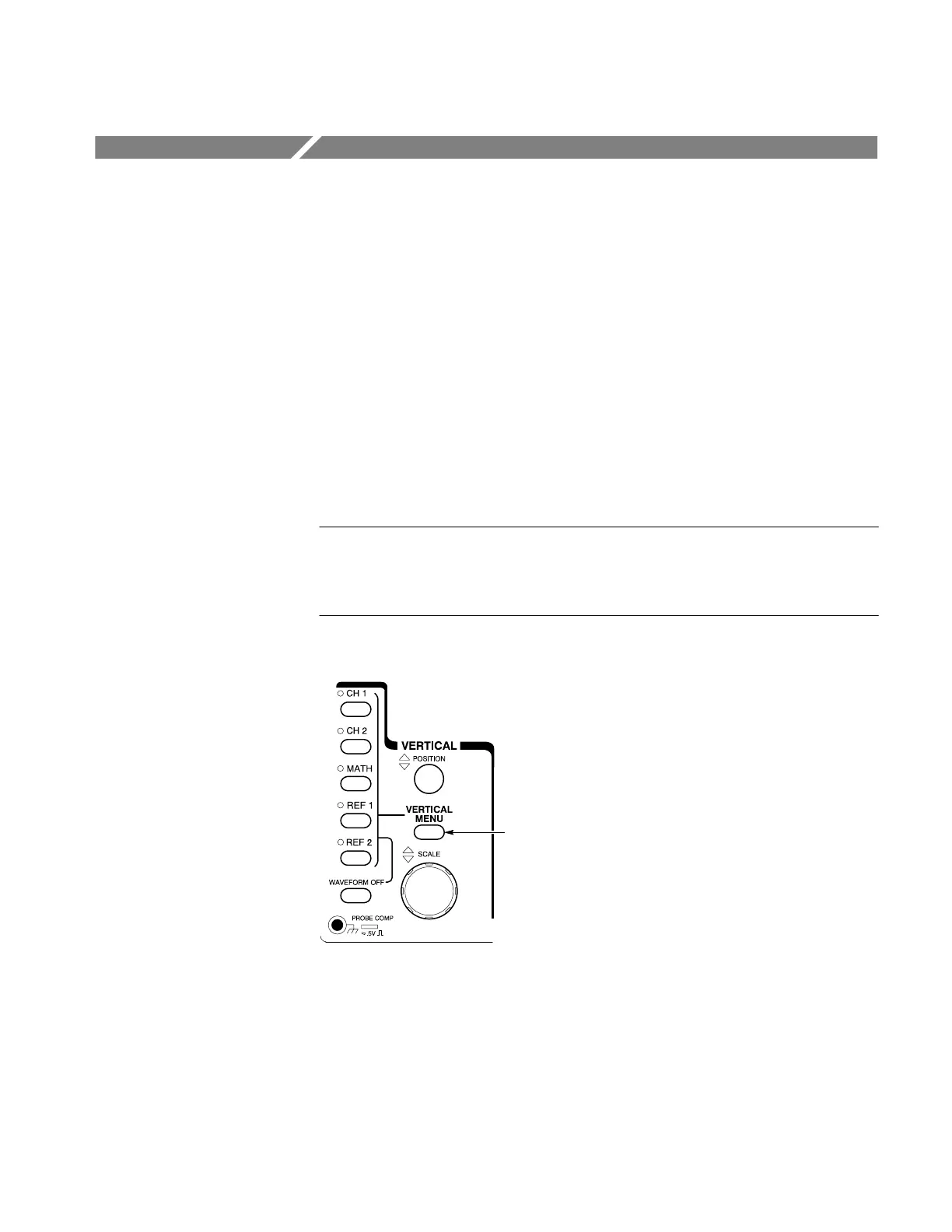

Figure 3–1: The VERTICAL MENU button
