Operating Basics
TDS 340A, TDS 360 & TDS 380 User Manual
2–5
Miscellaneous Controls

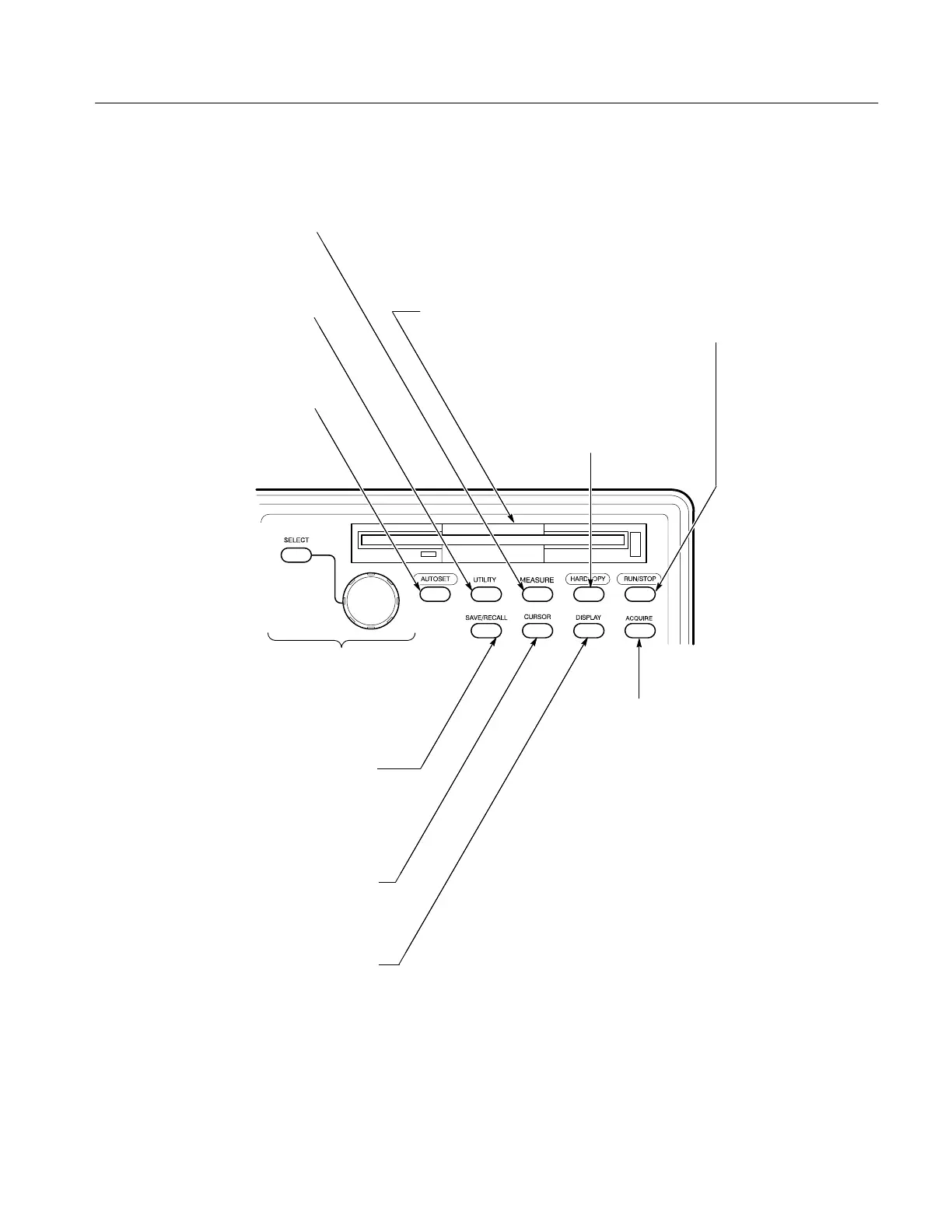

The General Purpose Knob controls many
side-menu functions, including the cursors.
The SELECT button switches control from
cursor to cursor.
The AUTOSET button automatically sets
up the instrument to produce a usable
display of the input signals. See
page 2–15 for more information about
the autoset function.
The SAVE/RECALL button calls up the
save/recall menu. See page 3–45 for more
information about saving and recalling
waveforms. See page 3–51 for more
information about saving and recalling
setups.
The UTILITY button calls up the utility
menu. See page 3–59 for more
information about utilities.
The CURSOR button calls up the cursor
menu. See page 3–21 for information
about making measurements with cursors.
The MEASURE button calls up the
automated measurements menu. See
page 3–17 for more information about
automated measurements.
The DISPLAY button calls up the display
menu. See page 3–27 for information
about controlling the display.
The HARDCOPY button starts print
operations. See page 3–41 for more
information about making hard copies.
The ACQUIRE button calls up the
acquisition menu. See page 3–25 for
more information about controlling
acquisition.
The RUN/STOP button starts
and stops acquisition.
The floppy disk drive provides
mass storage for waveforms,
setups, and hard copies.
