Operating Basics

TDS 340A, TDS 360 & TDS 380 User Manual

2–3

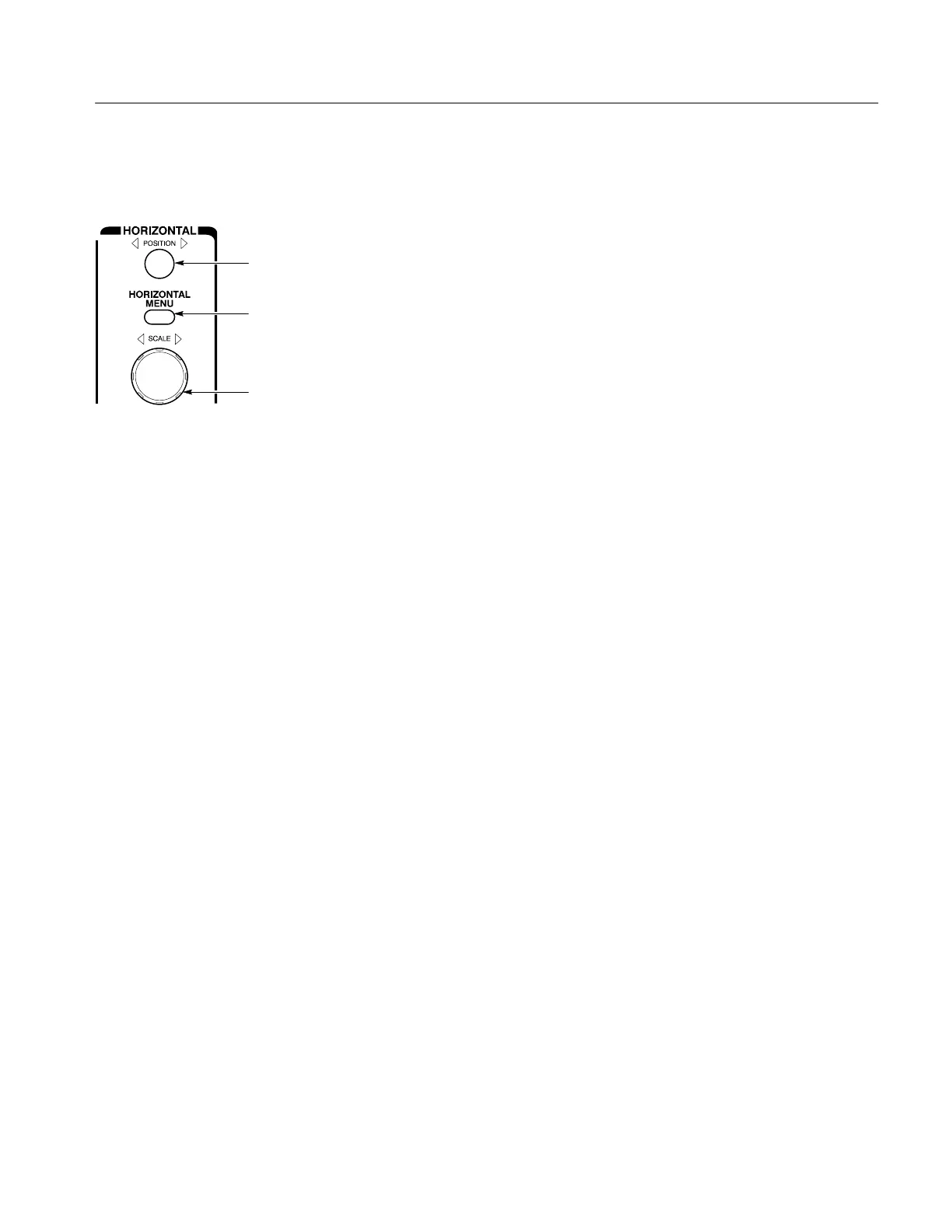

Horizontal Controls

The SCALE knob controls the horizontal

scale of the active waveforms.

The HORIZONTAL MENU button calls up

the horizontal operations menu. For more

information about horizontal operations,

see page 3–6.

The Horizontal POSITION knob controls

the horizontal position of all waveforms.
