Mechanical Parts List
10- 12
TDS5000B Series Service Manual
Acquisition assembly
Fig. &
index
number
Tektronix
part number
Serial no.
effective
Serial no.
discont ’d
Qty Name & description
10--5--1 671--5738--XX 1 CKT BD SUBASSY:ACQUISITION, TD S5 1 0 4
671--5739--XX 1 CKT BD SUBASSY:ACQUISITION, TDS5054, TDS5034B, TDS5054BE
671--5740--XX 1 CKT BD SUBASSY:ACQUISITION, TDS5052, TDS5032B
--2 211--1050--XX 6 SCREW,MACHINE:6--32 X 0.312 L,PNH,STL CAD,T15
--3 174--2729--XX 1 CABLE ASSY:COAX,RFP,50 OHM,5.5 L,PELTOLA BOTH ENDS
--4 174--2637--XX 1 CABLE ASSY:,RF,50 OHM COAX,7.0 L,,PELTOLA BOTH ENDS
--5 175--8029--XX 1 CABLE ASSY,RF:50 OHM COAX,12.0 L,PELTOLA X PELTOLA
--6 131--1315--XX 3 CONN,RF JACK: BNC/PNL,50 OHM PELTOLA/REAR PNL, WITH HARDWARE
--7 174--4483--XX 1 CABLE ASSY:FLEX,20 COND,PROBE INTERFACE
--8 679--5209--XX 1 CKT BD SUBASSY:PROBE INTERFACE
1
2
3
4
5
6
7
2
8

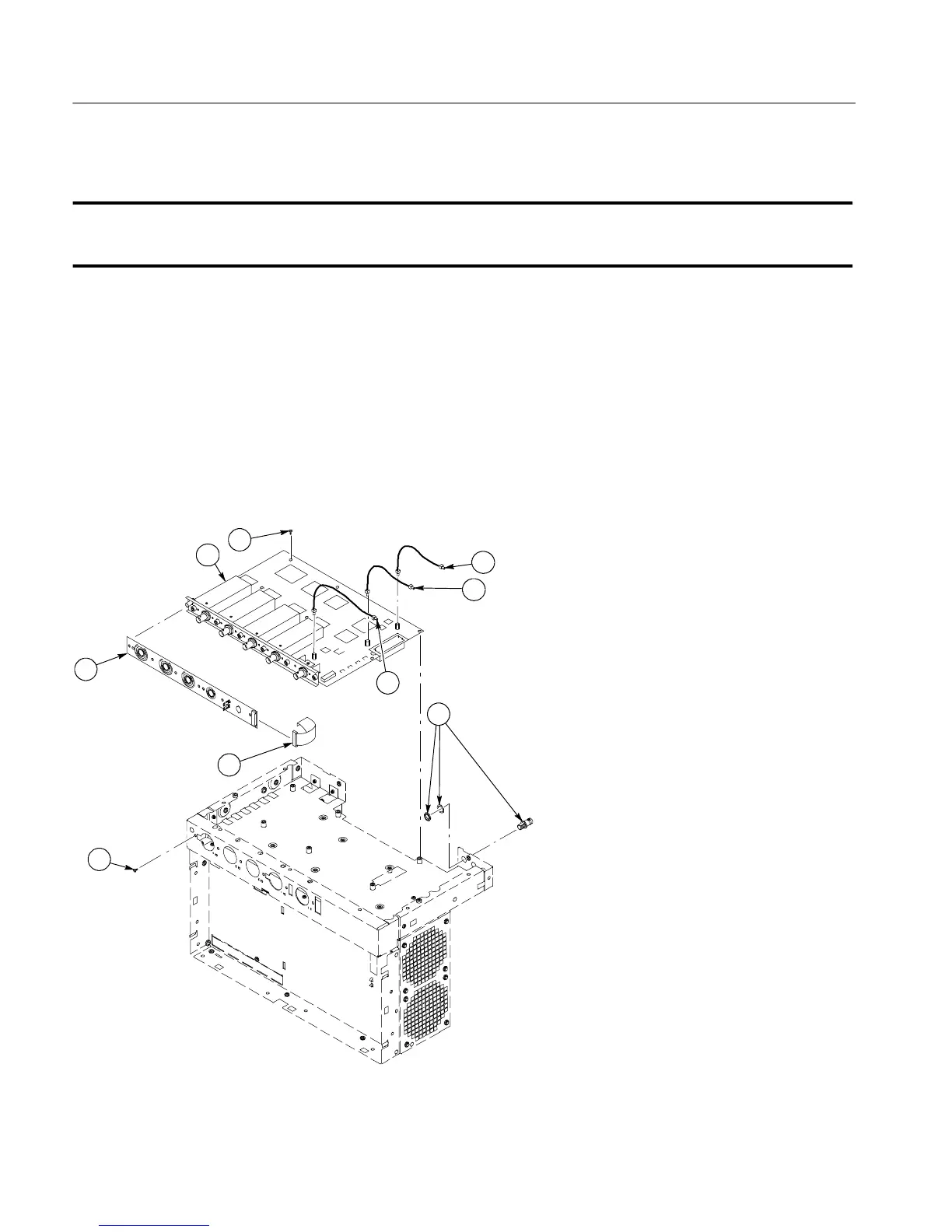

Figure 10- 5: Acquisition assembly
