Operating Basics
TDS5000B Series Quick Start User Manual
95
Saving Instrument Setups

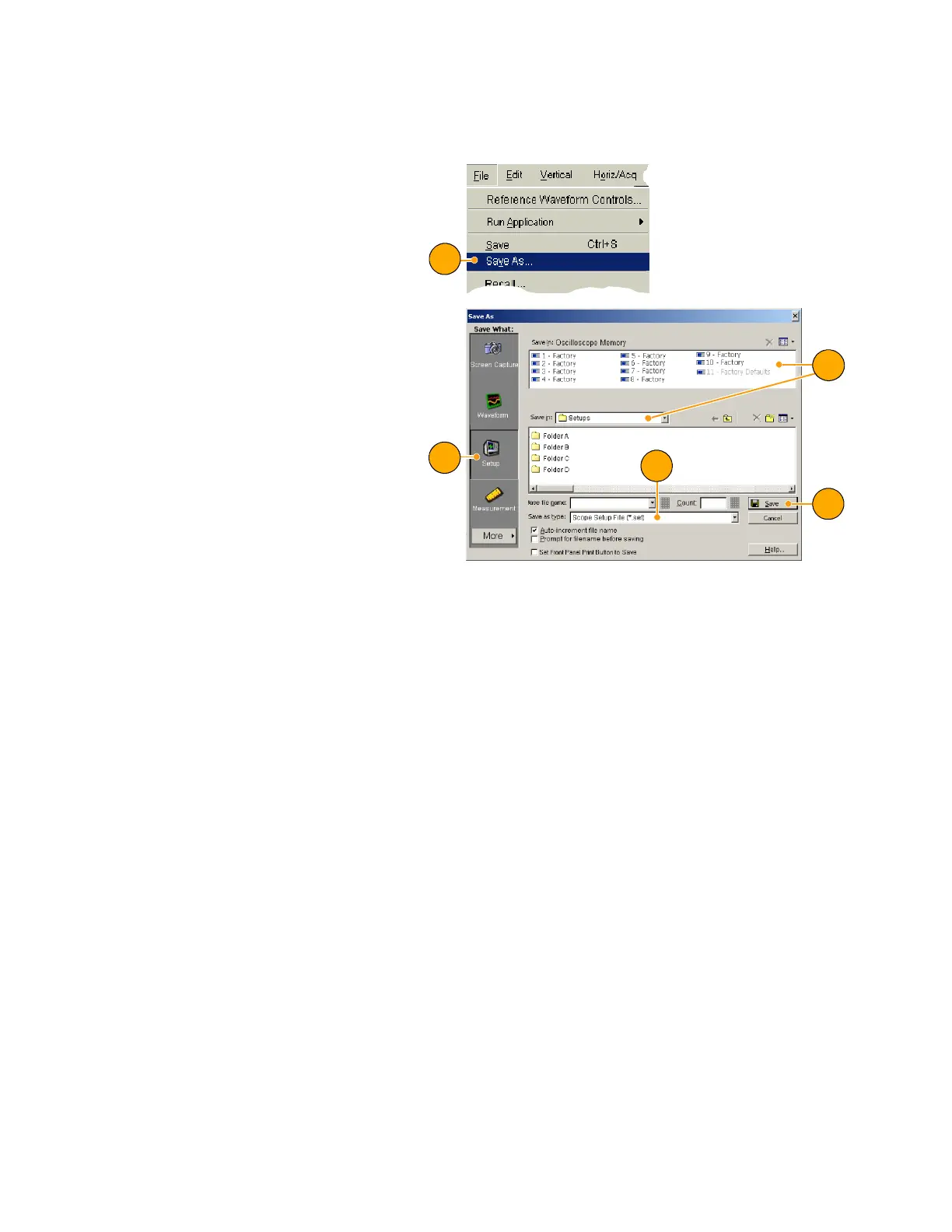

1. Select Fi le > Save or Save As....
1
2. Click Setup.
3. Select the location where you
want to save the setup. You can
either save the setup to the
instrument memory in one of the
ten setup storage locations or as
a .set file in a Windows directory.
4. Type a file nam e or use the
default name. Use the pop-up
keyboard to type a file name for a
setup saved to the instrument
memory.
5. Click Save.
4
2
3
5
Quick Tips
H If the touch screen is enabled, use the pop-up keyboard to label the setups for easy identification.
H Use Auto-increment file name to save numerous similar files wit hout having to retype the entire file name.
H To quickly save multiple setups, select Set Front Panel Print Button t o Save, and then click Save. You can
now save a setup by pushing the front panel Print button.
To Next Page
