Tektronix TDS5000B Series User Manual

Operating Basics
46 TDS5000B Series Quick Start User Manual

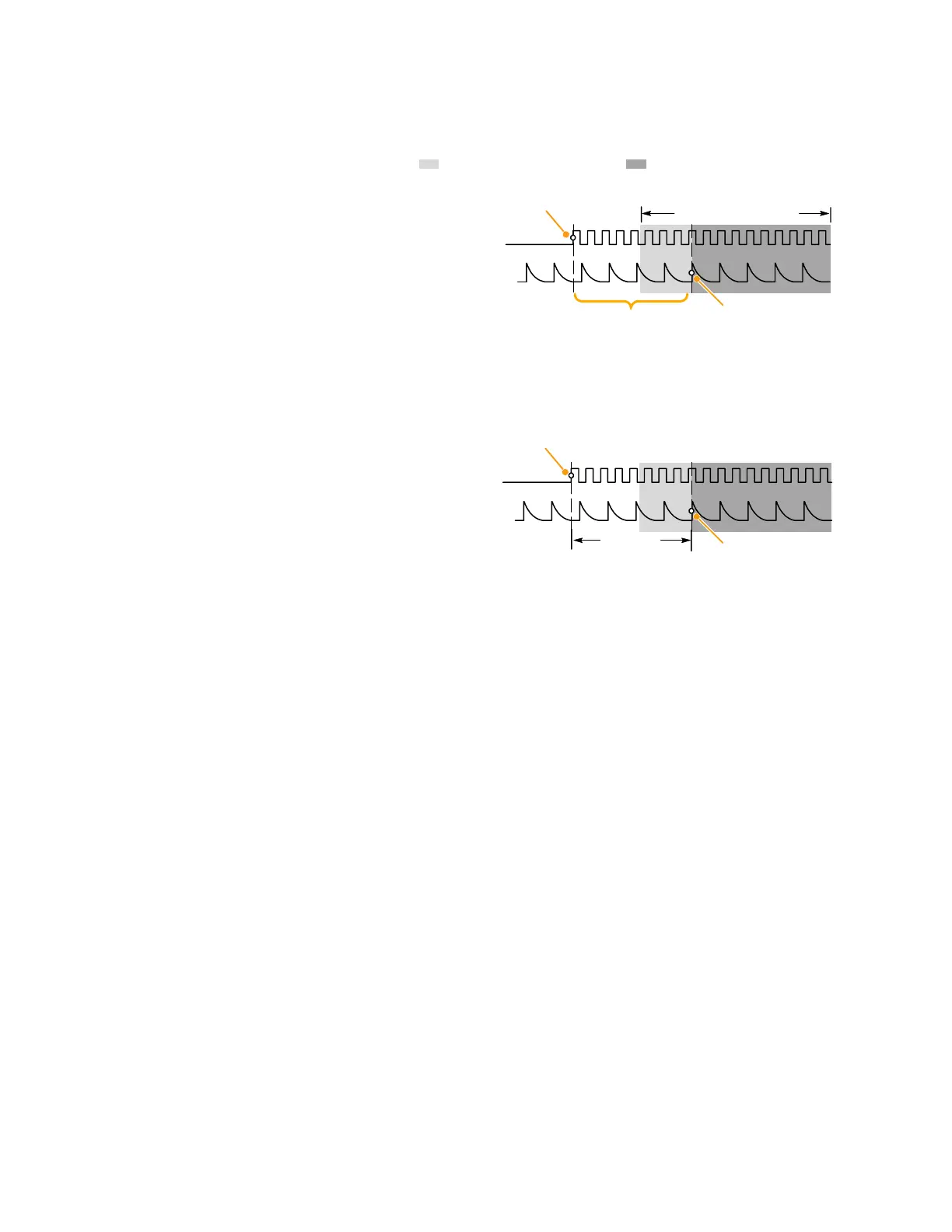

Trigger on B Event
The A trigger a rms t he instrum ent.
Posttrigger acquisition starts on the
nth B event.
B trigger point
Waiting for the nth event
(Where n=5)
A trigger source
B trigger source
Acquired
waveform record
A trigger point
Pretrigger record Posttrigger record
B Trigger After Delay Time
The A trigger a rms t he instrum ent.
Posttrigger acquisition starts on the
first B edge after t he trigger delay
time.
B trigger point
A trigger source
B trigger source
A trigger point
Trigger
delay
time
Quick Tips
H B-trigger delay time and horizontal delay time are independent functions. When you establish a trigger
condition using either the A trigger alone or the A and B triggers together, you can also use horizontal delay
to delay the acquisition by an additional amount.
H When using t he B trigger, t he A trigger can be any of the following types: Edge, Glitch, Width, or Timeout.
The B trigger type is always Edge type .
