Application Examples
TDS5000B Series Quick Start User Manual
103

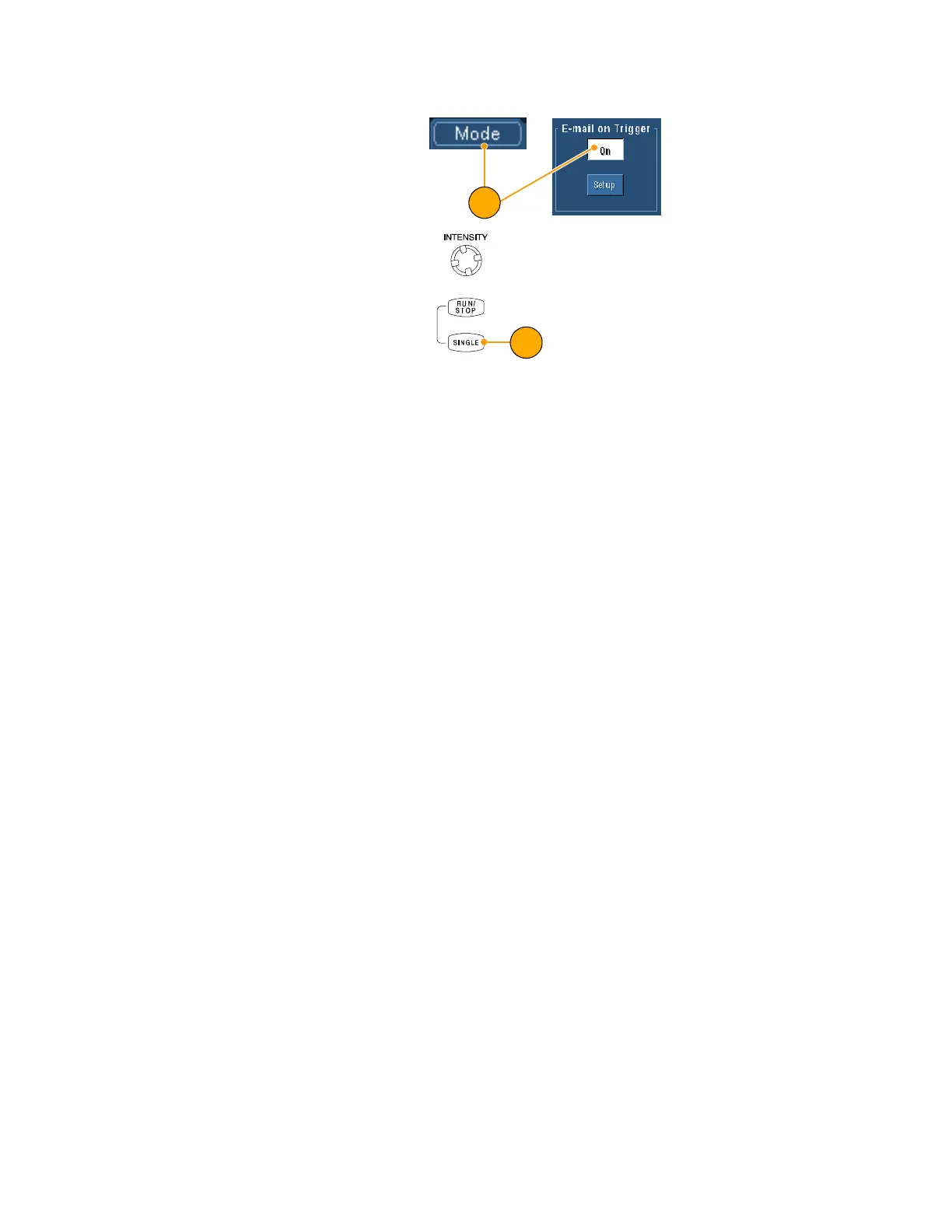

10. Click E-mail on Trigger On.For
additional information on setting
up e-mail on trigger, ref er to
page 47.
10
11. Push Single to trigger on a single
glitch.
11
Correlating Data Between a TDS5000B Series Oscilloscope
and a TLA5000 Series Logic Analyzer
Today almost every design is a high-speed design with fast clock edges and data rates. For these designs, you
need to see the analog characteristics of high-speed digital signals in relation to complex digital events in the
circuit. iView is your window into the digital and analog world. The iView capab ility seamlessly integrates and
automatically time-correlates data from Tektronix logic analyzers and oscilloscopes, so you can transfer analog
waveforms from the oscilloscope to the logic analyzer display with the click of a mouse. View time-correlated
analog and digital signals side-by-side and pinpoint t he source of elusive glitches and other problems in
moments.
The iView External Oscilloscope Cable allows you to connect your logic analyzer to a Tektronix oscilloscope,
enabling communication between the two instruments. The Add External Oscilloscope wizard, which is available
from the TLA applicat ion System menu, will guide you through the process of connecting the iView cable
between your logic analyzer and oscilloscope.
A setup window is also available to assist you in verifying, changing, and testing the oscilloscope settings.
Before acquiring and displaying a waveform, you must establish a c onnection between your Tektronix Logic
Analyzer and oscilloscope using the Add External Oscilloscope wizard.
