Display a Waveform
This section contains concepts and procedures for displaying a waveform. Detailed information is available in
the online help.
Setting the Display Style

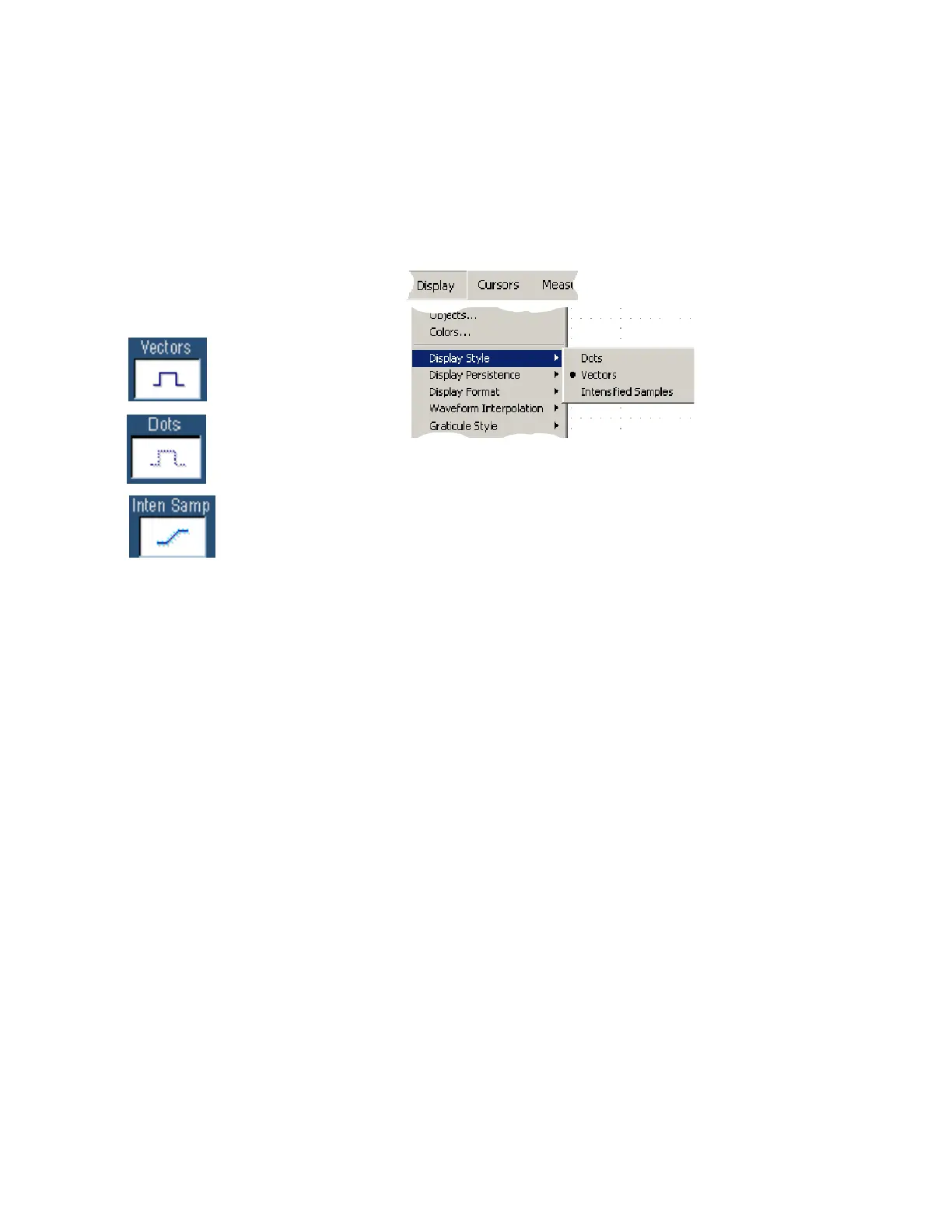

To set the display style select Display
> Di splay Style, and then select one
of the following styles:
Displays waveforms with
lines drawn between
record points.
Displays waveform re-
cord points as dots on
the screen.
Displays the actual sam-
ples as intensified dots.
Interpolated points are
shown in the waveform
color.
