Tektronix TDS5000B Series User Manual

Operating Basics
60 TDS5000B Series Quick Start User Manual

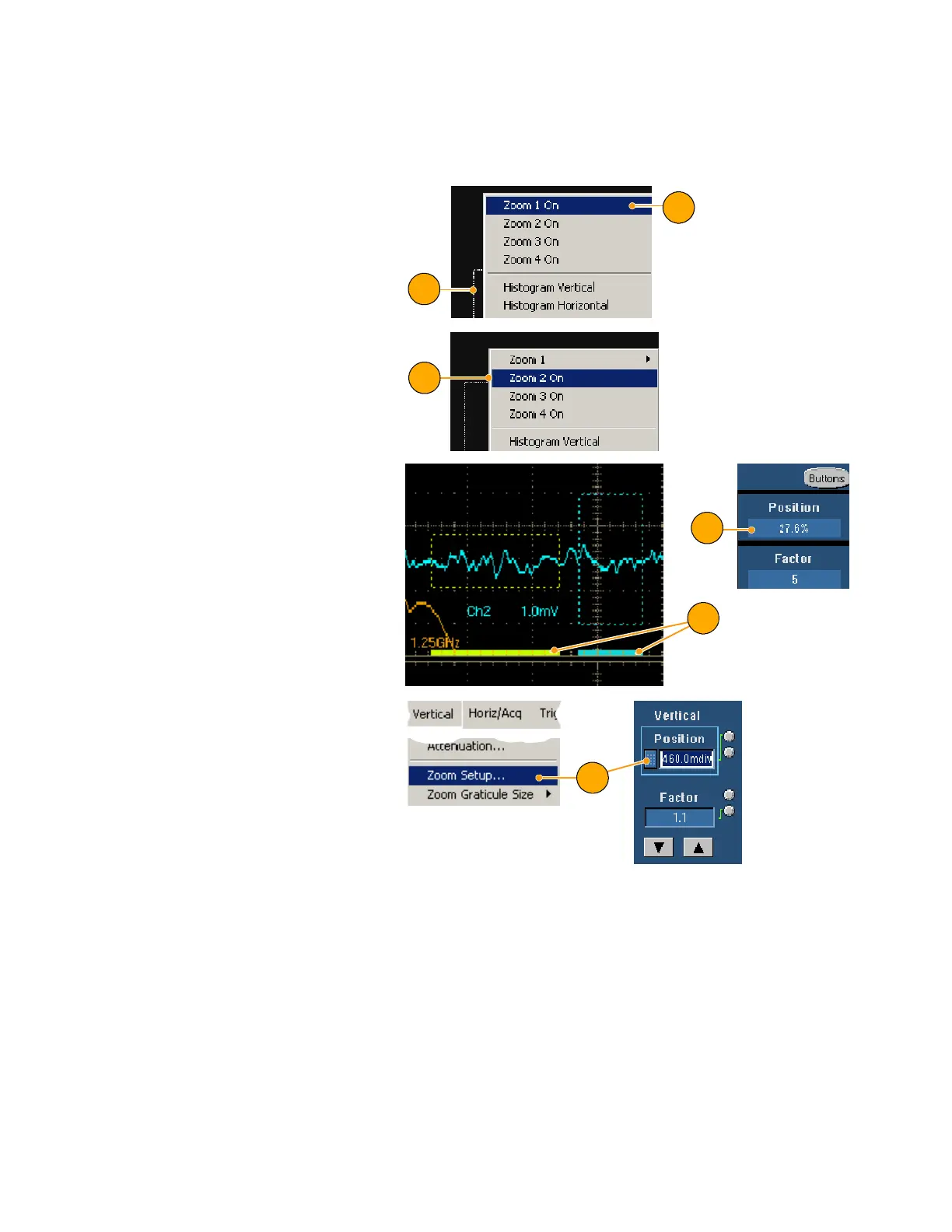

Zooming in Multiple Areas
When you want to view and compare multiple areas of one record at the same time use the following procedure.
1. Click and drag a box around the
area of the waveform that you
want to zoom.
2. Select Zoom 1 On.
1
2
3. Click and drag a box around
another area of the waveform that
you want to zoom, and then
select Zoom 2 On.
3
4. To adjust the zoomed area hori-
zontally, click the horizontal
marker be low t he Zoom box to
select the zoomed area.
5. Use the multipurpose k nobs to
adjust the horizontal position and
factor of the selected zoom area.
4
5
Window
6. To adjust the zoomed area verti-
cally, select Vertical > Zoom Set-
up... and then use the multipur-
pose knobs to adjust the Vertical
Position and Factor.
6
