Getting Started
TDS5000B Series Quick Start User Manual
17

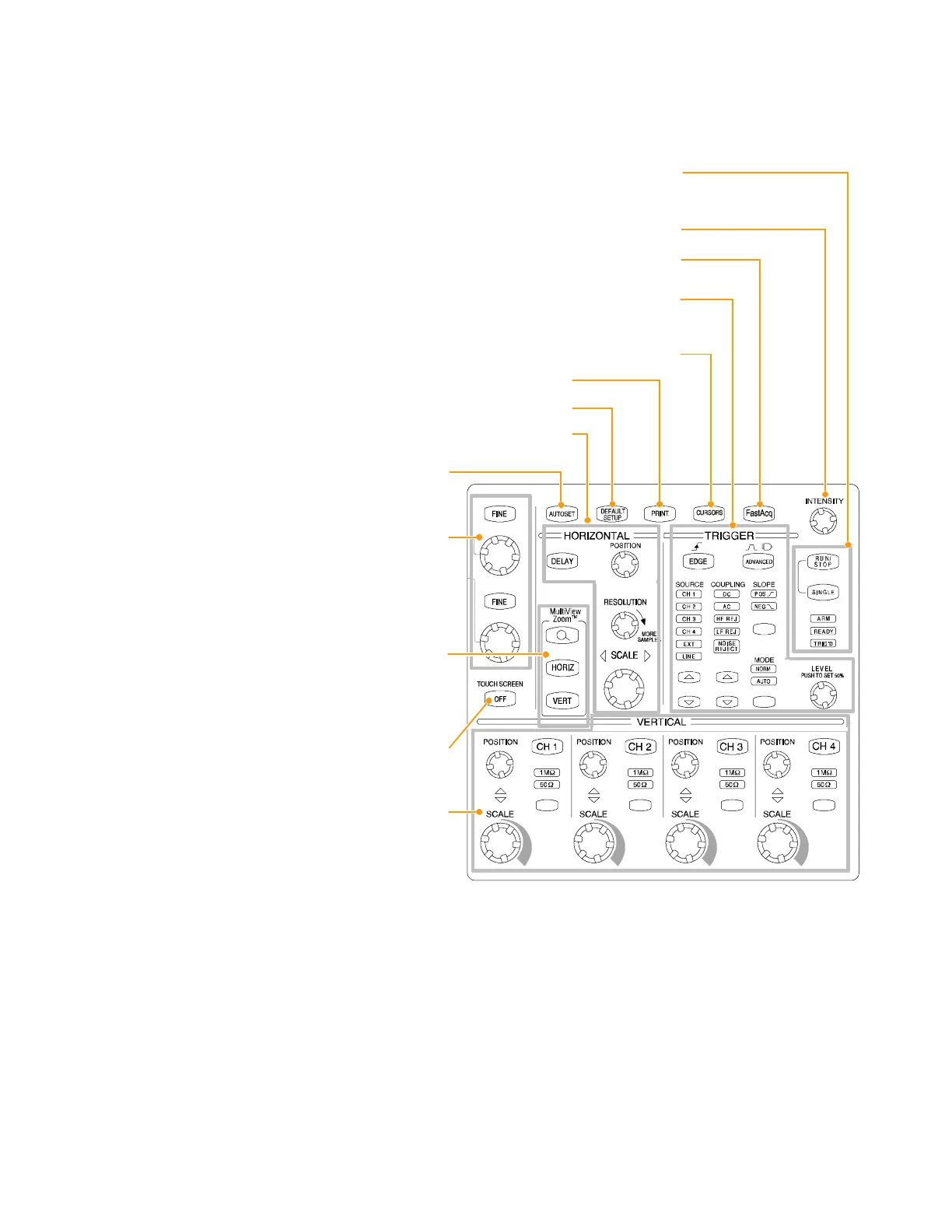

Control Panel
Push to turn the optional touch screen on and off.
Use these buttons to start and stop acquisition or start a single acquisition sequence. The
ARM, READY, and TRIG’D lights show the acquisition status. Page 44.
Push PRINT to make a hard copy. Page 99.
Push AUTOSET to automatically set up the vertical,
horizontal, and trigger controls based on selected channels.
Page 25.
Push DEFAULT SETUP to return settings to factory-default values. Page 24.
Turn the channel displays on and off. Vertically scale,
position, or change the input termination.
Horizontally scale, position, delay, and set record length resolution. Page 47.
Turn the knob to adjust waveform intensity. Page 50.
Push CURSORS to turn cursors on or off. Page 71.
Turn the multipurpose knobs to adjust parameters selected
from the screen interface. Push a Fine button to toggle
between normal and fine adjustment with the corresponding
multipurpose knob.
Push FastAcq to turn Fast Acquisition on or off. Page 35.
Use these knobs and buttons to set trigger parameters. Push ADVANCED to
display additional trigger functions. Page 42.
Push MultiView Zoom to add a magnified graticule to the
display. Push HORIZ or VERT to assign the multipurpose
knobs to the horizontal or vertical scale and position
parameters. Page 59.
