Tektronix TDS5000B Series User Manual

TDS5000B Series Quick Start User Manual 23
Operating Basics
This section contains concepts of and procedures for using the acquisition and trigger systems, information on
displaying and analyzing waveforms, and procedures for using MyScope and storing information on your
instrument. Detailed information on these topics can be found in the online help.
Acquisition
This section contains concepts of and procedures for using the acquisition system. Detailed information is
available in the online help.
Setting Up Signal Input

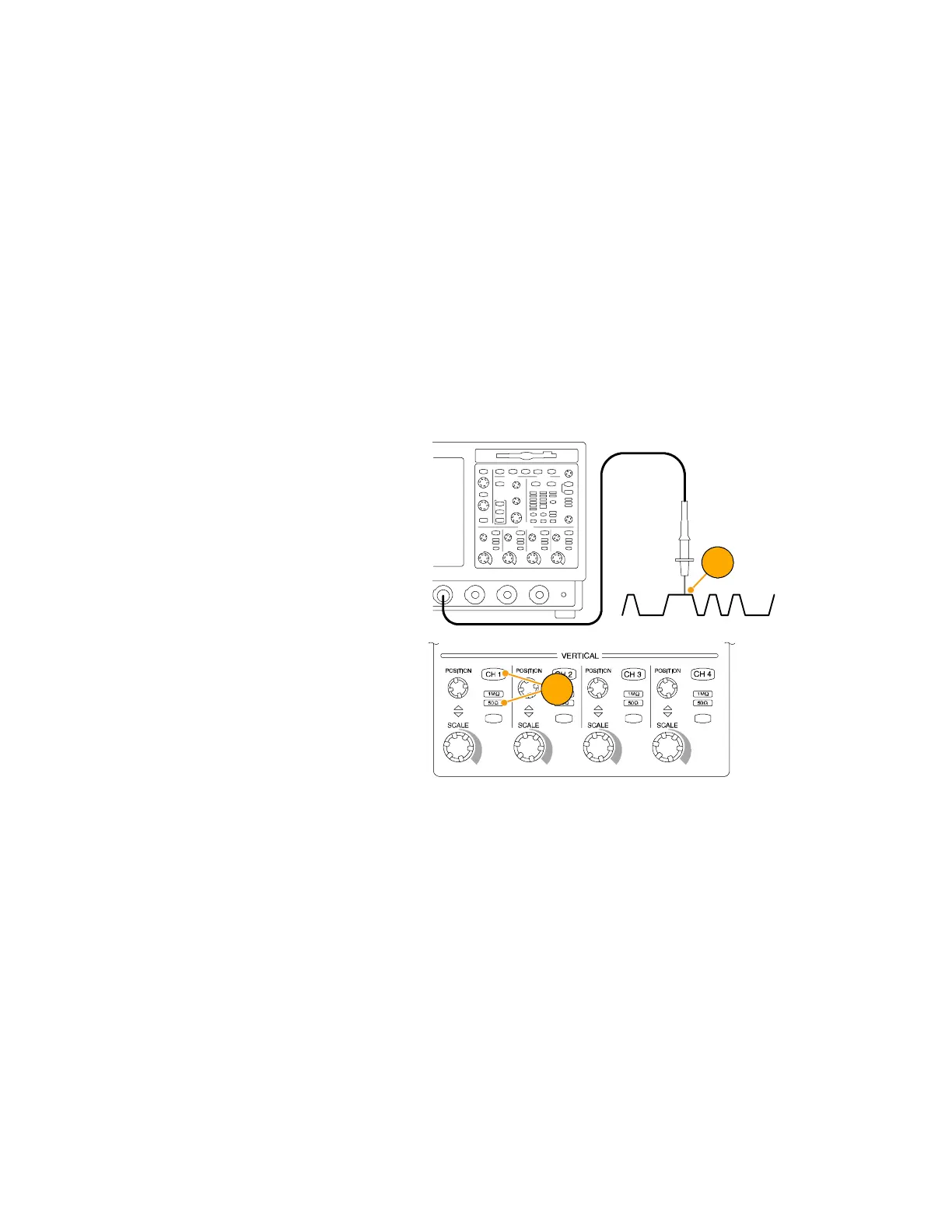

Use front -panel buttons to set up your instrument to acquire the signal.
1. Connect the probe to the input
signal source.
1
2. Select the input channel and ter-
mination by pushing the f ront-
panel buttons.
2
