Getting Acquainted with Your Instrument

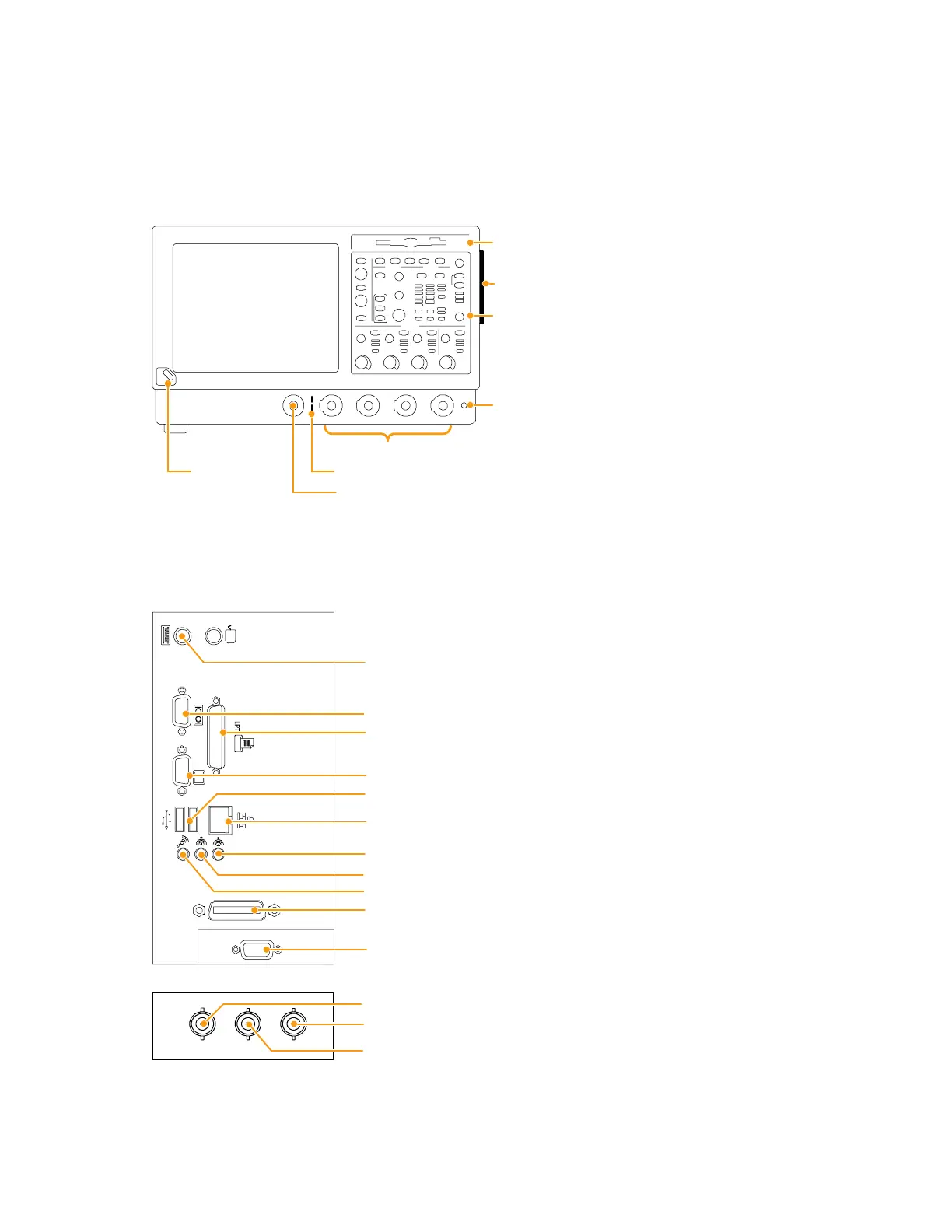

Front Panel
On/Standby
switch
Probe comp terminals
Auxiliary input
Channel inputs
Floppy disk drive
Ground terminal
Control panel
CD-RW drive
Side and Rear Panels
Keyboard
LAN
Parallel Port
GPIB
Scope VGA Output
Video (Extended Desktop)
COM 1
Audio line in
Audio line out
Microphone in
USB (Mouse)
Timebase reference input (EXT REF)
Trigger signal output (AUX OUT)
CH 3 signal output (SIGNAL OUT)
Side panel
Rear panel
Note. Plug USB devices directly into the
USB connectors on the instrument to
imporve reliability rather than connecting
the devices serially. If the instrument front
panel and /or touch screen do not
respond, press the On/Standby switch for
5 seconds to cycle power.
