Operating Basics
62 TDS5000B Series Quick Start User Manual
Analyzing Waveforms
Your instrument features cursors, automatic measurements, statistics, histograms, math, spectral analysis, and
advanced pass/fail tests to assist you in analyzing waveforms. This section contains concepts and procedures
for analyzing waveforms. Detailed information is available in the online help.
Taking Automatic Measurements

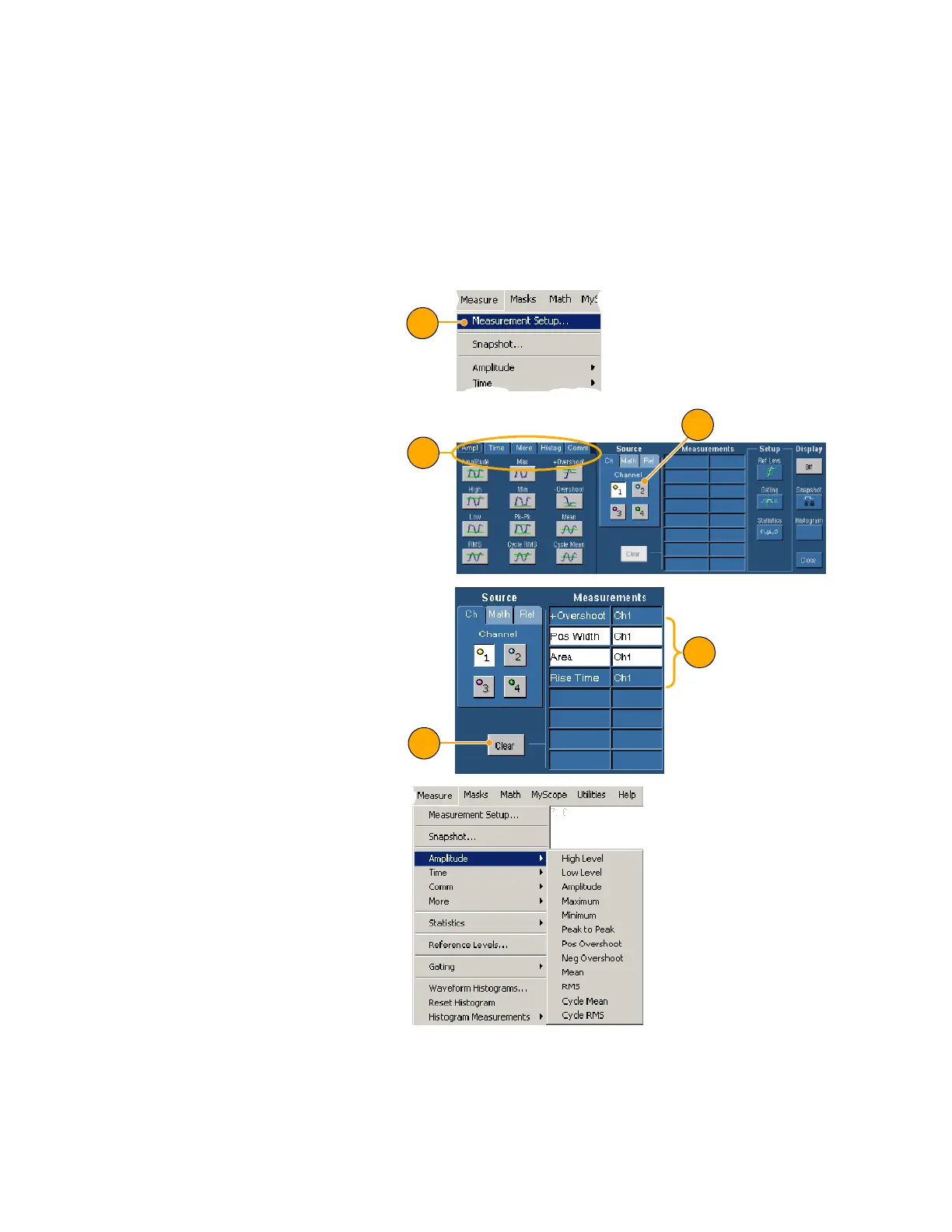

1. Select M easure > Measurement
Setup....
1
2. Select the channel, math or refer-
ence waveform that you want to
measure.
3. Using the ta bs, select up to 8
measurements in five different
categories.
2
3
4. To remove the last measurement,
click Clear.
5. To remove multiple measure-
ments, click and drag to select
the measurements, and then click
Clear.
4
5
You can also choose a measurement
for the selected waveform directly in
the Measure menu. The available
measurements are listed beginning on
page 63.
To Next Page
