Application Examples
104 TDS5000B Series Quick Start User Manual

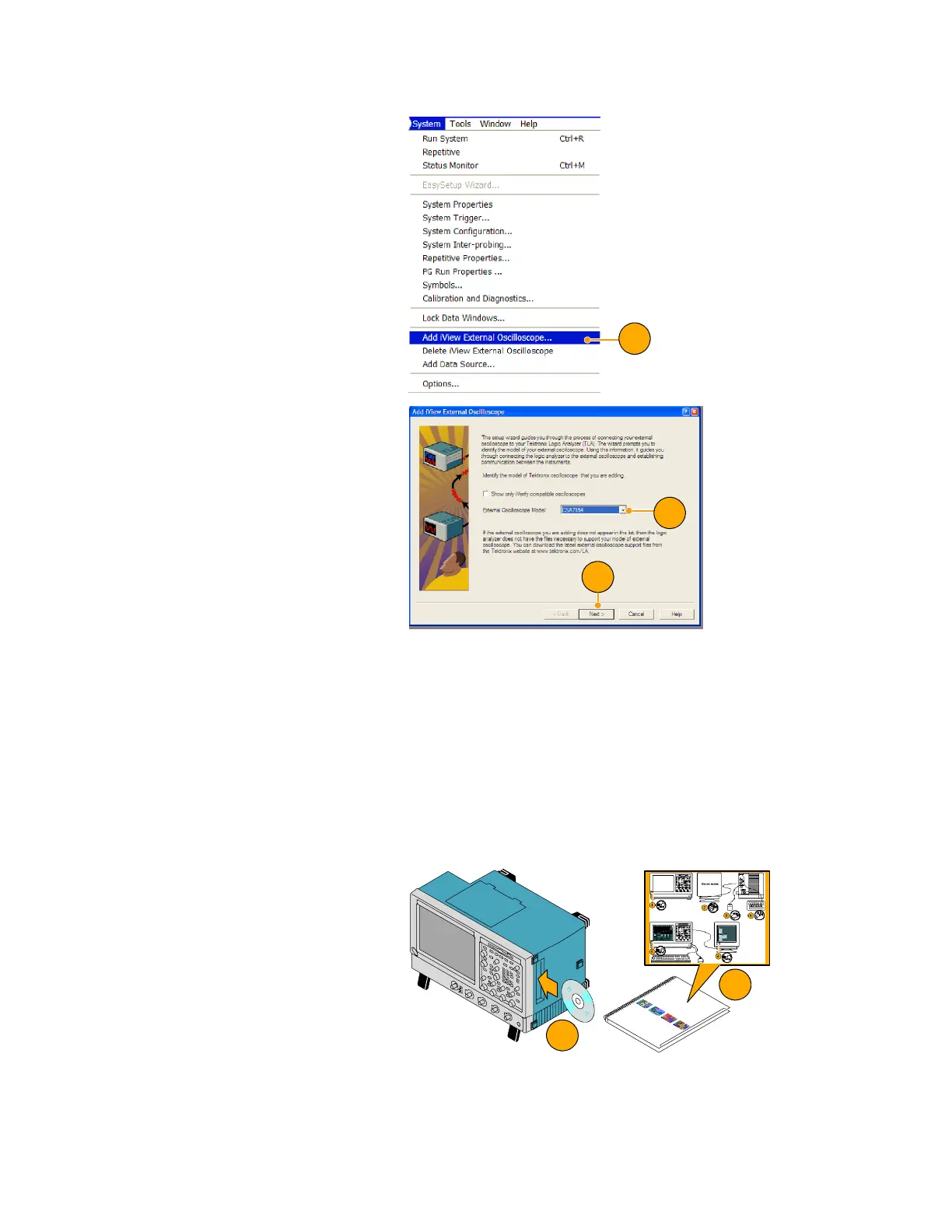

1. Select Add iView External Oscil-
loscope... from the logic analyzer
System menu.
1
2. Select your model of oscillo-
scope.
3. Follow the on-screen instructions
and then, c lick Next.
4. See your Tektronix Logic Analyzer
documentation for more informa-
tion on corre lating data between a
TDS5000B Series Oscilloscope
and a Tektronix Logic Analyzer.
2
3
Using the Extended Desktop and OpenChoice Architecture for
Efficient Documentation
Engineers often need to docume nt their lab work for future reference. Instead of saving screen shots and
waveform data to a floppy disk, and then generating a report later, try using the TDS5000B OpenChoice
architecture to document your work in real time.
To make your instrument the center of your design and documentation process, use the following procedure.
1. Load Microsoft Word or Excel on
your instrument.
2. Connect a second monitor. (Fol-
low the procedure on page 11.)
1
2
