Tektronix TDS5000B Series User Manual

Operating Basics
TDS5000B Series Quick Start User Manual
69

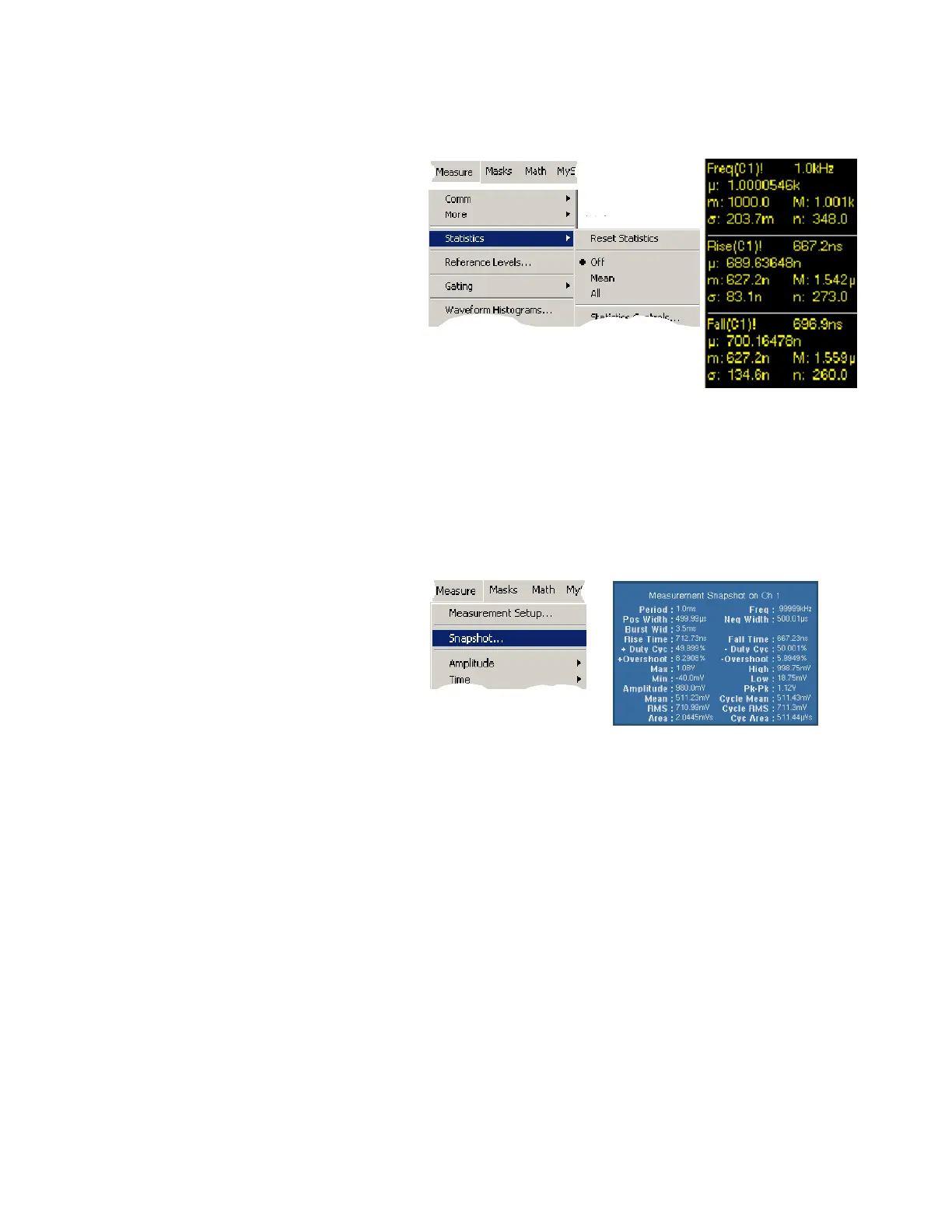

Statistics
Statistics turn on automatically with
measurements. Statistics characterize
the stability of the measurement.
To change the sta tistics that are
displayed, select Measure > Statistics
and then select Mean or All.(All
includes min, max, mean, standard
deviation, and population.) To remov e
statistics select Off.
Quick Tips
H In FastFrame mode when doing a single sequence acquisition, statistics represent measurements over the
entire frameset.
Snapshot
To see a one-time view of all valid
measurements, select
Measure > Snapshot.
Quick Tip
H To access a shortcut measurement menu, right-click the measurement readouts.
