Tektronix TDS5000B Series User Manual

Operating Basics
68 TDS5000B Series Quick Start User Manual
Customizing an Automatic Measurement
You can customize automatic measurements by using gating, modifying measurement statistics, adjusting the
measurement reference levels, or taking a snapshot.

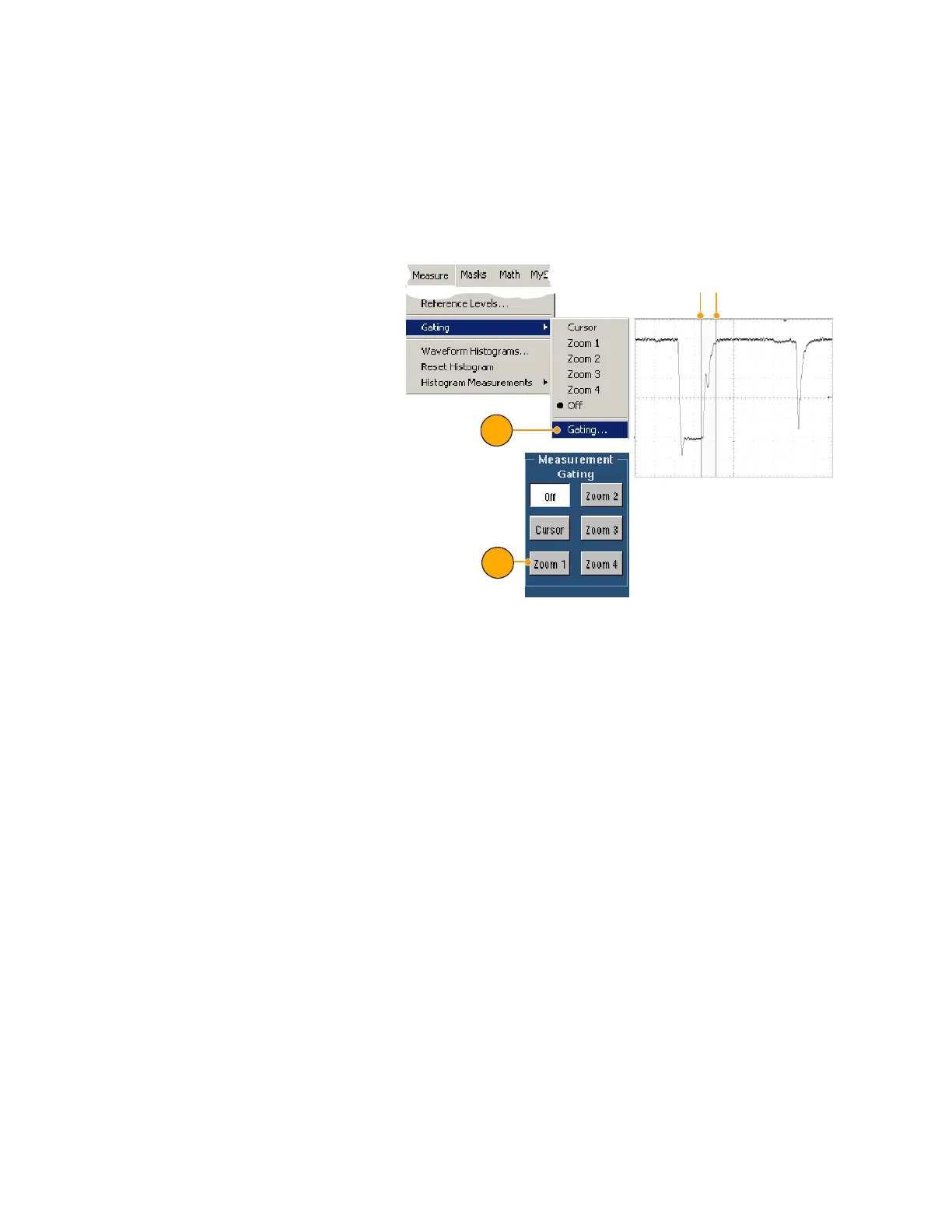

Gating
Use Gating to confine the measure-
ment to a certain portion of a wave-
form.
1. Select M easure > Gating.
2. Position the gates by doing one of
the following:
H Click Cursor to set the gated
area to the area between the
cursors.
H Click Zoom (1-4) to set the
gated area to t he Zoom(1-4)
graticule.
2
1
Gated region
