Getting Started
8 TDS5000B Series Quick Start User Manual
Operating Requirements

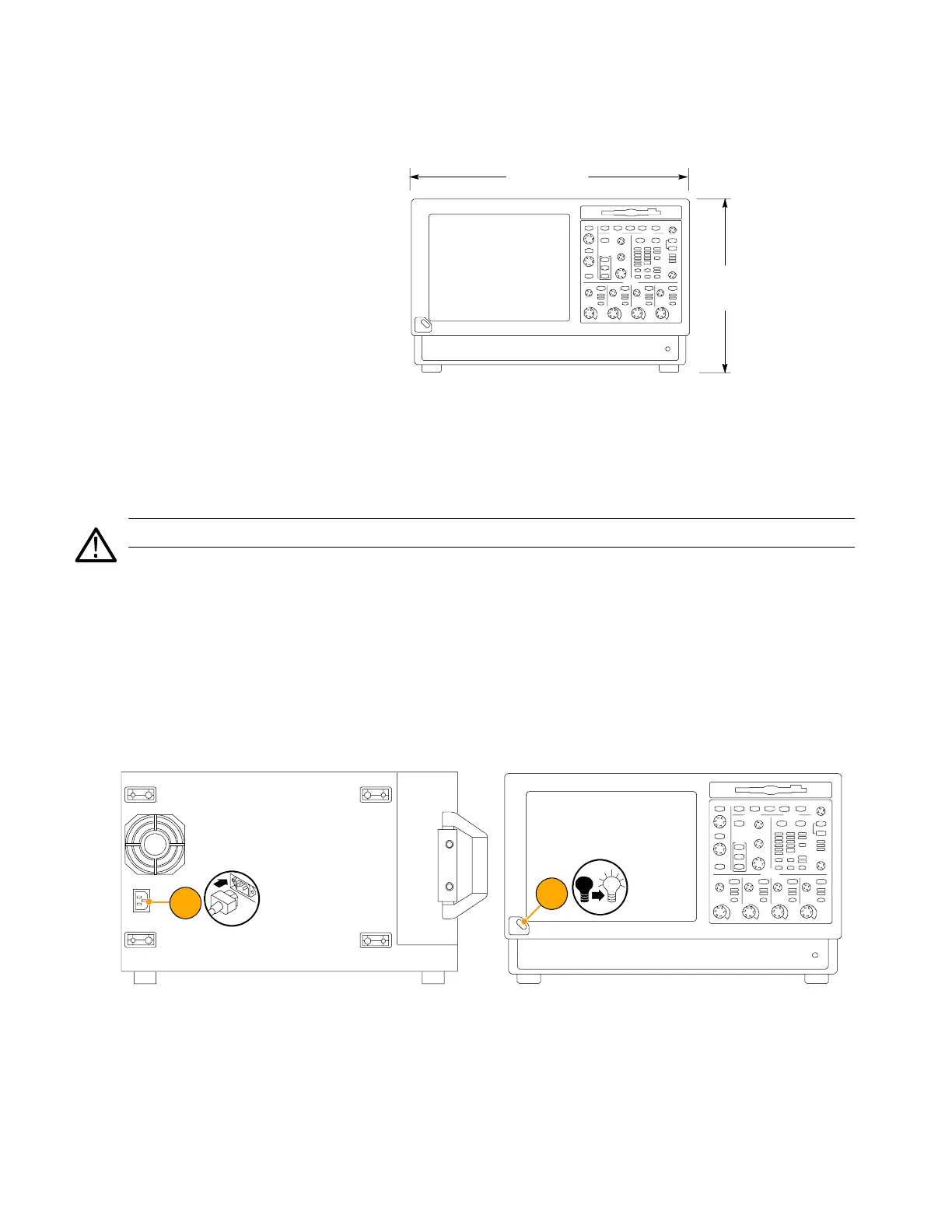

1. Place the instrument on a cart or
bench, observing clearance re-
quirements:
H Top, R ear, Front, and Right
Side: 0 in (0 mm)
H Left Side: 3 in (76 mm)
H Bottom: 0.75 in (19 mm)
minimum or 0 in (0 mm)
standing on feet, flip stand
down
2. Before operating, ensure that the
ambient temperature is between
+41 °F to +113 °F(+5°Cto
+45 °C).
(265.94 mm)
19.00 in
(482.00 mm)
10.47 in
CAUTION. To ensure proper cooling, keep the bottom and sides of the instrument clear of obstructions.
Powering On the Instrument
Power Supply Requirements
Source voltage and Frequency 100 –240 V
RMS
±10%, 47–63 Hz or 115 V
RMS
±10%, 360–440 Hz
Power Consumption < 220 watts
1
2
To Next Page
