Getting Started
TDS5000B Series Quick Start User Manual
21

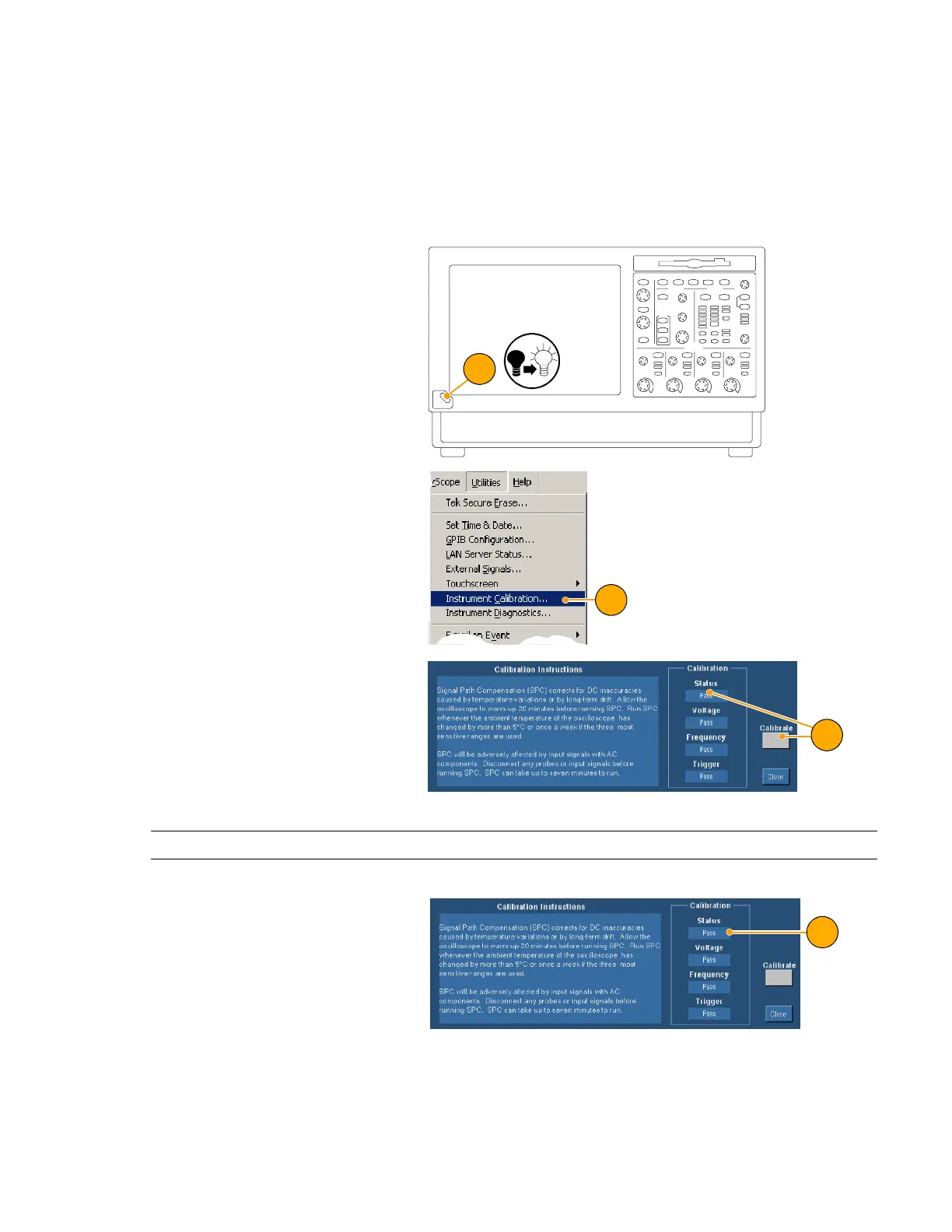

Signal Path Compensation
Use this procedure if t he te mperature has changed more than 5° C since the last signal path compensation.
When making measurements at vertical scale settings less than or equal to 5 mV/div, perform the signal path
compensation once a week. Failure to do so may result in the instrument not meeting warranted performance
levels at those volts/div settings.
1. Prerequisites: instrument pow-
ered on for 20 minutes, and all in-
put signals removed.
1
2. Select Instrument Calibration.
2
3. If the status is Warm-up, wait un-
til the status changes to Temp.
Then click Calibrate to start the
calibration. Calibration may take
10 to 15 minutes.
3
NOTE. Signal Path Compensation is the only calibration that is accessible to you.
4. If after calibration the status indi-
cator does not display Pass, re-
calibrate the instrument, or have
the instrument serviced by quali-
fied service personnel.
4
