Operating Basics
TDS5000B Series Quick Start User Manual
47

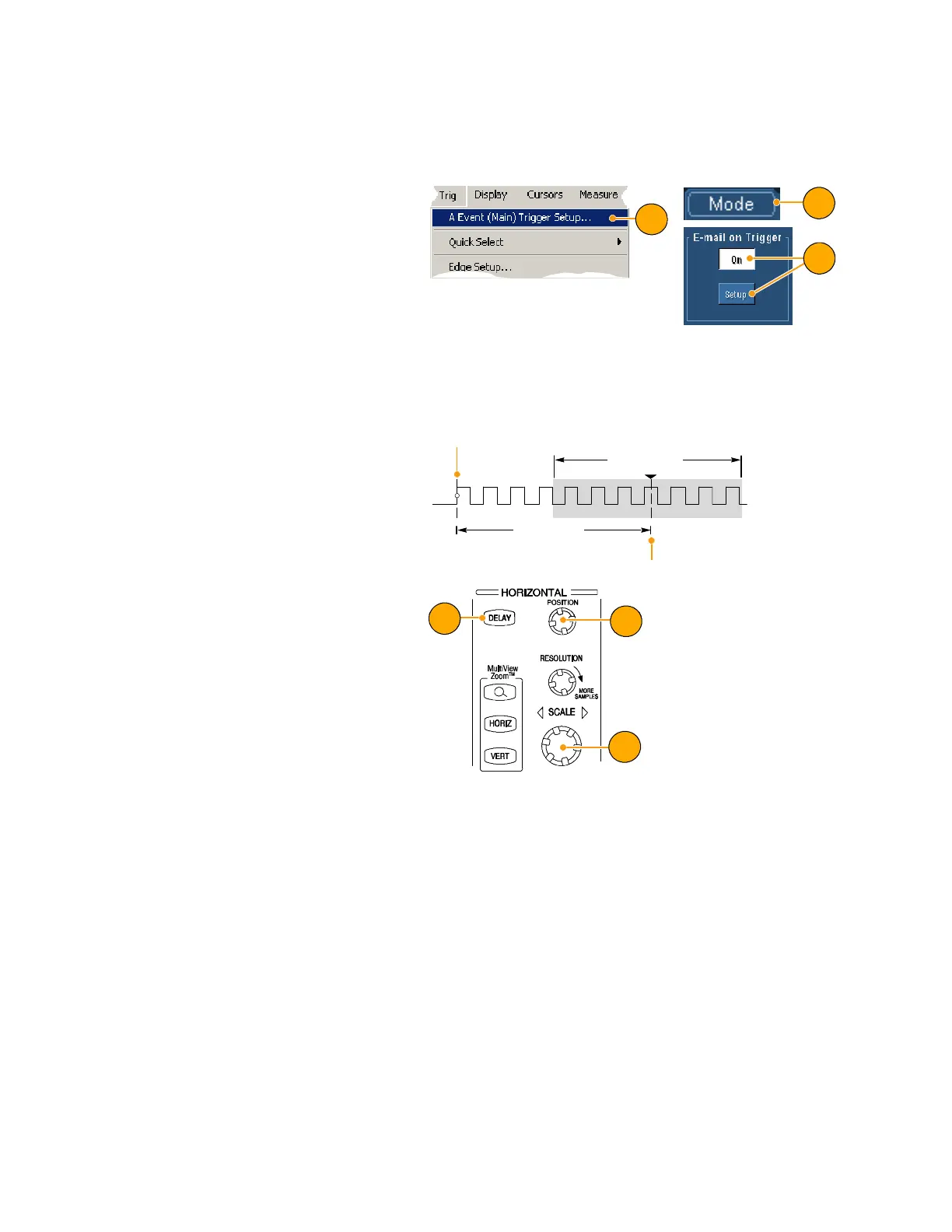

Sending E-mail on Trigger
You must configure e-mail on event (see page 85) before performing the following procedure.
1. Select Tri g > A Ev ent (Main) Trig-
ger Setup....
2. Select the Mode tab.
3. Under E-mail on Trigger, click On,
andthenclickSetup. See page 85
for setup proc edure.
1
2
3
Using Horizontal Delay
Use horizontal delay to acquire
waveform detail in a region that is
separated from the trigger location by
a significant interval of time.
Delay time
Trigger
point
Acquired
waveform
Expansion point
1. Push DELAY.
2. Adjust the delay time with the
horizontal POSITION control, or
enter the delay time in the control
window.
2
3. Adjust the horizontal SCALE to
acquire the detail that you need
around the delay expansion point.
3
Quick Tips
H Use Zoom a nd Horizontal Delay together to magnify a delayed acquisition.
H Toggle Horizontal Delay on and off to quickly compare signal details at t wo different areas of interest, one
near the trigger location and the other centered at the delay time.
To Next Page
