Checking Trigger Status

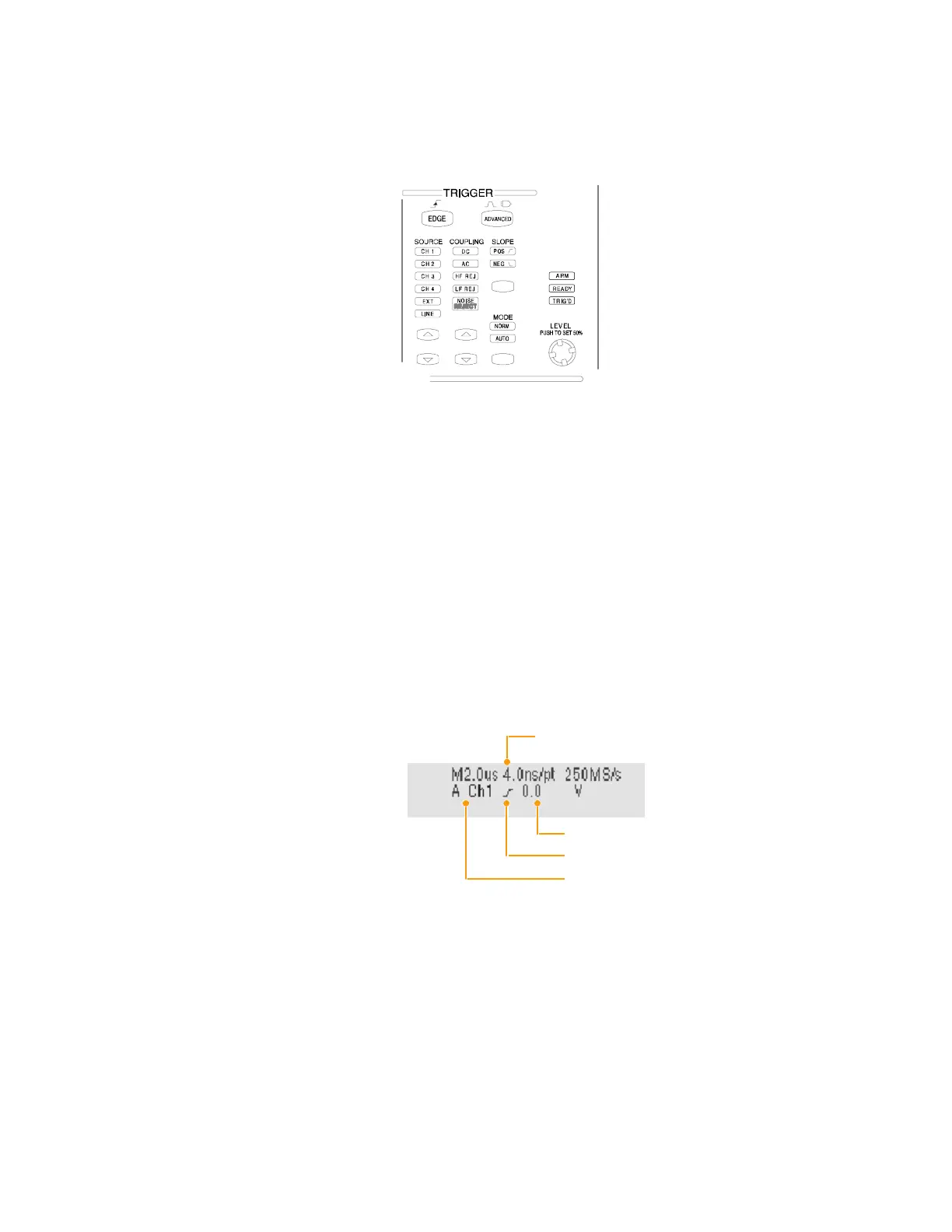

You can check the trigger status from the status lights on the front panel or from the acquisition readout.
Check the ARM, READY, and TRIG’D
front-panel controls to det ermine the
trigger status.
H If TRIG’D is on, the instrument
has recognized a valid trigger and
is filling the posttrigger portion of
the waveform.
H If READY is on, the instrument
can accept, and is waiting for, a
valid trigger to occur. Pretrigger
data has been acquired.
H If ARM is on, the trigger circuitry
is filling the pretrigger portion of
the waveform record.
H If both TRIG’D and READY a re on,
a valid A event trigger has been
recognized and the instrument is
waiting for a delayed trigger.
When a delayed trigger is
recognized, the posttrigger
portion of the delayed waveform
will fill.
H If ARM, TRIG’D, and READY are
off, ac quisitions have stopped.
To quickly determine the settings of
some key trigger parameters, check
the Trigger readout at the bottom of
the display. The readouts differ for
edge and the advanced triggers.
Time base
A trigger source = Ch 1
Trigger slope = rising edge
Trigger level
