TGW Natrix - Replace Return Pulley ∅ 62; Replace Return Pulley ∅ 62 [5]

Natrix IOM
Replace Return Pulley
∅
62

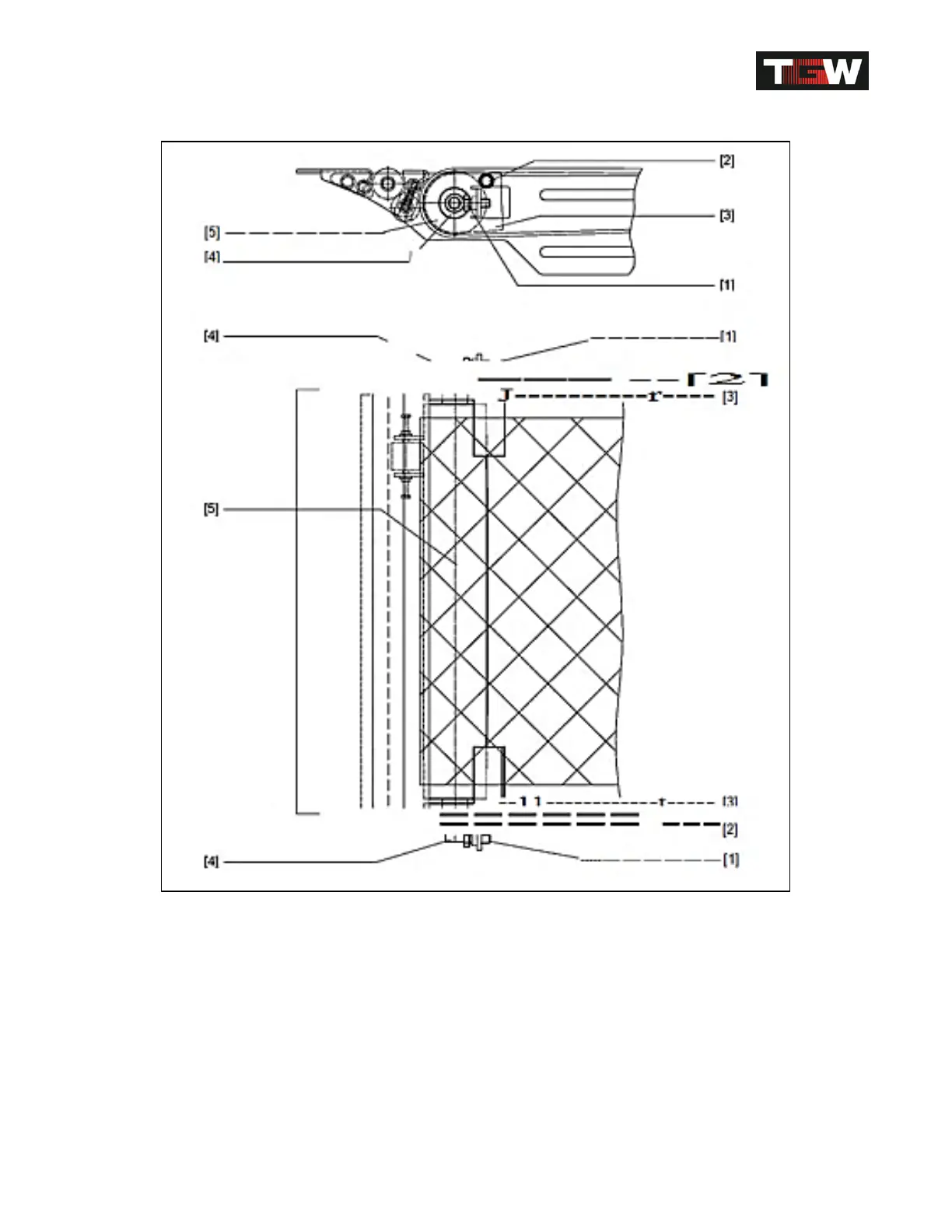

Replace return pulley
∅
62 [5]
Remove tension from conveyor belt.
Loosen screws [2] and remove protective cover [3].
Loosen screw [4].
Remove return pulley [5].
Install new return pulley again in reverse order.
Revision Date: 12/10/2014 Page 105 of 111
