Natrix IOM
Assembly of modules
Mount module frame to supports.
Use provided screw compression
connections for pneumatic tubes.

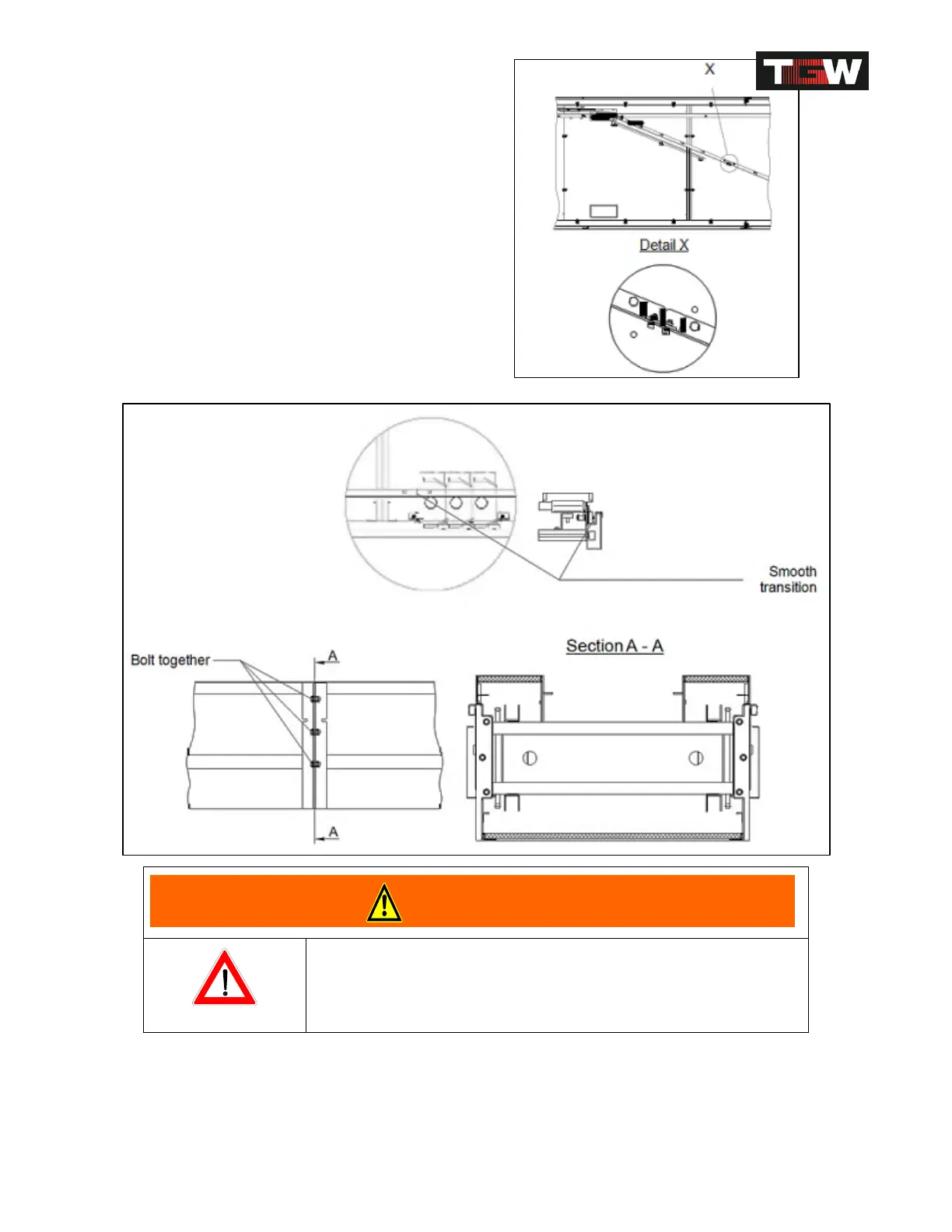

Attach the guide bracket (Detail X).
Screw and adjust the joints and struts.
• Adjust and check the bracket and guides.
•
Grind the frame butt ends and guide transitions as required.
• These activities must be performed for both the top
running side and the bottom chain return side.
Revision Date: 12/10/2014 Page 36 of 111
