TGW Natrix - Replace Divert Switch Assembly [6]

Natrix IOM
Replace Divert Switch Assembly [6]
Turn off air supply and disconnect by loosen screws [1] and remove side panel [2].
Remove air and electrical hook ups from solenoid [3] and [4].
Remove mounting hardware from switch plate [5].
Lower divert switch assembly [6] downwards.
Install new divert switch again in reverse order.
Attention: Remove enough slats for clear visibility of switch gap.
Check transitions [7] between divert switch and guides.

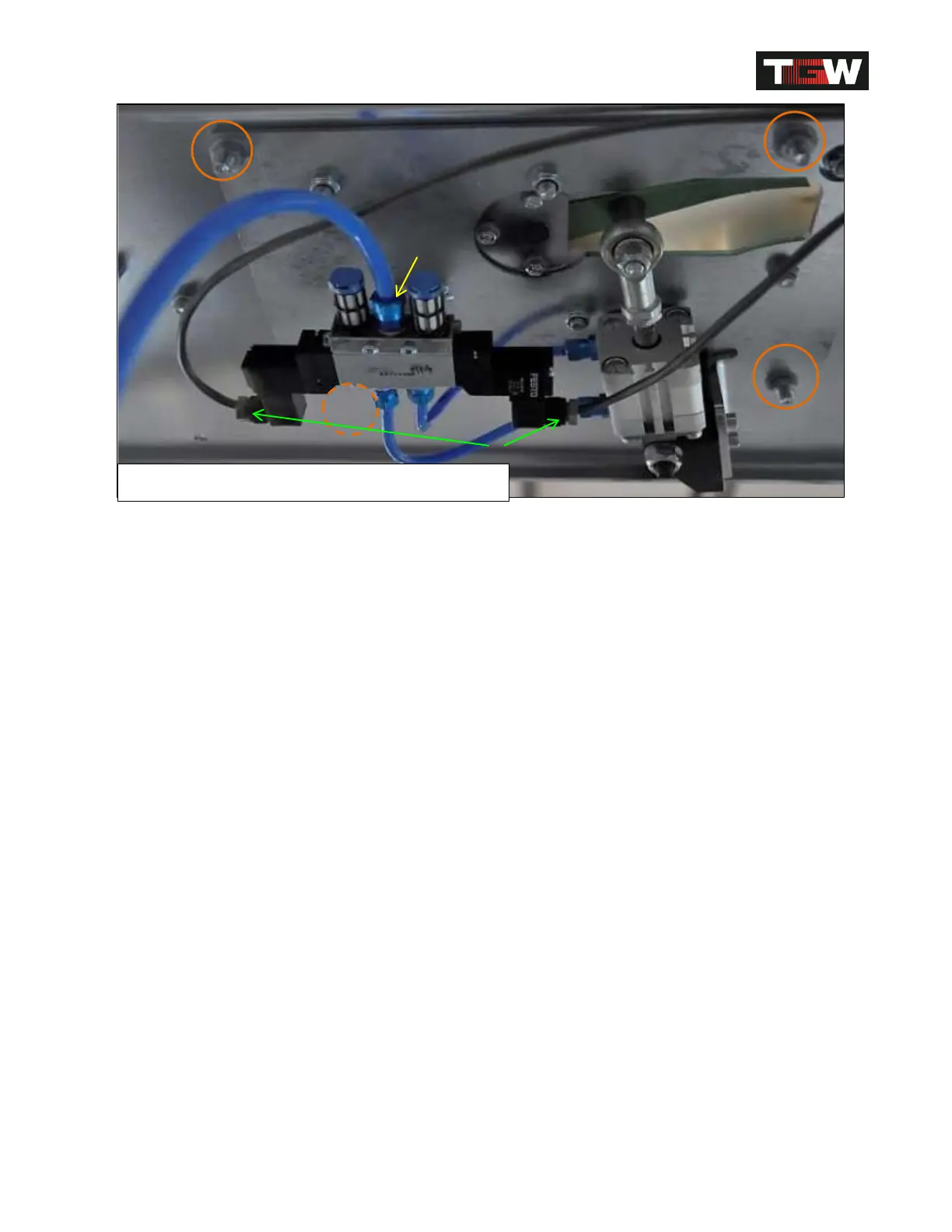

Divert Switch Bottom View
5
5
5
5
3
4
Revision Date: 12/10/2014 Page 69 of 111
