TGW Natrix - Install the Dirt Pan (Optional Accessory)

Natrix IOM

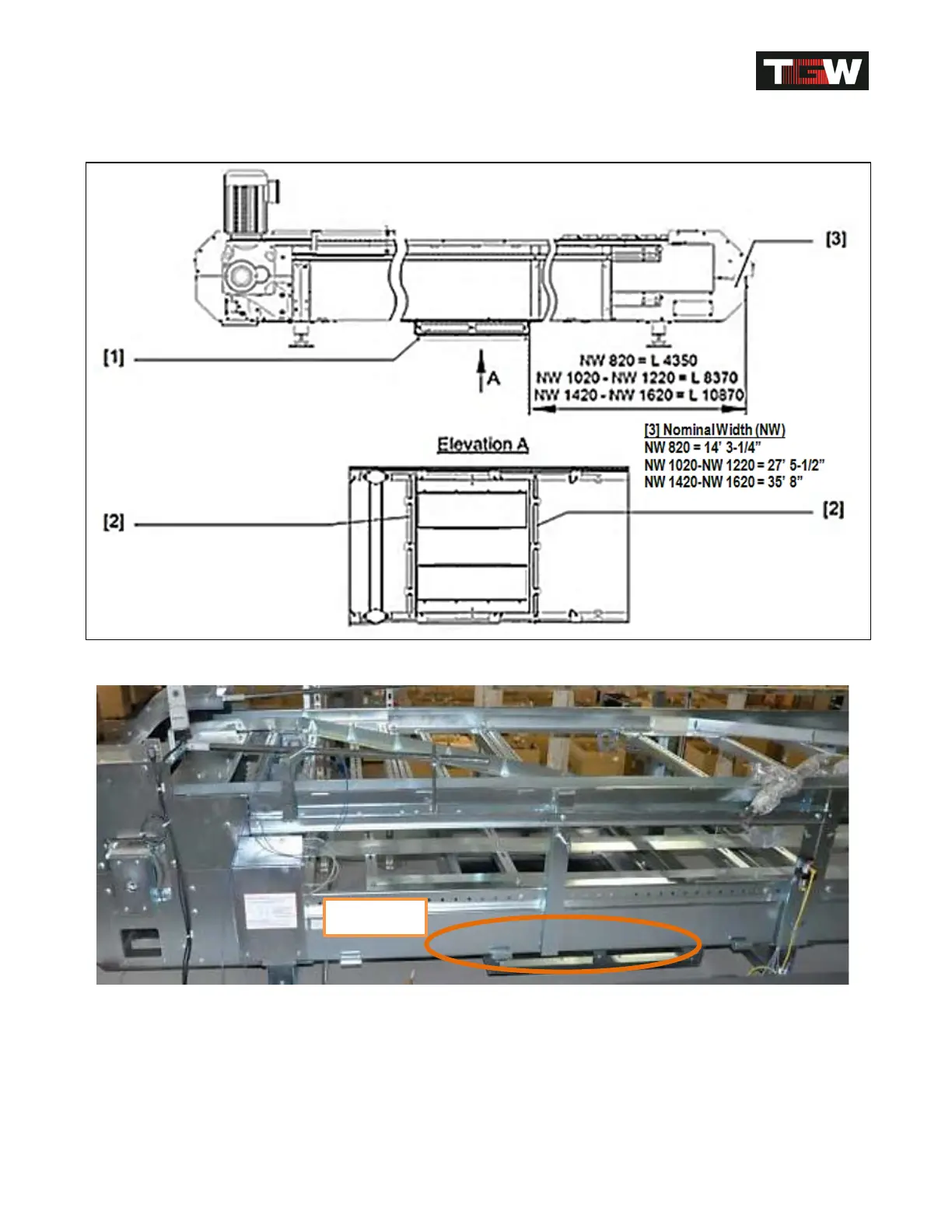

Install the dirt pan (Optional Accessory).
• Attach the dirt pan [1] using cross-struts [2].
Please Note: Observe the distance between the return pulley [3] and dirt pan [1].
Dirt Pan
Revision Date: 12/10/2014 Page 52 of 111
