Natrix IOM
Shoe Position Safety Device Installation

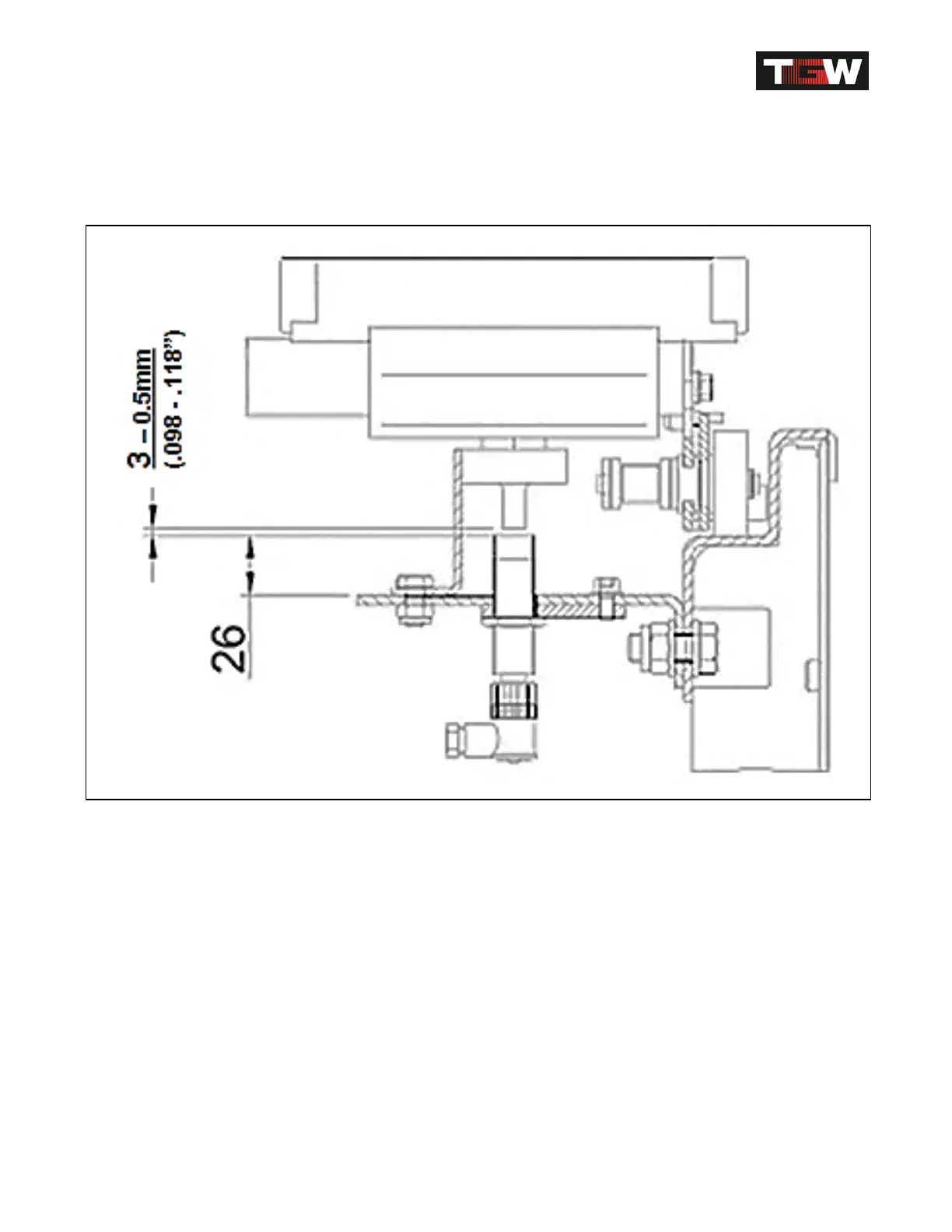

Install the proximity switch.
•
Adjust the sensing distance to 3mm (1/8”).
(Sensor unit is located after shoe return crossing under the return side of sorter.)
Note: Clearance must be properly set to sense shoe guide peg positions.
If shoes are not in diverting return position, sorter motor must shut down.
Revision Date: 12/10/2014 Page 50 of 111
