TGW Natrix - Natrix Installation; Installation of Natrix Supports

111 pages

Save Page as PDF

To Next Page

To Previous Page

Natrix IOM

Natrix Installation

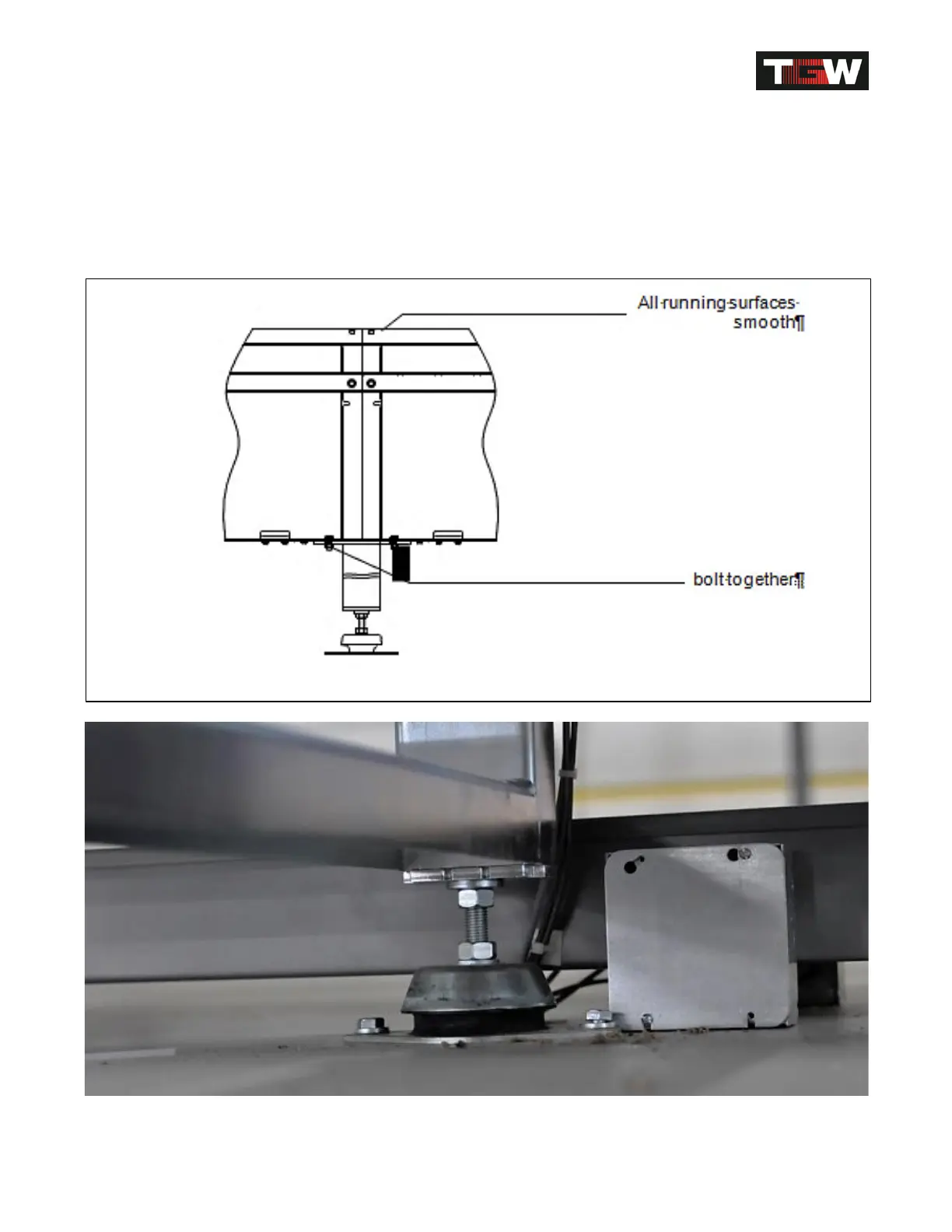

Installation of Natrix supports

Drive frame on supports.

As required, insert the filling plate between the supports and the frame to obtain smooth

transitions of the running surfaces.

Revision Date: 12/10/2014 Page 35 of 111
