TGW Natrix - Main Air Regulator

To Next Page

To Previous Page

Natrix IOM

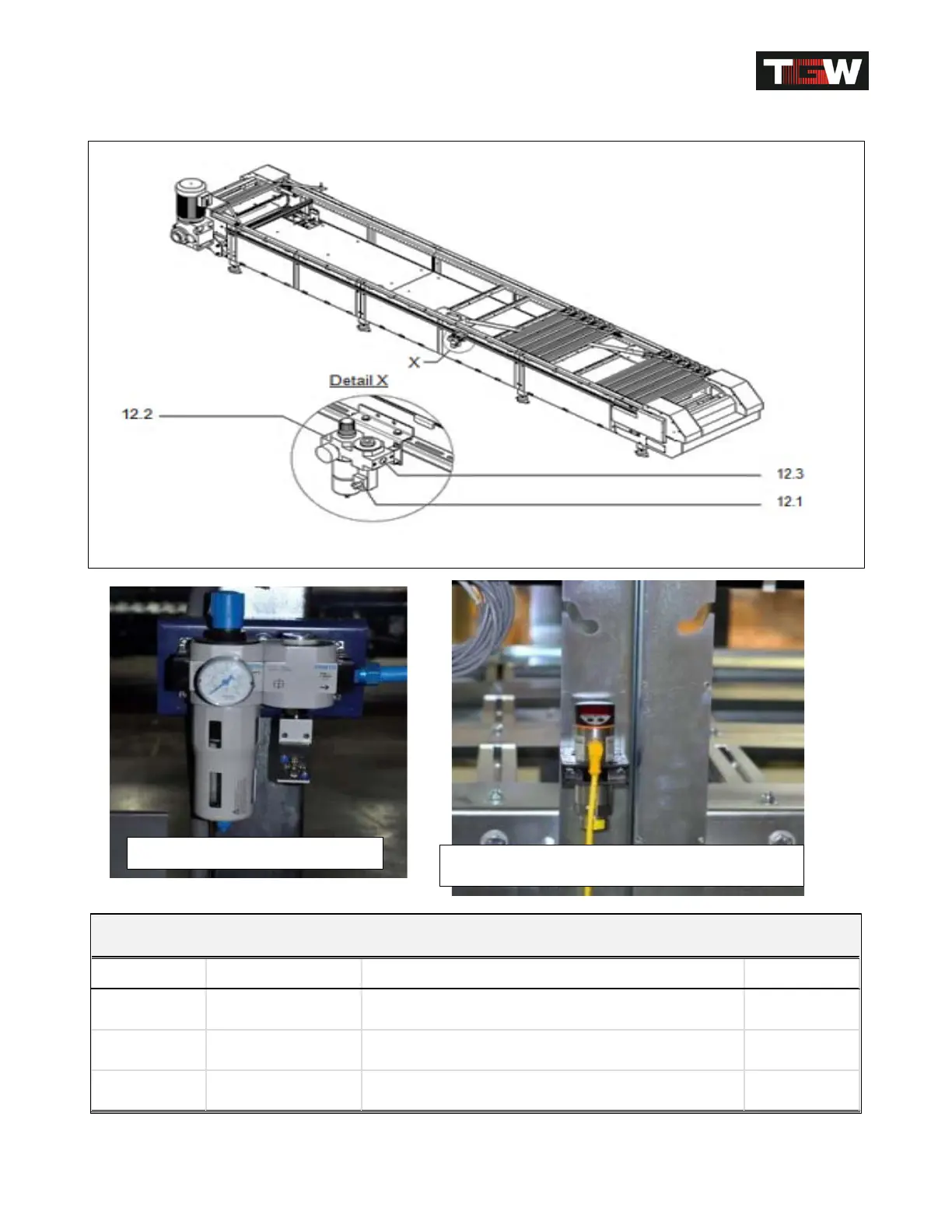

Main Air Regulator

Balloon No. Item Description Identifier

12.1 00076660 SOCKET PEV-1/4-WD-LED-24 A

12.2 00087295 MAINTENANCE UNIT LFR-1/2-D-MAXI-KE A

12.3 00028573 PLASTIC TUBE PL-13(BLUE) C

Main Air Regulator Replacement Parts

Main Air Regulator Detail X

Recommend low pressure disable switch.

Revision Date: 12/10/2014 Page 89 of 111
