Natrix IOM

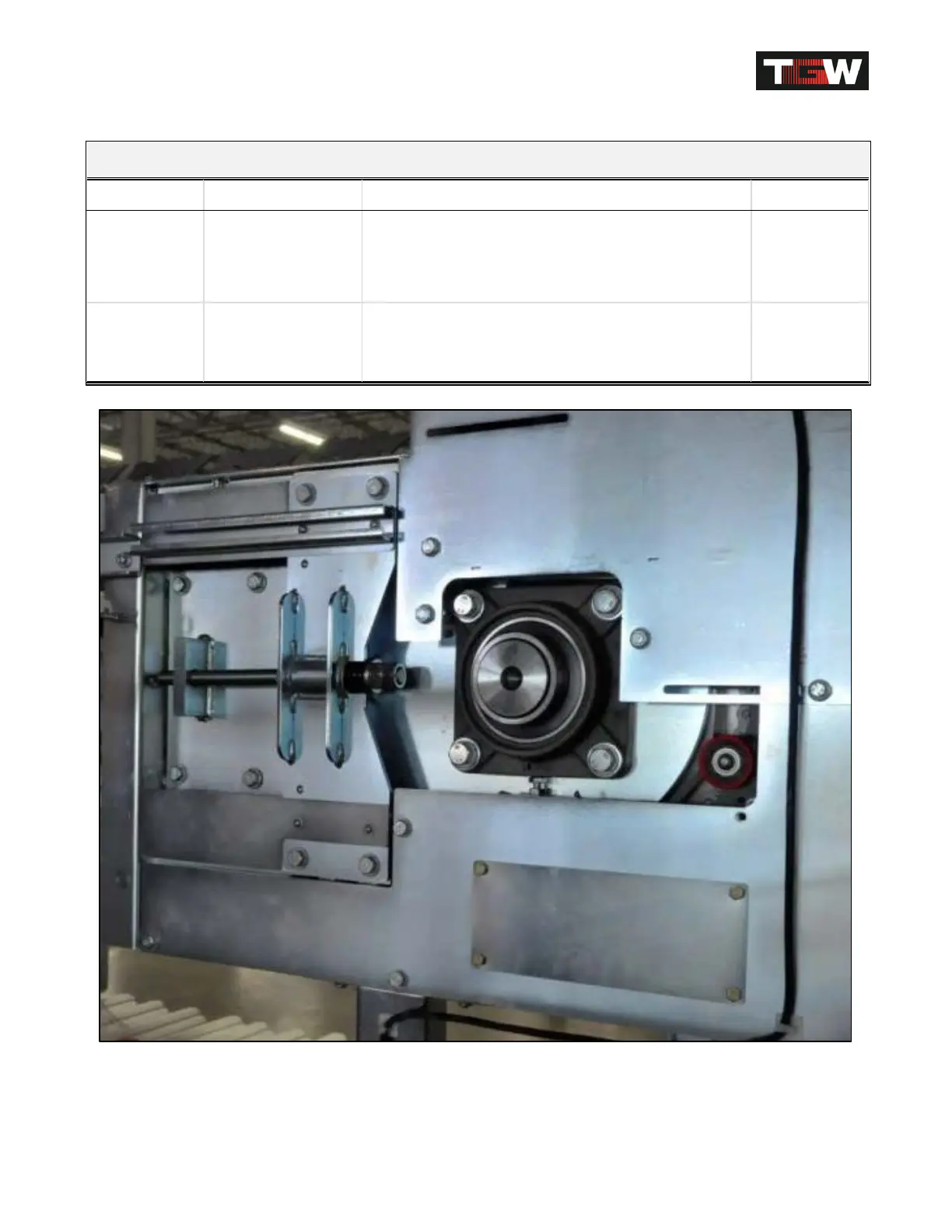

Tension Unit Replacement Parts

Balloon No. Item Description Identifier

4.2 00211201

PRESSURE SPRING D40 X D20 L=152 BLUE,

PRESS.SPRING D40 X D20 L=152 SMAX=65 MM

FMAX=3354 N BLUE

4.3 00014395 FLANGE BEARING UCF 216 GG QUAD B

Charge End - Chain Tensioning Unit Replacement Parts

Revision Date: 12/10/2014 Page 86 of 111
