Topcon GM-100 Series User Manual

95

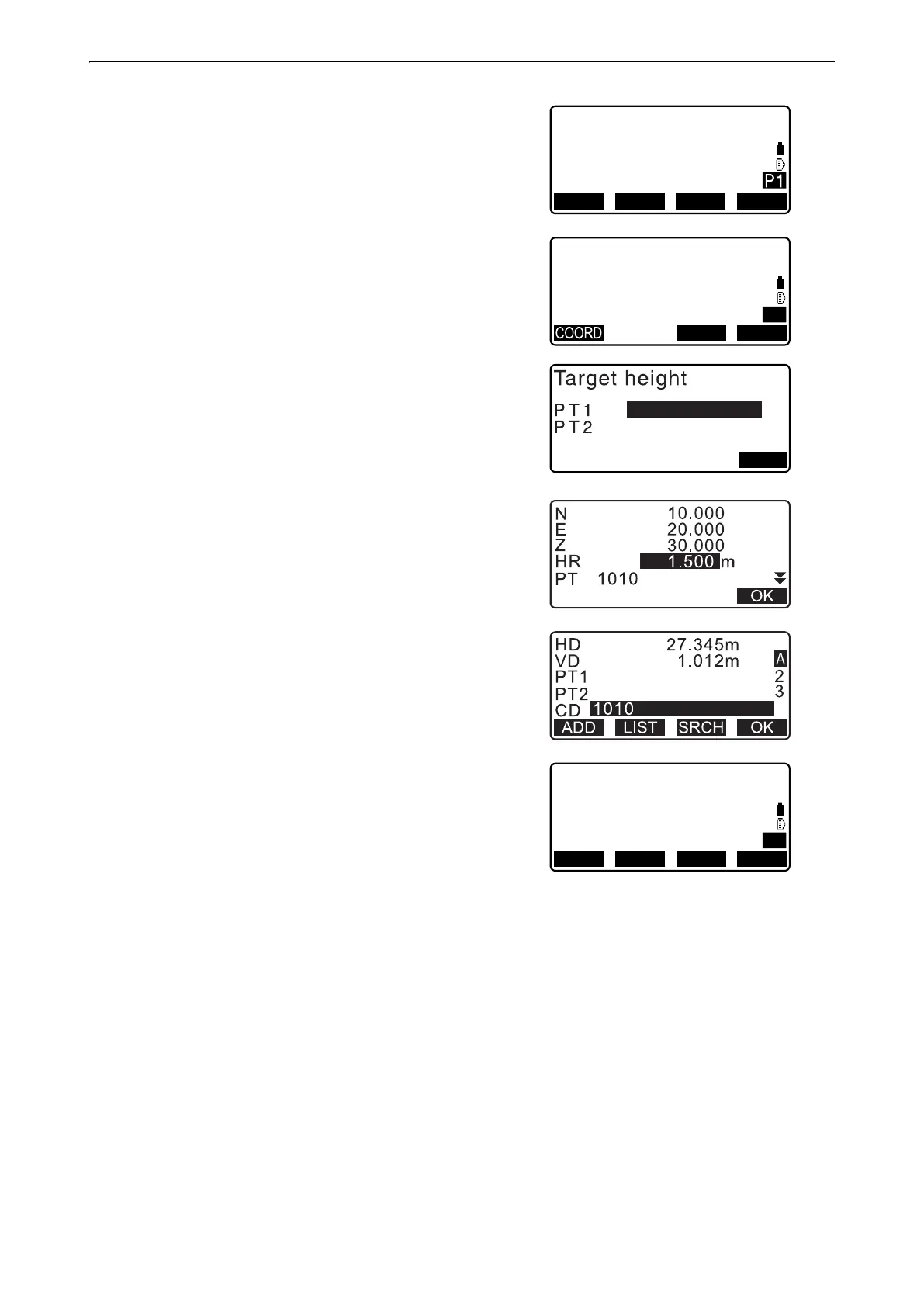

21. MISSING LINE MEASUREMENT
The following values are displayed:
SD: Slope distance of the starting position and 2nd target.
HD: Horizontal distance of the starting position and 2nd
position.
VD: Height difference of the starting position and 2nd target.
• Target height of the starting position and 2nd target can be
input.
Press [Tgt.h] on the second page.
Input the target heights and press [OK].
• Press [COORD] to input coordinates.
 "PROCEDURE Calculating from input coordinates"
• Pressing [REC] displays the screen shown in right.
Pressing [OK] records the measured results for the second
point.
Press [OK] to record missing line measurement results and
return to the results screen.
Press {ESC} to continue measurement without saving 2nd
target or missing line measurement results.

• Missing line measurement results cannot be recorded
when point names for 1st and/or 2nd target are null. Always
input point names for both targets.
4. Sight the next target and press [MLM] to begin observation.
Slope distance, horizontal distance and height difference
between multiple points and the starting position can be
measured this way.
• When [S/%] is pressed, the distance between two points
(S) is displayed as the gradient between two points.
• Press [MEAS] to re-observe the starting position. Sight the
starting position and press [MEAS].
MLM
SD
HD
VD
20.757m
27.345m
1.012m
RECMOVE MEAS MLM
MLM
Tgt.h
S/%
SD
HD
VD
20.757m
27.345m
1.012m
P2
OK
1.500 m
1.500 m
MLM
SD
HD
VD
20.757m
27.345m
1.012m
P1
RECMOVE MEAS MLM
