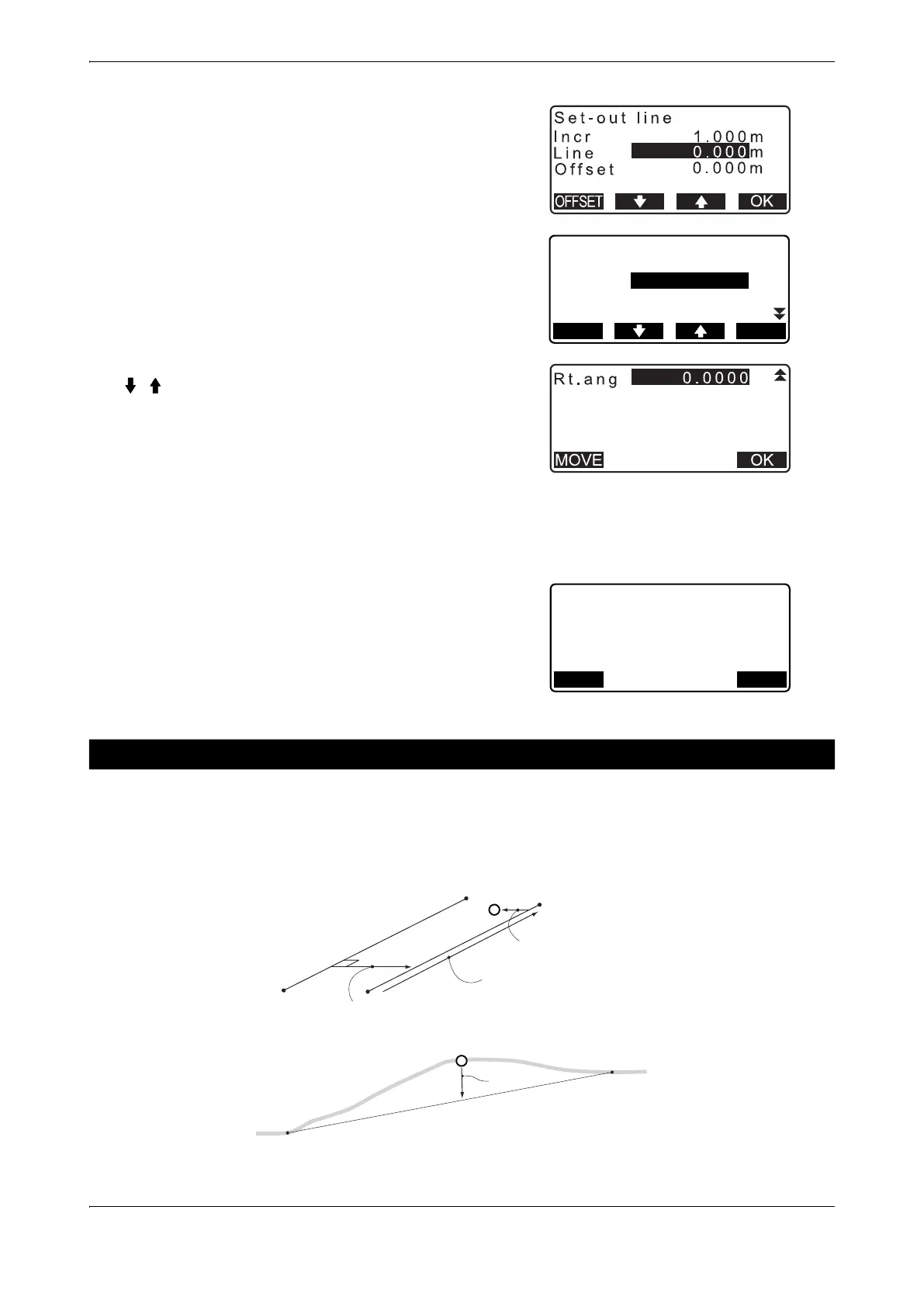

16. SETTING-OUT LINE
2. Press [OFFSET] to display <Baseline offset>.
3. Set the following items.
(1) Incr: Increment by which offsets can be decreased/
increased using the arrow softkeys.
(2) Length: Lengthwise offset
(3) Lateral: Lateral offset
(4) Height: Elevation offset
(5) Rt.ang: Rotation angle offset
• [ ]/[ ]: Press to decrease/increase the value by the
amount set in "Incr".
4. Press [OK] to return to the screen in step 2.
• [MOVE]: Permanently moves the baseline coordinates by
the amount set in <Baseline offset>.
5. Press [OK] on the screen of step 2. The coordinate value of
the required point is calculated, taking into account the
movement of the baseline, and displayed.
Setting-out line line measurement tells how far horizontally the measured point is from the baseline and how
far vertically the measured point is from the connected line. The baseline can be offset in a horizontal direction
if necessary.
• Before performing setting-out line line, the baseline must be defined.
PROCEDURE
16.3 Setting-out Line Line
B a s e l i n e o f f s e t
L e n g t h
L a t e r a l
0 . 0 0 0 m
I n c r 1 . 0 0 0 m
0 . 0 0 0 m
H e i g h t
0 . 0 0 0 m
MOVE OK
S e t - o u t l i n e
9.6 62
102 .48 2
N
E
Z
185 .67 5
REC S-O
Baseline
Measured Point
Offset (horizontal direction)
Offline (--)
Length
1st Pt.
2nd Pt.
Measured Point
Cut
Profile View
