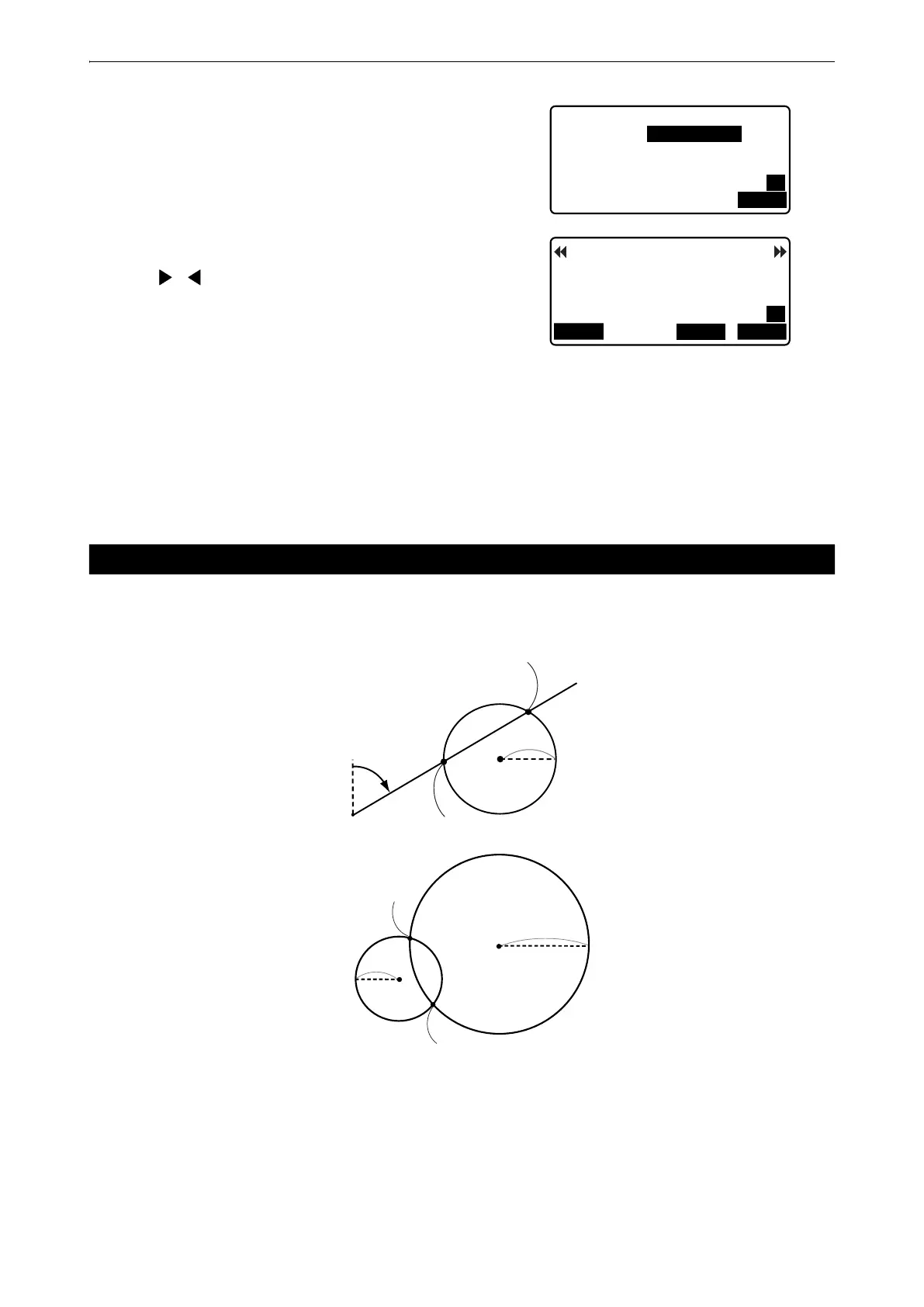

110
23. INTERSECTIONS
5. Input pitch and press [OK].
6. Coordinates for each calculated point are displayed on
consecutive screens. To switch between result screens,
press { }/{ }.
Press [OK] to return to the screen in step 3 and continue
measurement as necessary.
To quit measurement, press {ESC} in the screen of step 3.
Pitch input range: 0.001 to 999999.999 (m)
It is possible to find an intersection point between 2 reference points by specifying the length or azimuth angle
of either point.
23.2 Intersections (Type B)
OK
P1
3: Pitch
30. 000 m
Pitc h
N 3 4 5.67 8
E -8 7 6.54 3
OK
REC
P1
2/5
S-O
Intersection Pt.1
Intersection Pt.2
2nd Pt.
Azimuth 1
1st Pt.
Hdist 2
Intersection Pt. 1
2nd Pt.
1st Pt.
Hdist 2
Intersection
Pt. 2
Hdist 1
